Wireless Remote Relay Switch DC 12V-48V 24V 36V 2 Channel Multi-Function Remote Control Switch, 433Mhz Transmitter Receiver for Wireless Garage Door keypad Opener Switch 12V (2X Control 433M)
About this product
*【Wide Voltage】Wide rang voltage Universal range 12-48V AC or DC,can used low voltage control high voltage(12-48V Control 1V-250V)
*【Work model】Self-lock,Momentary,Inter-lock.can change it by yourself in relay switch Model button(press)
*【Convenience Use】The wireless signal can pass through walls, floors and doors You can turn on or turn off the receiver with transmitter(remote control) from any place within a reliable distance
*【 Wide Application 】Motor,Light,electric doors, windows, lifting equipment, gateways, lifters, industrial control and security industries.
*【Multi-function switch】 can be modified for multi-purpose circuit.Universal many Home or Industry in Circuit product,No wiring required,easy install the switch control the electric circuit,The switch receiver wired between power and electric appliance.
Description
?Item Features?:

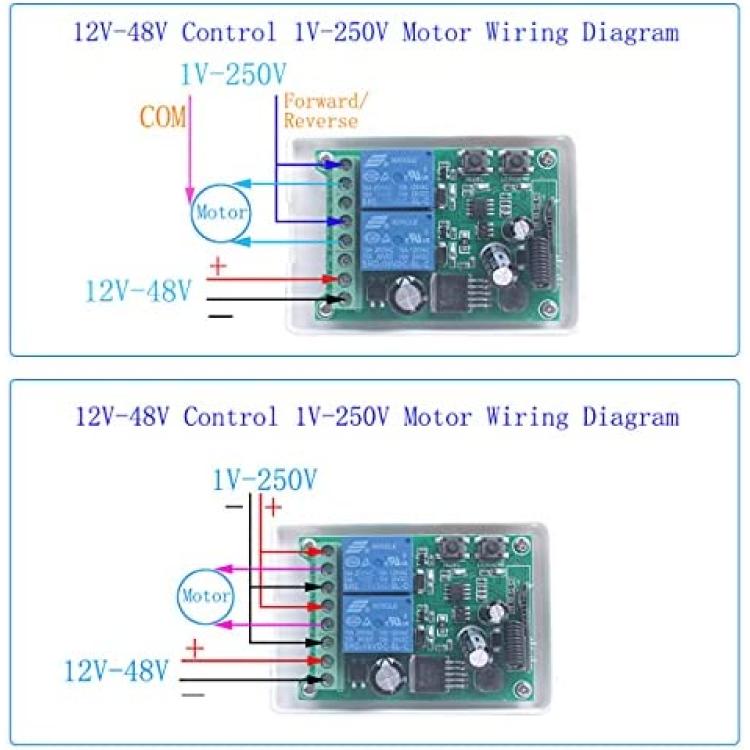

Application:The switch can Universal 12V-48V,can used low voltage control high voltage(12-48V Control 1V-250V), garage?Motor,Light,electric doors, windows, lifting equipment, gateways, lifters, industrial control and security industries.Learn code control,high confidentiality.it convenient to Wireless control and connector,Reduce wiring diagram engineering
?Descriptions?:
1.Remote Transmitter
Channel: 2 CH
Remote Control Distance: 0-50m
Encode: Learn Code,Fixed code, soldering
Frequency:433MHz
Power Supply: 2016 Button Battery
2? Control Model?:
Control Types:
1.Toggle/Self-Lock: Press->On; Press again->Off. press one button for one time is working/ON .press the same button again is stop/OFF .
2.Latched/Inter-Lock: Press->On; Press other button->Off. press one button is working/ON ,press another button is stop/OFF .
3.Momentary/Jog: Press and hold->On; Release->Off. (Factory Original Setting is Momentary,other work model Change it by yourself.or email us help you set)
Decode: Learning code
Power Supply (Operating Voltage): DC 12V-48V,12V 24V 36V 48V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC,10A 1V-280V
Work Voltage Range of Relay: 10A 1V-250V,AC 110-240V or DC 0-28V (Not receiver)
sensitivity:-105 dBm
Operating Temperature:-40'C~+80'C
?Learn Code and Delete control code?
1. Add remote controller: Connector the switch to 24V..,Press Switch learn button 1-3 second,after press controller tismitter button,the relay will be ON or OFF
2.Remove controller: Connector the switch to 24V,Press the learning button for more 8 seconds, till light turns on to off,

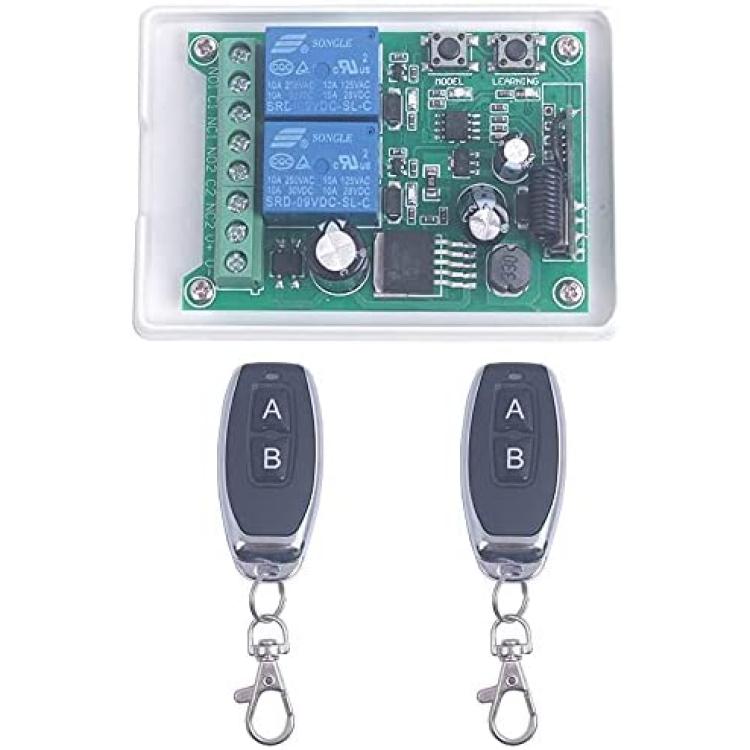

?Package?:
2 x Remote Control Transmitter (Battery include)
1 x 12V-48V 2CH Switch Receiver
