DC 12V Wireless Remote Switch 4 Channel 433Mhz RF White Remote Control with Wireless 4 Relay Receiver, 12V Multifunction Switch for LED Motor Widely Used
About this product
*【Easy to Use 】 Wireless control, easy to install，We have made transmitter and receiver working together and test it before ship ,when you get it dont need to do anything ,just install it. The wireless receiving controller, with high confidentiality, stable performance, easy to change working model by jumper.
*【Product parameters】Working voltage: DC12V ；Working frequency: 433mhz；Max load current: 10A（Output current: Less than 8A）；Size: 7.2 x 5.2 x 2.6cm

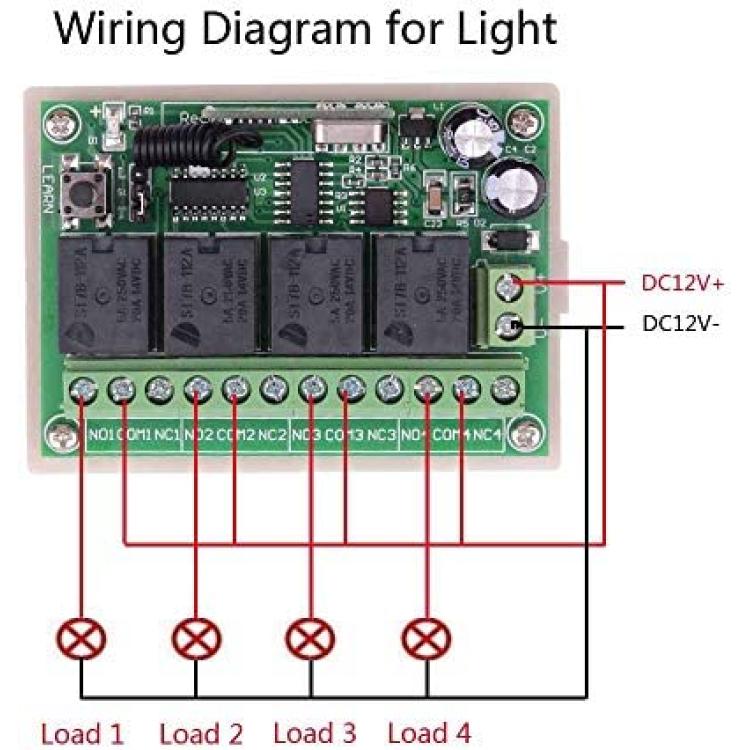

*【Widely Use】the wireless remote control switch can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances, Widely Used in Homes and Industries.white color remote control with big button is comfortable
*【Signal】Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 164ft/50m with no obstacle).
*Extremely easy to setup, learn, relearn and control. Stable and reliable performance, high receive sensitivity.Configuration of 2 remote controls,more flexible use.
Description

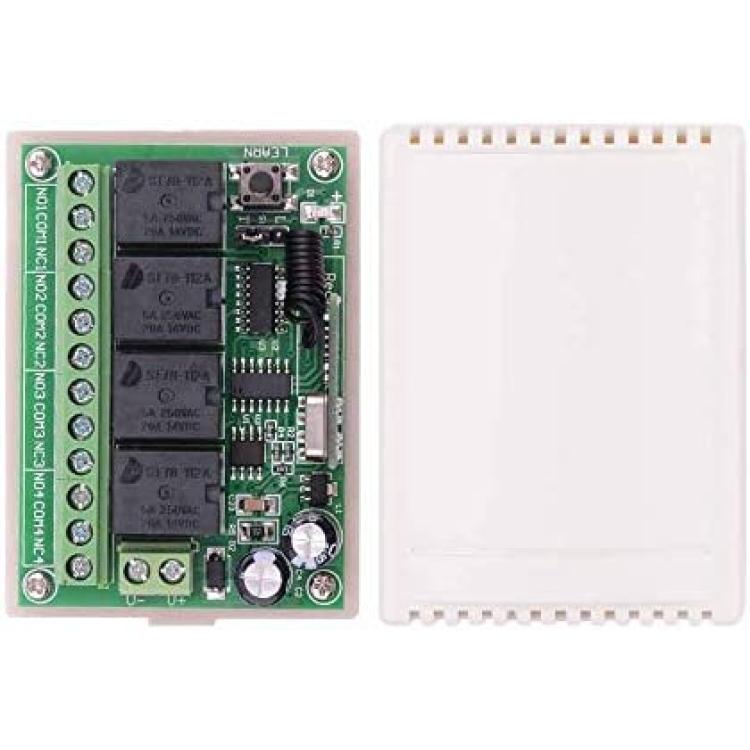

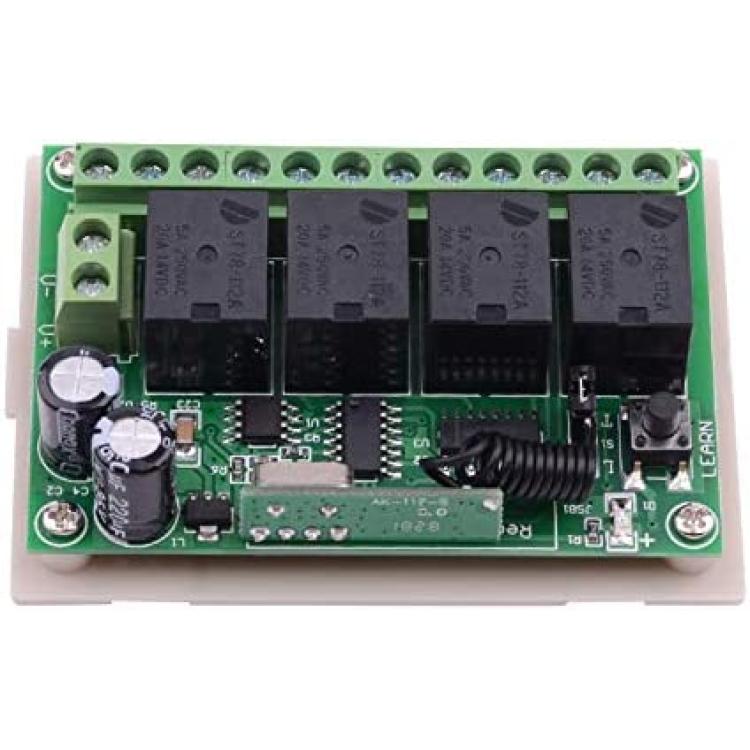

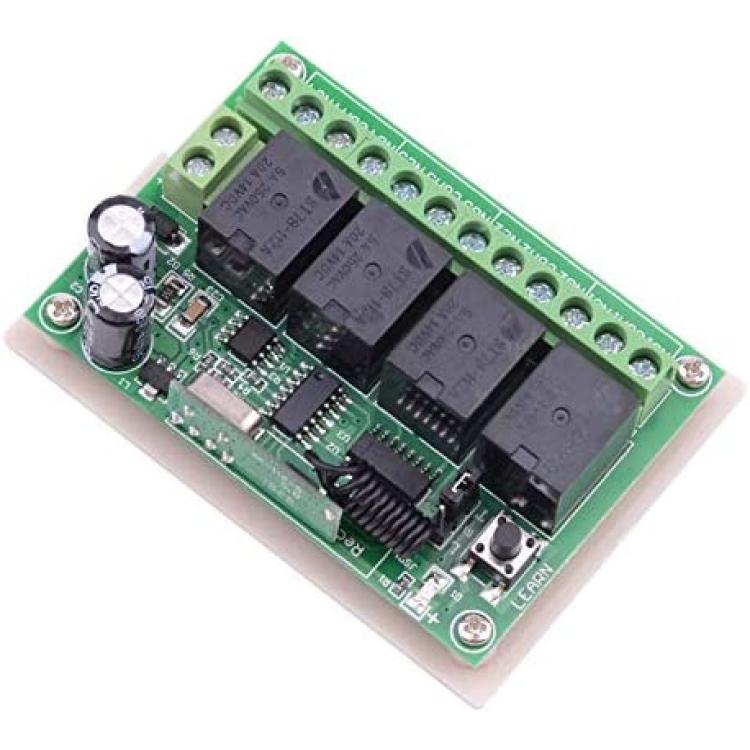

About Receiver:
Model No.: AK-RK04S-12-B
1. Working voltage: DC12V
2. Quiescent condition: Less than 6mA
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Output voltage: DC and AC is optional
7. Output current: Less than 3A
8. Max load current: 20A
9. Size: 7.2 x 5.2 x 2.6cm
About Working way:
Working way changed by jumper on pins
Momentary: jumper doesn't connect any two pins.
Relay: Press and hold -> On; Release -> Off.
Toggle: jumper connects the pin T and pin S.
Relay: Press -> On; Press same button again -> Off
Latched: jumper connects the pin L and pin S.
Relay: Press -> On; Press other button -> Off.
About Learning and clearing Method:
Learning: Press learning button, the indicator OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.
Clearning: Hold press learning button about 8 seconds,,indicator from OFF to ON,then press remote ,Relay did not Respond ,it means clearning code successful.
About Transmitter:
Buttons: 4 Buttons
Working Voltage:DC12V (1PCS 27A)
Operating frequency :433MHz
Remote Distance: 20-50M
Operating Current: 13 mAh
Encode: Fixed code / EV1527 code

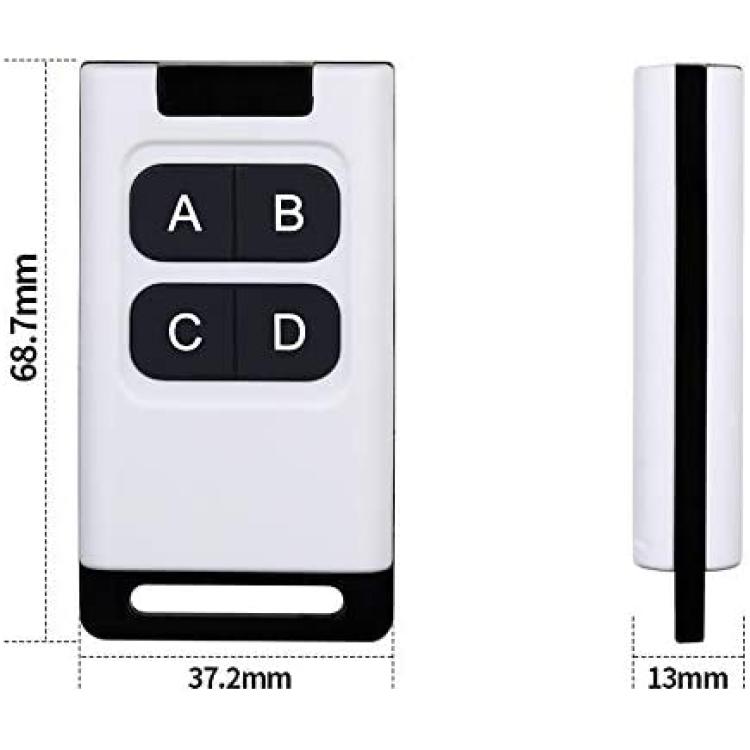

Size: 6.9 x 3.7 x 1.3cm

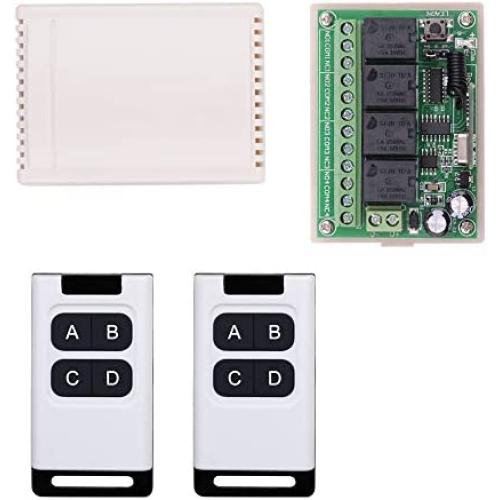

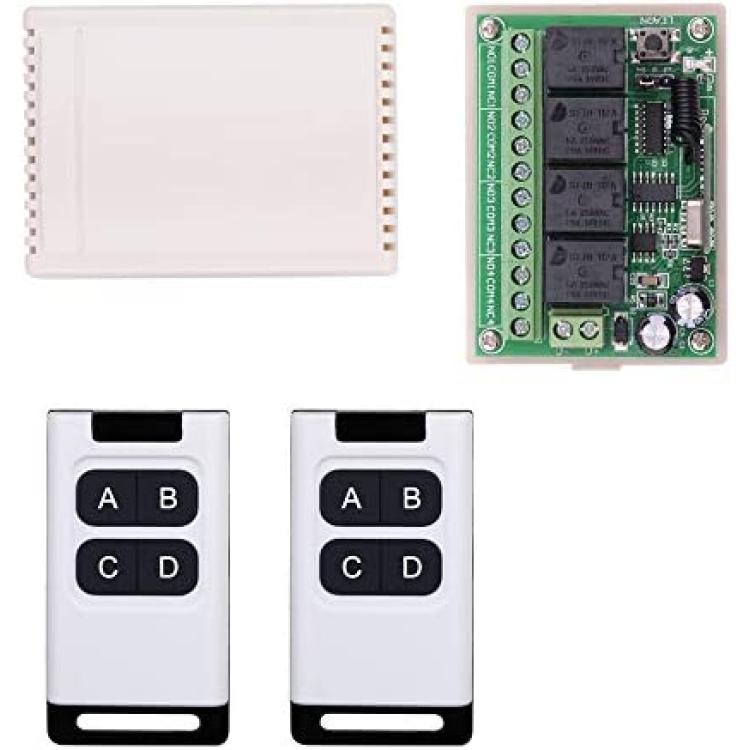

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual
