12V - 36V New Custom Wireless Remote Control Switch Secure 2 CH Remote Relay, 433Mhz RF Relay Motor Remote Control Garage Door Remote Opener Transmitter with Receiver
About this product
*【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,when you get it dont need to do anything ,just install it. 【2 Channel for Wireless Control 】the remote switch is a learning switch, One/several transmitters can control one/several receivers simultaneously.They do not interfere with each other. (Notice: Max Load: 10A Relay, have better load less than 5A)

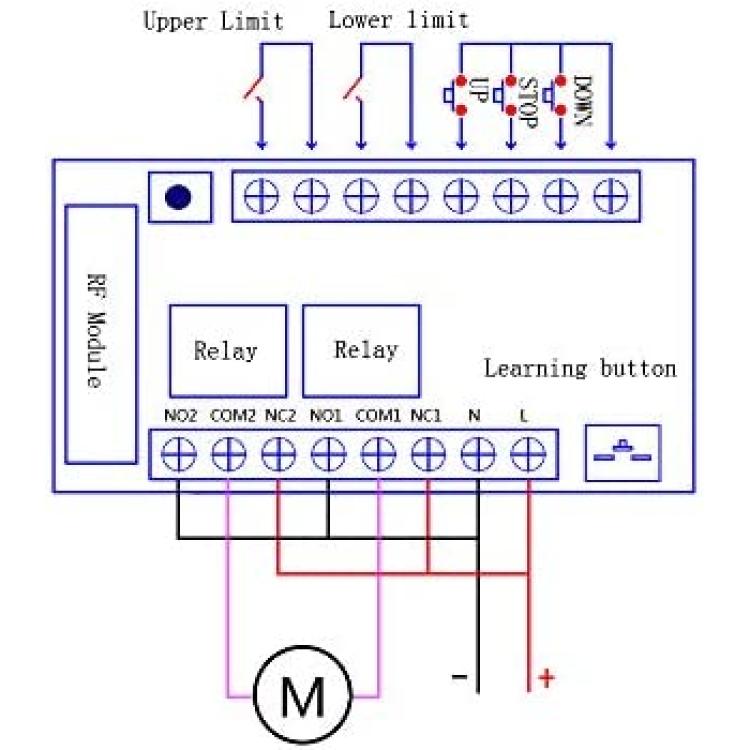

*【Application】It is a new type of intelligent switch, the main function of this set of controller is to control the Forward Stop Reverse rotation of the AC motor, The wireless remote control switch can control one or more devices in the room. widely used in remote water pump switches, motor, Electric curtain machine, wireless remote control machine switches, wireless remote control sockets,lifting equipment, wireless lamps, window, entrance, Garage Doors，various types of wireless home appliances
*【Easy & Convenience】The Receiver power supply is DC 12V--36V, The default output is signal switch.Receiver With special limit switch and manual control button wiring port. Out State: Momentary Latched Adjusted by the Jumper on the Receiver, ( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver )
*【SIGNAL Stability】the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 30--50 meters with no obstacle.
*Receiving sensitivity: -105dBM ，This product uses high-frequency technology with stable signal. They do not interfere with each other. When the receiver output state is “Latched”, we have set it 0.5s time delay for forwards and reverse, it is the Protection function
Description
Working Voltage: DC 12V-36V
Working Frequency: 433Mhz
Receiving sensitivity: -105dBM
Max Load: 10A Relay ( have better load less than 5A)

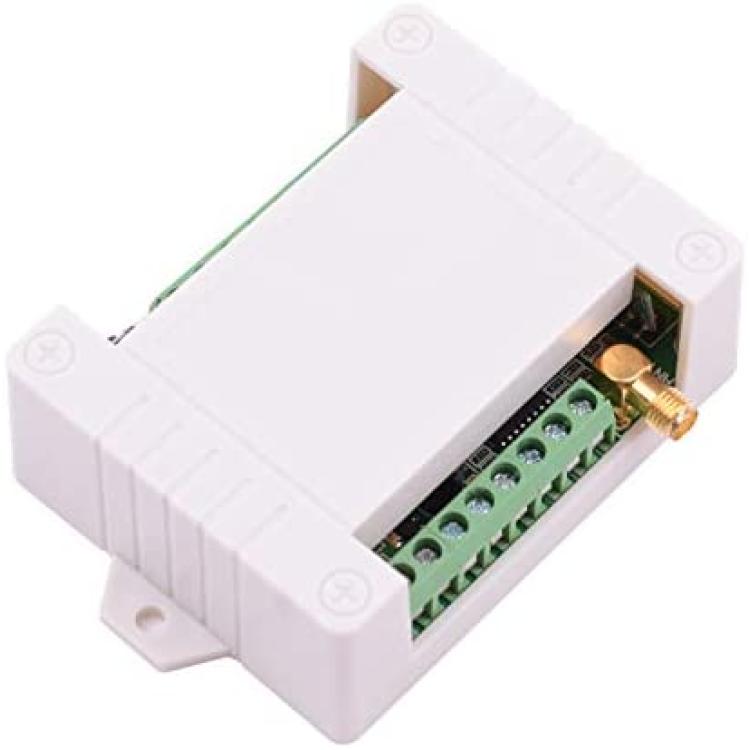

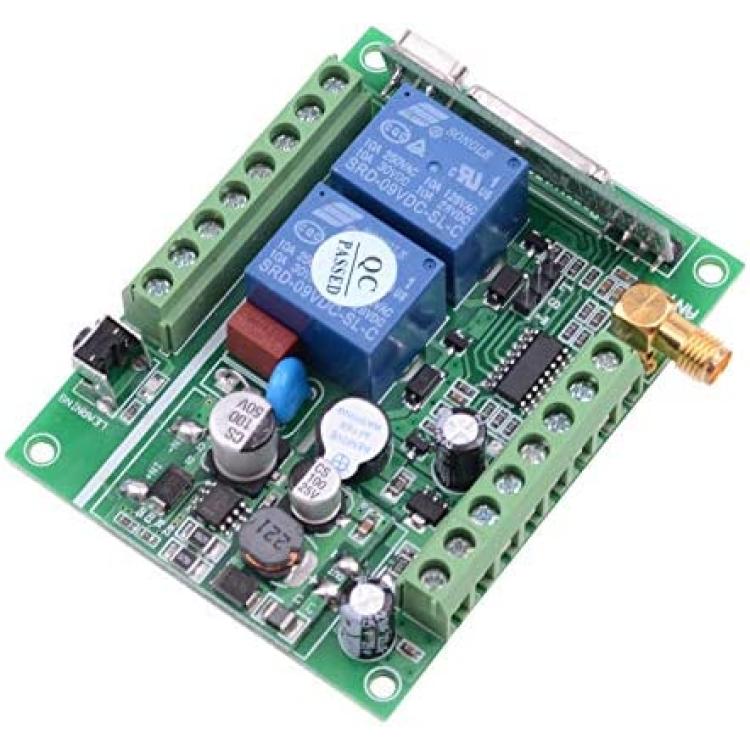

PCB Size:75*58*15mm Case Size :95*62*29mm

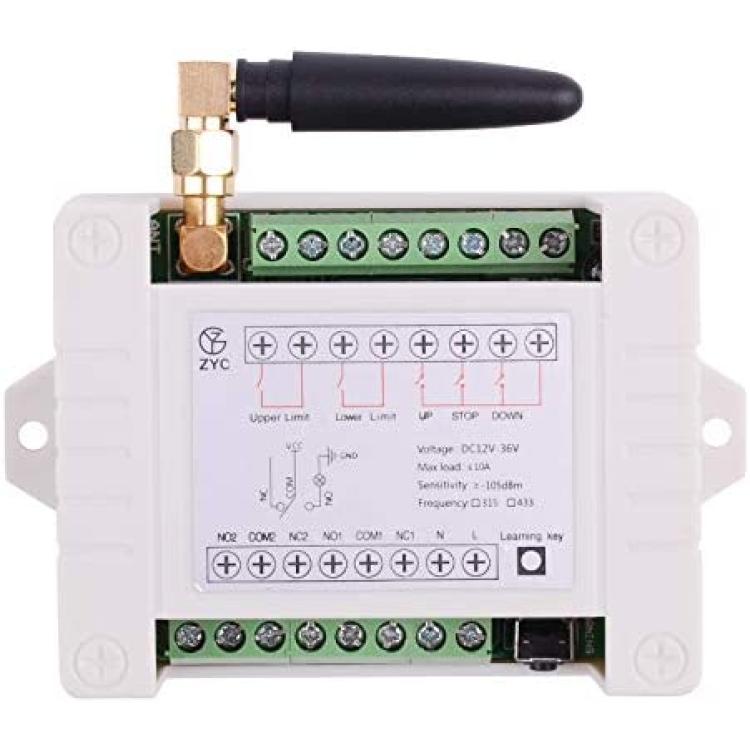

Function: Limit & Wire External Button
Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)
Out State: Momentary Latched Adjusted by the Jumper on the Receiver( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver)
Working way changed by jumper on pins
Momentary: jumper doesn't connect any two pins.
Relay: Press and hold -> On; Release -> Off.
Toggle: jumper connects the pin T and pin S.
Relay: Press -> On; Press same button again -> Off
Latched: jumper connects the pin L and pin S.
Relay: Press -> On; Press other button -> Off.
When the relay is activated, the buzzer synchronize with a “beep” prompt.
When the receiver output state is “Latched”, we have set it 0.5s time delay for forwards and reverse, it is the Protection function.
We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
Learning Code :
Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up (first button default for forward) ,the learning indicator flash 5 times and OFF,It mean the first button learning Successfully
Press the learning button for 2 times,the learning indicator flashes slowly,Then press the transmitter button down (second button default for forward) ,the learning indicator flash 5 times and OFF,It mean the second button learning Successfully (Third button default for stop ,When the jumper set for Latched)

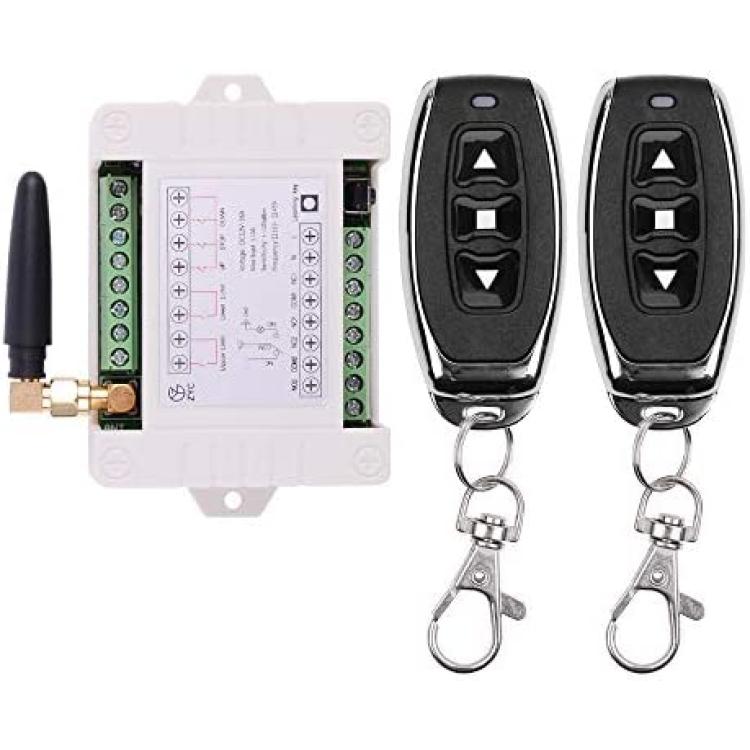

Package: 1pcs Receiver + 2pcs Transmitter (not included Limited Switches and others fittings)
