Remote Control Switch,DC 12V/24V/48V/40A Relay Wireless Light Switch 12V-48V Wide Voltage for Anti-Theft Alarms Garage Door Motor 433Mhz Transmitter and Receiver (2X Control 433MHz)
Description
used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,Door,Motor Car... and other 12-48V Power.. it can used for 12-48V Relay Module.....
Specification:
Working Voltage: 12V 24V 36V 48V 12-48V
Working Frequency: 433MHz
Max Current: 40A
Contact Capacity: 40A/250VAC; 40A/30VDC
Operating Temperature: -40'C~+80'C

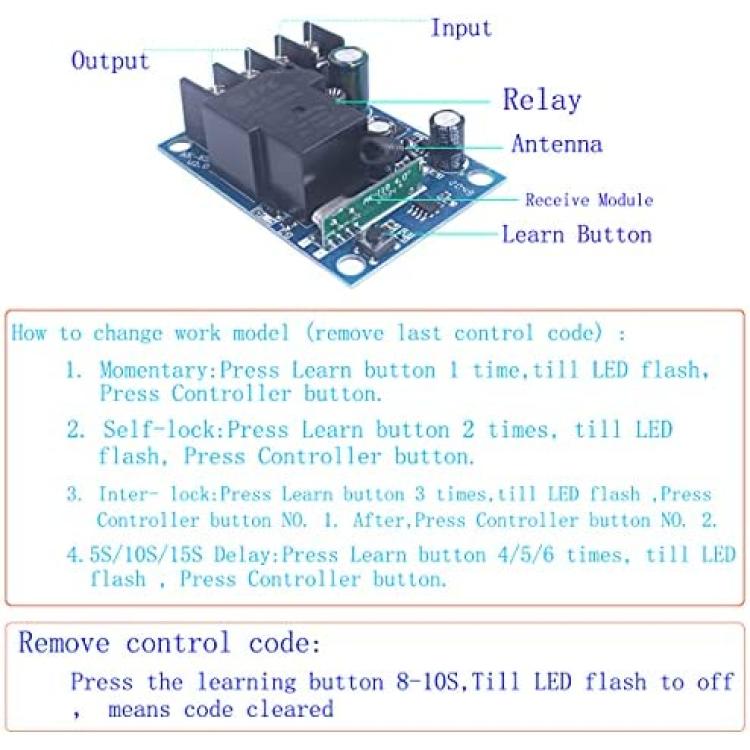

Output State: Momentary/Toggle/Latched adjusted freely by the Jumper on the receiver.
Code: Learning code
Working Model /output way:
1. Jog/momentray: Press one button is Working /ON. Loosen button is Stop/OFF.
2.Self -lock/Self-Latched: Press button is working/ON. Press the same button again is stop/OFF.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF.
Add remote control method
1 Connector the switch to 12-48V, press learn buttontill the switch, after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.
Remove Remote control: Connector the switch to 12-48V , Press the learning button for about 8-10s till the LED off, The control code will be deleted.

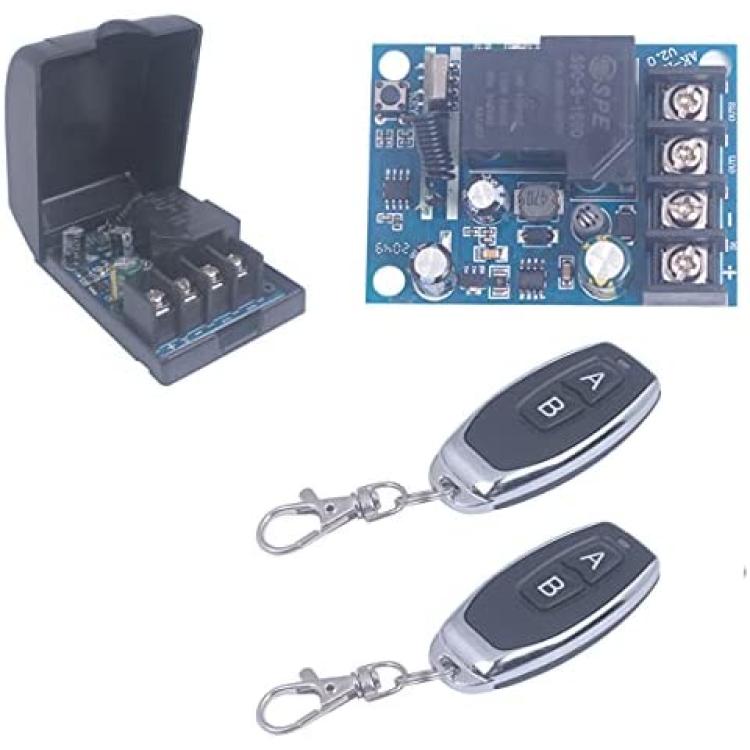

Package:
2X Wireless remote transmitter ( 2016 Battery included)
1X Receivers (With cover)
