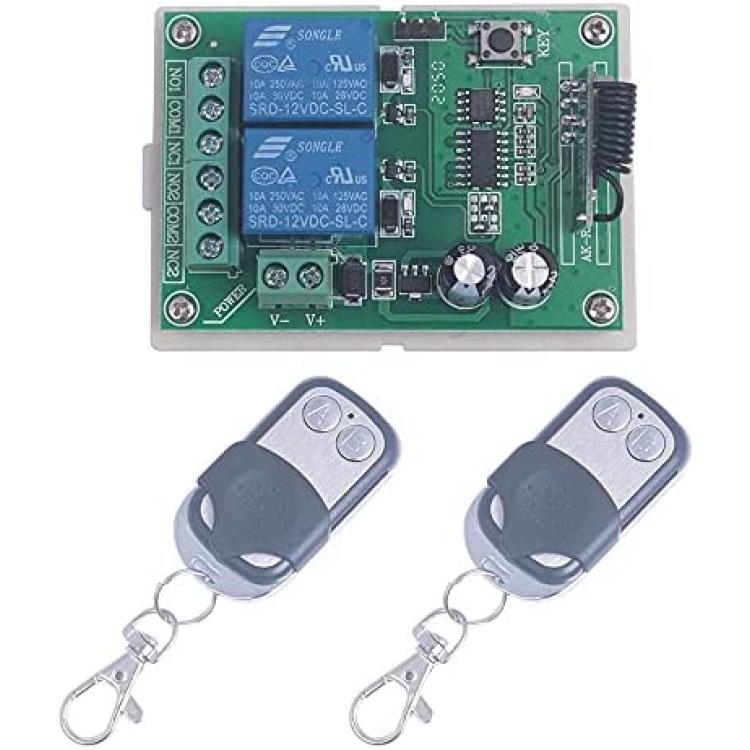

433Mhz Wireless Switch DC 12V 2CH Wireless Remote Control Switch, DC12V Relay Receiver Module, Transmitter Toggle ON Off Relay 433MHz (2X Remote Control 433MHz)
Description
Switch Features:
Description?
1.Transmitter
Channel: 2 CH
Remote Control Distance: Control distance: 50 meter(open/ideal) in theory, 10%-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, soldering
Frequency: 433
Size: 68mm x 48mm x 15mm
Power Supply: 1 X 12V/23A
2.Control Mode:
Decode: Learning code
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V (Not receiver)
sensitivity:-105 dBm
Operating Temperature:-40'C~+80'C

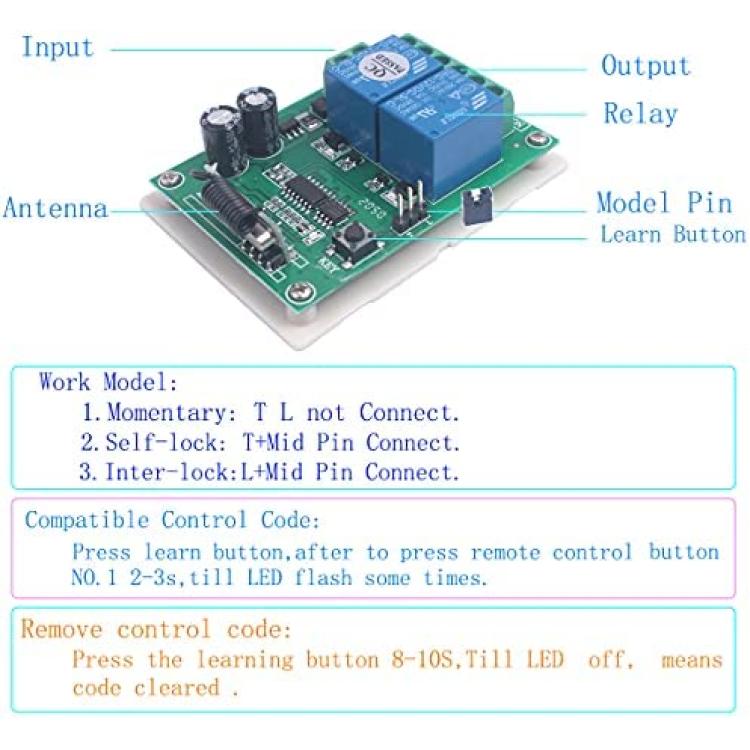

3.Learn code and Remove Code
1. Learn:press the learning code .the indicator from on to off ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .it can learn more than 12 PCS 2260/2262/1527 chip with the different code wireless remote control.
2.Remove :press the learning button about 8 seconds , the indicator turn on to off , it means the Code had been removed successfully.
Package:
2 x Transmitter (Battery include)
1 x Receiver
1X Manual
