Remote Control Switch DC 12V 30A Relay Wireless Control Switch, 433Mhz Remote Transmitter and Receiver Long Range Latching Switch for Electric Doors, Motor, Wireless Controller and Other Fields
About this product
*【Easy to Use 】the Working voltage: DC12V-48V (DC 12V 24V 36V 48V ). We have made transmitter and receiver working together and test it before ship it,when you get it dont need to do anything ,just install it.( We send Latched mode,that is press the button "on" is working/ON , press the button "off" is stop/OFF )
*【Widely Use】This remote switch used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, windows,lifting equipment, electric doors, wireless door alarm,security industry machine , wireless controller, and other fields
*【Signal】Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 164ft/50m with no obstacle).
*【Learning code】 the Learning code has high-level security for its low repetitive rate and re-learn mode, it can delete the old code and re-learn a new code,when a remote control get lost,So you could always control of it.

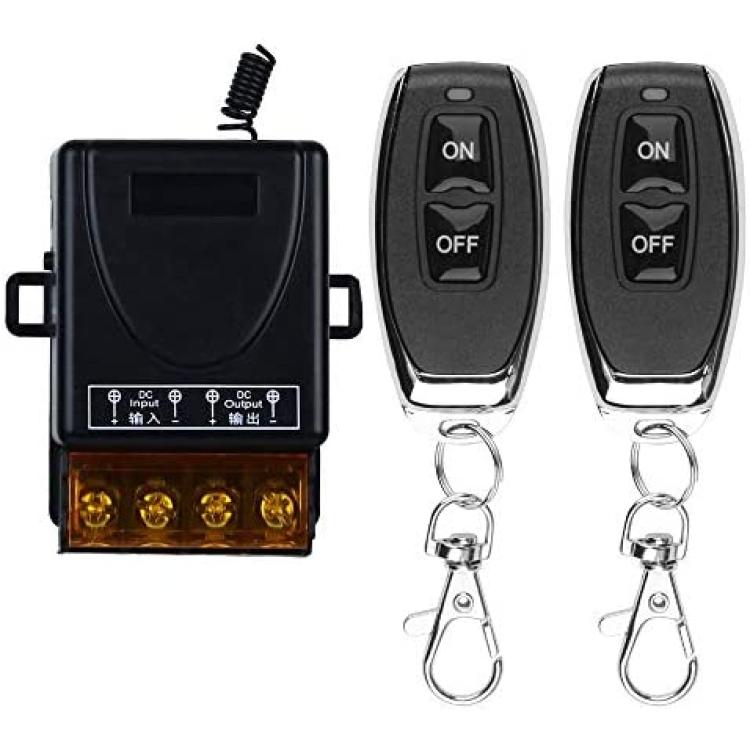

*the Package Include: 1 x Remote Switch , 2 x Remote Controls, 1 x Manual . as a seller of integrity, customer satisfaction is our lifelong pursuit, If you have any questions, you can contact us by email .we will be patiently waiting for your questions and very happy to help you solve the problem. What worries me the most is that you dont want to communicate with me. Wishing you a pleasant shopping trip
Description

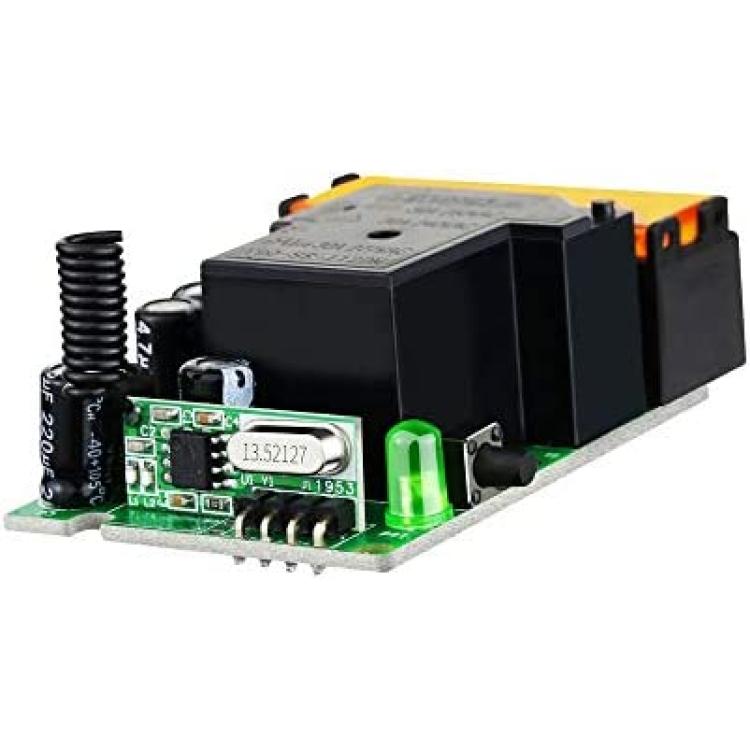

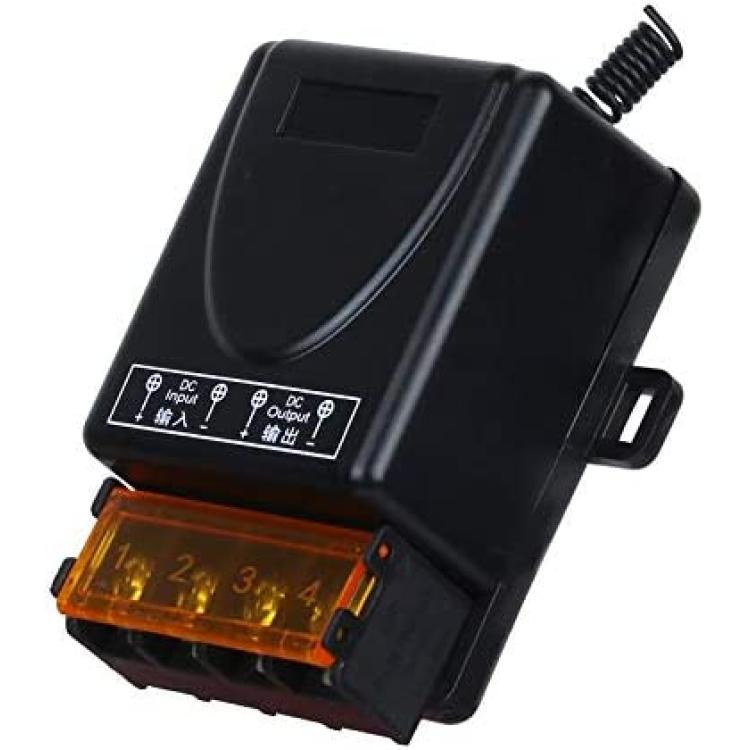

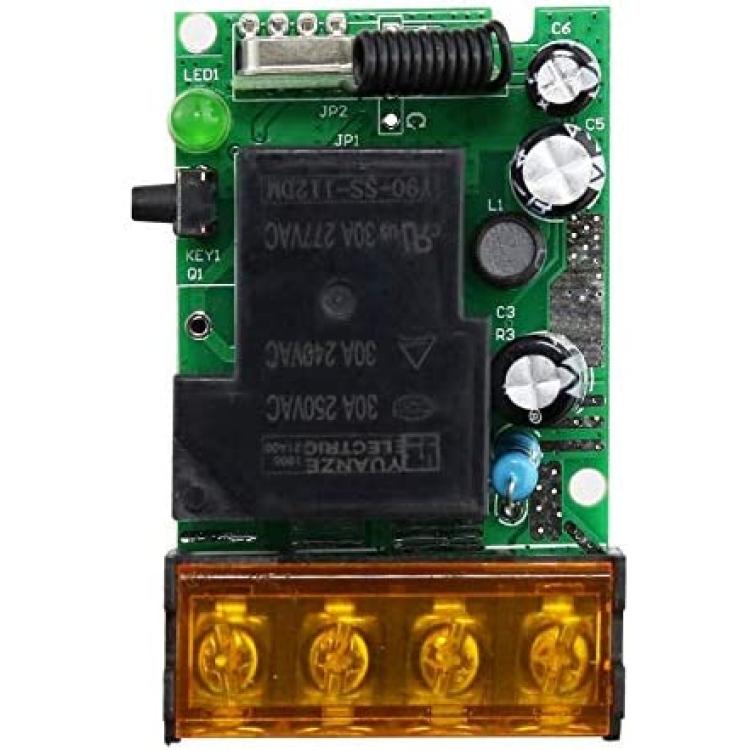

About Receiver:
Working voltage: DC12V-48V
Quiescent condition: Less than 8mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: Input=output
Max load current: 30A

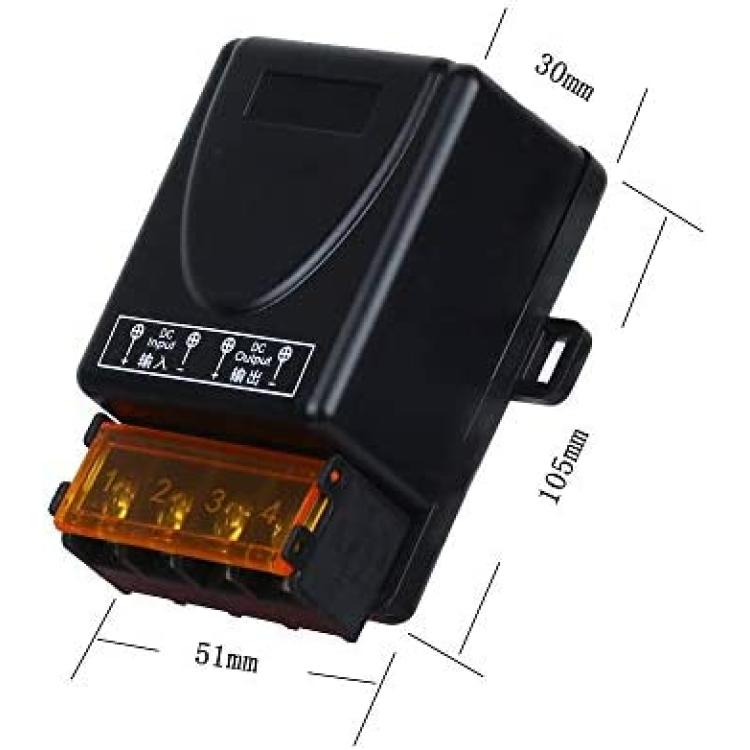

Size: 105 x51 x 30mm
About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out.
Learning Method : Input 12V for the Receiver
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning Method: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
About Transmitter:
Buttons: 2 Buttons
Remote Distance: 20-50M
Operating Current: 13 mAh
Encode: Fixed code / EV1527 code
