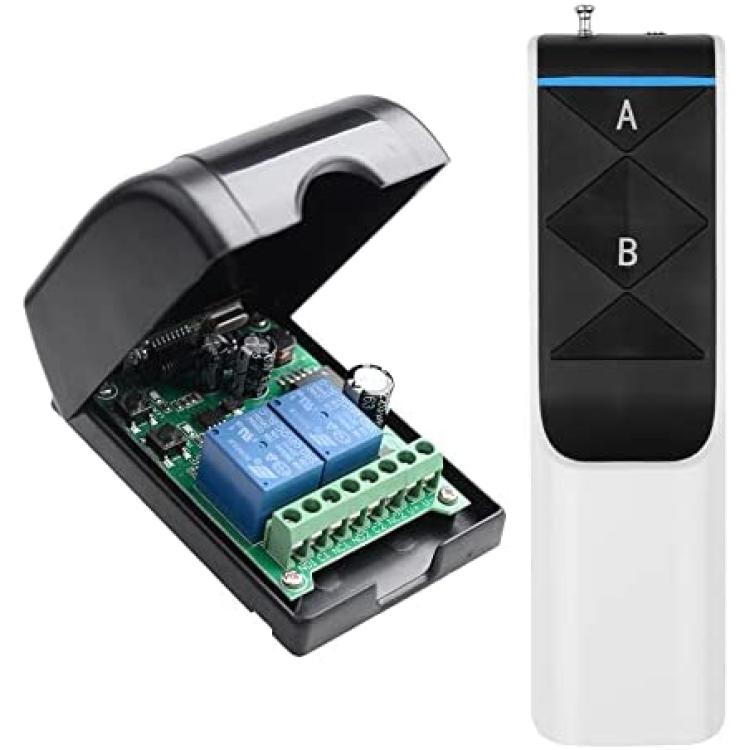

ZABLL 12V Wireless Remote Control Switch 2-Channel 433Mhz Remote Relay Switch 4000ft Long Range Transmitter for Garage Door, Household Appliances and More Application
About this product
*【Easy to Use 】 Wireless control, easy to install，We have made transmitter and receiver working together and test it before ship ,when you get it dont need to do anything ,just install it. The wireless receiving controller, with high confidentiality, stable performance, easy to change working model by model button.
*【Product parameters】Working voltage: DC12V-48V ；Working frequency: 433mhz；Max load current: 10A（Output current: Less than 8A）；Size: 3.35*2.24*1.02inch
*【Widely Use】 Used in anti-theft alarm control panels, home automation systems, short and long range turn devices on / off wirelessly, lifts, boats, marine, winches, motor-driven curtain, roller blinds, overhead garage door & gate barriers, motorcycles, vehicles, cars, truck, industrial and agricultural electrical control such as water pumps & sprayer, electric door release locks, windows, manual switches extender, LED lighting lamp bulbs and strips, entrance and access control etc.
*【Signal】Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 1500M with no obstacle).
*【Easy to Use 】 Wireless control, easy to install，We have made transmitter and receiver working together and test it before ship ,when you get it dont need to do anything ,just install it. The wireless receiving controller, with high confidentiality, stable performance, easy to change working model by model button.
Description
About Receiver:
Working voltage: DC12V-48V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: DC and AC is optional
Output current: Less than 8A
Max load current: 10A
Size:3.35*2.24*1.02inch
About Working way:
Working way changed by Model button
1.Momentary: press model button 1 time.
Relay: Press and hold -> On; Release -> Off.
2.Toggle: press model button 3 time.
Relay: Press -> On; Press same button again -> Off
3.Latched: press model button 2 times.
Relay: Press -> On; Press other button -> Off.
Delay 5 seconds: press model button 4 times
Press remote control A button, the relay A actuates and keeps working 5 seconds. The same as relay B .
About Learning and clearing Method:
Learning: Learning: press learning button 1 time ,the LED indicator flash then press the transmitter button A , LED indicator flsah 3 times and off ,button A learning successfully.
press learning button 2 times ,the LED indicator flash then press the transmitter button B ,LED indicator flsah 3 times and off ,button B learning successfully.
Clearning: Hold press learning button about 8 seconds,,indicator from ON to OFF,then press remote ,Relay did not Respond ,it means clearning code successful.
About Transmitter:
2.Working Voltage:DC9V (1PCS 6F22)
3.Operating frequency :433MHz
4.Remote Distance: 500-1500M
5.Transmit Power: >1.5W
6.Encode: EV1527 code
7.Modulation:ASK
8.Size: 162*43*25MM
Package Includes
1 x Transmitters
1 x Receiver
