DC 12V 24V 36V 48V Wide Voltage RF Wireless Remote Light Switch 2 Channel 433Mhz Wireless Receiver with Transmitter, 12-48V Momentary 10A Relay Switch for Widely Used Home Smart
About this product
*【Product parameters】Working voltage: DC12V-48V ；Working frequency: 433mhz；Max load current: 10A（Output current: Less than 8A）；Size: 3.35*2.24*1.02inch
*【Easy to Use 】 Wireless control, easy to install，We have made transmitter and receiver working together and test it before ship it,when you get it dont need to do anything ,just install it. The wireless receiver controller, with high confidentiality, stable performance, easy to change working model.
*【Widely Use】#the wireless remote control switch can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances, Widely Used in Homes and Industries
*【Signal】Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 164ft/50m with no obstacle).
*【2CH for More Control】2 Channel Wireless Remote Switch，Adjustable working way, control equipment Momentary, Toggle，Latched，Delay 5 seconds
Description

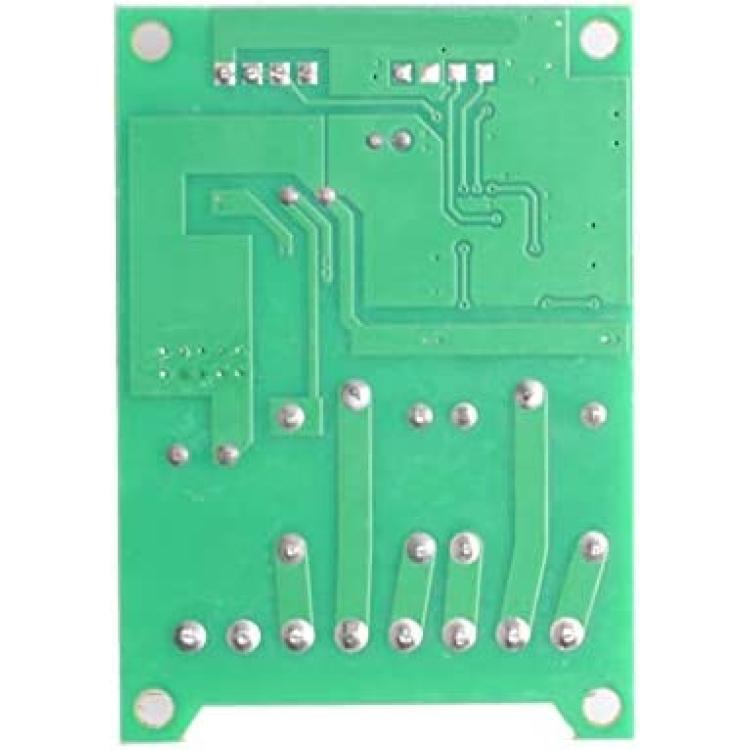

About Receiver:
Working voltage: DC12V-48V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: DC and AC is optional
Output current: Less than 8A
Max load current: 10A
Size:3.35*2.24*1.02inch
About Working way:
Working way changed by Model button
1.Momentary: press model button 1 time.
Relay: Press and hold -> On; Release -> Off.
2.Toggle: press model button 3 time.
Relay: Press -> On; Press same button again -> Off
3.Latched: press model button 2 times.
Relay: Press -> On; Press other button -> Off.
Delay 5 seconds: press model button 4 times
Press remote control A button, the relay A actuates and keeps working 5 seconds. The same as relay B .
About Learning and clearing Method:
Learning: Learning: press learning button 1 time ,the LED indicator flash then press the transmitter button A , LED indicator flsah 3 times and off ,button A learning successfully.
press learning button 2 times ,the LED indicator flash then press the transmitter button B ,LED indicator flsah 3 times and off ,button B learning successfully.
Clearning: Hold press learning button about 8 seconds,,indicator from ON to OFF,then press remote ,Relay did not Respond ,it means clearning code successful.
About Transmitter:
2.Working Voltage:DC6V (2PCS CR2016)
3.Operating frequency :433MHz
4.Remote Distance: 20-50M
5.Operating Current: 13 mAh
6.Encode: EV1527 code
7.Size: 5.7 x 3.2 x 1.1cm

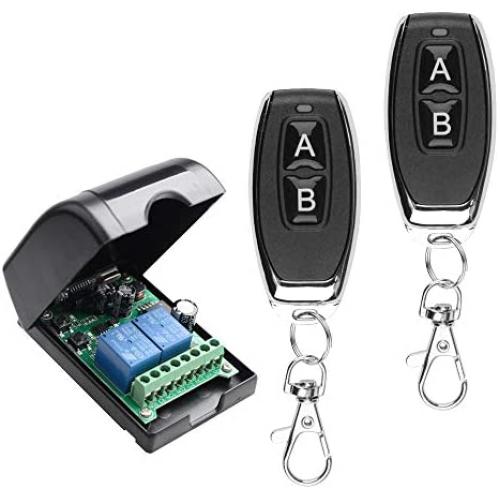

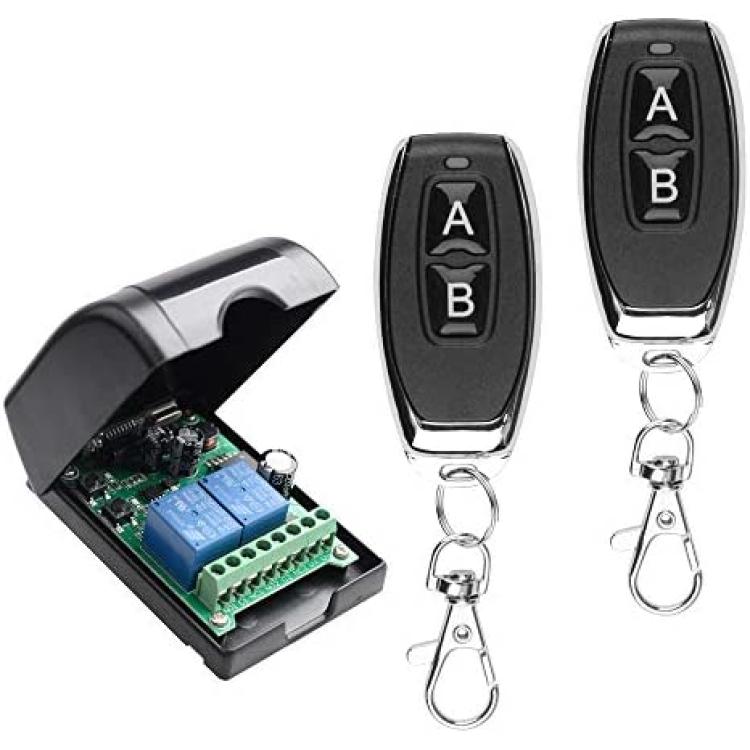

Package Includes
2 x Transmitters
1 x Receiver
