DC 12V 24V 36V 48V Wireless Remote Switch,30A Relay RF Remote Control Light Switches for Motor Pump Security Systems etc with 2PCS Transmitter (Black)
About this product
*【Easy to Use 】 Learning code has high-level security for its low repetitive rate and re-learn mode, it can delete the old code and re-learn a new code,when a remote control get lost,So you could always control of it.
*【Product parameters】Working voltage: DC12-48V ；Working frequency: 433mhz；Max load current: 30A which can load high-power electrical appliances to ensure long-term stability control；Size: 105 x 51 x 30mm ，Momentary ,Toggle ，latched ，Delay time Adjustable
*【Widely Use】Adopts RF technology ,it can pass through walls, floors and doors, control receiver from any place within a reliable distance.Max range is up to 328ft with no obstacle.
*【Signal】Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 164ft/50m with no obstacle).
*This remote switch used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, wireless door alarm, wireless controller, etc.)
Description

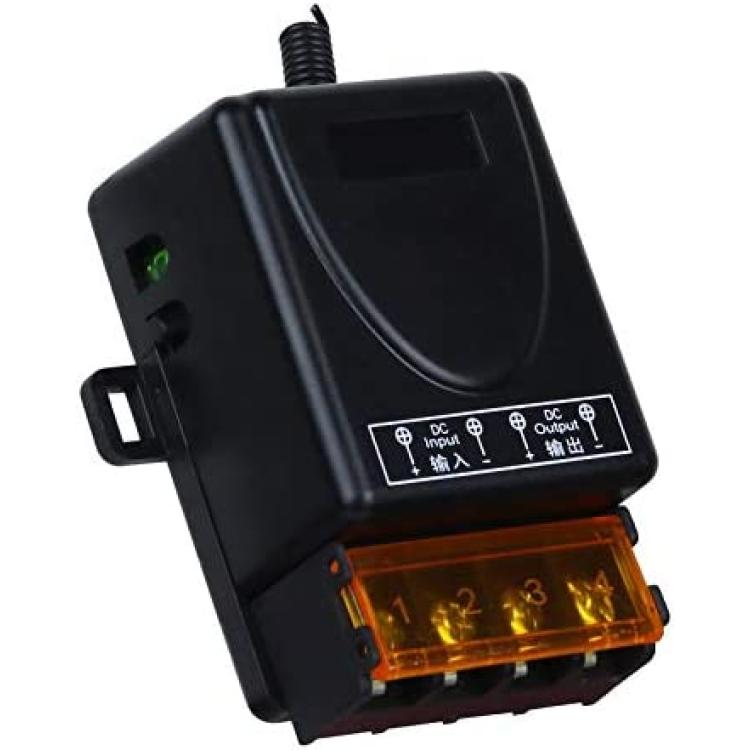

About Receiver:
Model No.: AK-YLDC01A
1. Working voltage: DC12V-48V
2. Quiescent condition: Less than 8mA
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Output voltage: Input=output
8. Max load current: 30A
9. Size: 105 x51 x 30mm
About Working way:
About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.
About Learning and clearing Method:
Learn method ?
Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearing method :
Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
