433Mhz RF Relay Remote Control Switch, AC 85V 110V 220V 250V 260V Universal 1 Channel 40A 433Mhz Remote Transmitter with Receiver for Motor, Water Pump Controller and More
About this product

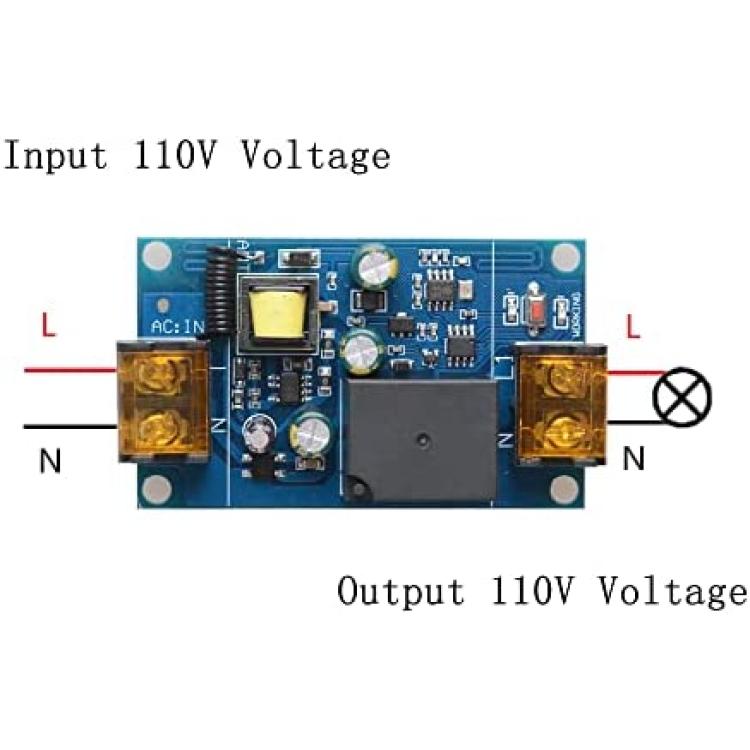

*Working voltage: AC85-260V; Working frequency: 433mhz; Max load current: 40A (Output voltage: AC85-260V; Input voltage = Output voltage)
*【Application】Suitable for electric control circuits of remote control electric doors and windows, signal control, industrial control, lifting equipment, etc. Ideal for direct control of various loads
*【SIGNAL Stability】the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 20--50meters with no obstacle.
*【Easy & Convenience】We have made transmitter and receiver working together and test it before ship it,when you get it dont need to do anything ,just install it.
*we send latched mode default ( that is, Press the button A , the receiver relay is ON; Press the button B, the receiver relay is OFF ). You can switch to different modes as needed，Latched/Momentary / Toggle / 5 seconds delay (If you encounter any problems in use, please feel free to contact us any time, we will be happy to serve you, thank you very much )
Description

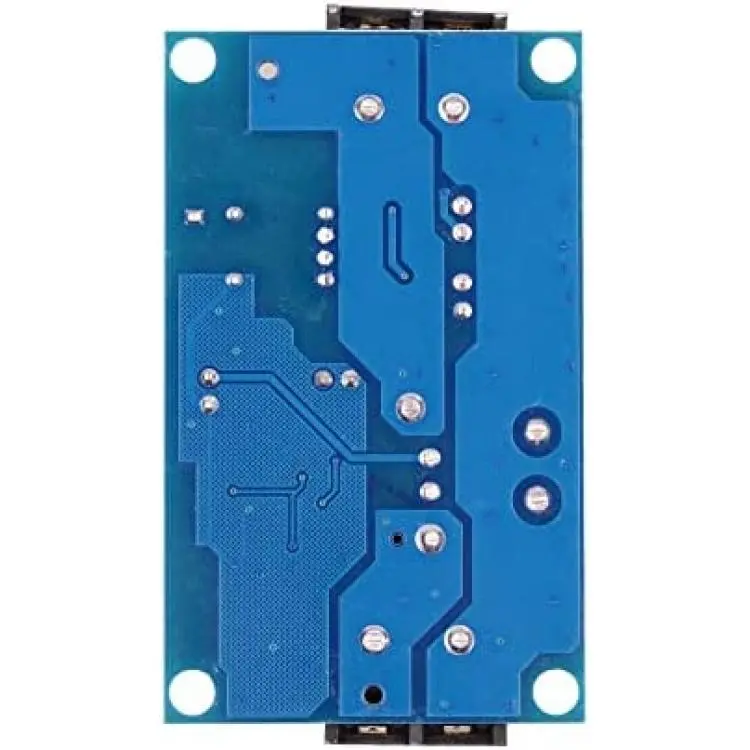

About Receiver:
1. Working voltage: AC85-260V
2. Working temperature: -40 Degree +80 Degree
3. Receiver sensitivity: more than -105dBm
4. Working frequency: 433mhz
5. Output voltage: AC85-260V
6. Input voltage = Output voltage
7. Max load current: 40A
8. Size: 8.2 x 5.0 x 3.1cm
About Working way:
Working way changed by SET Point :
Latched: Connect set point with tweezers . Until the receiver Led indicator flash for 1 times, it mean Change L successfully.(Relay: Press -> On; Press other button -> Off)
Momentary: Connect set point with tweezers . Until the receiver Led indicator flash for 2 times, it mean Change M successfully.( Relay: Press and hold -> On; Release -> Off.)
Toggle: Connect set point with tweezers . Until the receiver Led indicator flash for 3 times, it mean Change T successfully. (Relay: Press -> On; Press same button again -> Off·)
5 seconds delay: Connect set point with tweezers . Until the receiver Led indicator flash for 4 times, it mean Change Delay time successfully.(Relay: Press -> On , relay actuates and keeps working until the time out.(5S))
About Learning and clearing Method:
Learning: Input 220V for the Receiver , Press learning button , The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times , Then Press remote button B 1 time , Led indicator flash for 1 times again , it mean learning successfully
Clearning: Connect set point with tweezers . Until the receiver Led indicator flash for 5 times, it mean Clearing Code
About Transmitter:
1.Buttons: 2 Buttons
2.Working Voltage:DC6V (2PCS CR2016)
3.Operating frequency :433MHz
4.Remote Distance: 20-50M
5.Operating Current: 13 mAh
6.Encode: Fixed code / EV1527 code

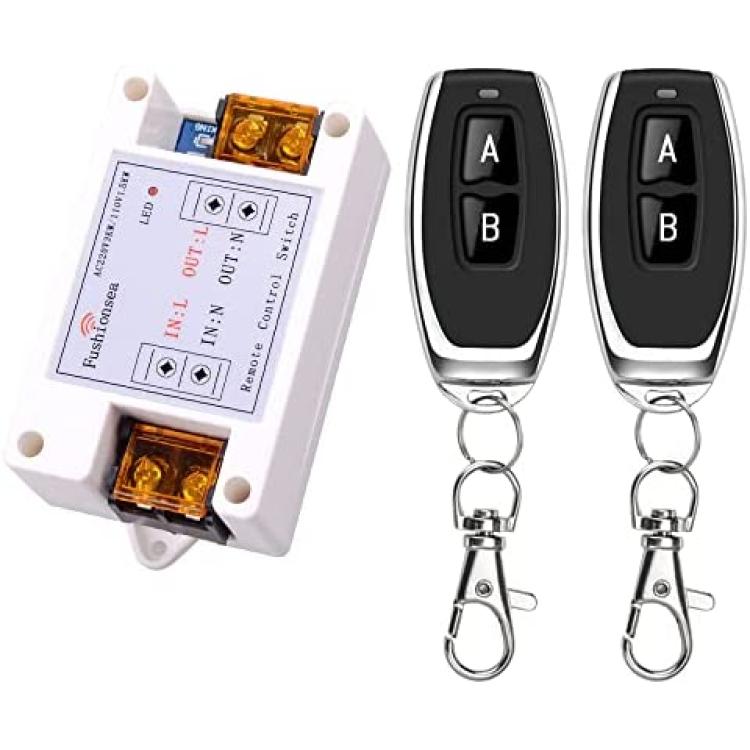

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manua
