DC 12V 40A Motor Remote Control Switch 2CH Motor Forward and Reverse Wireless Switch, 433Mhz Remote Control Relay Use for Car, Motor, Electric Curtain, Water Pump and More
Description

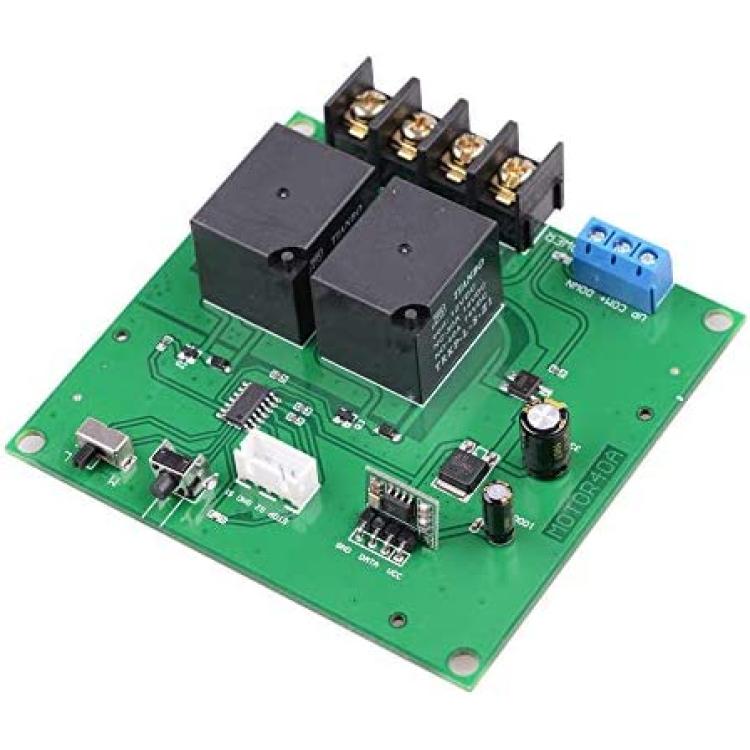

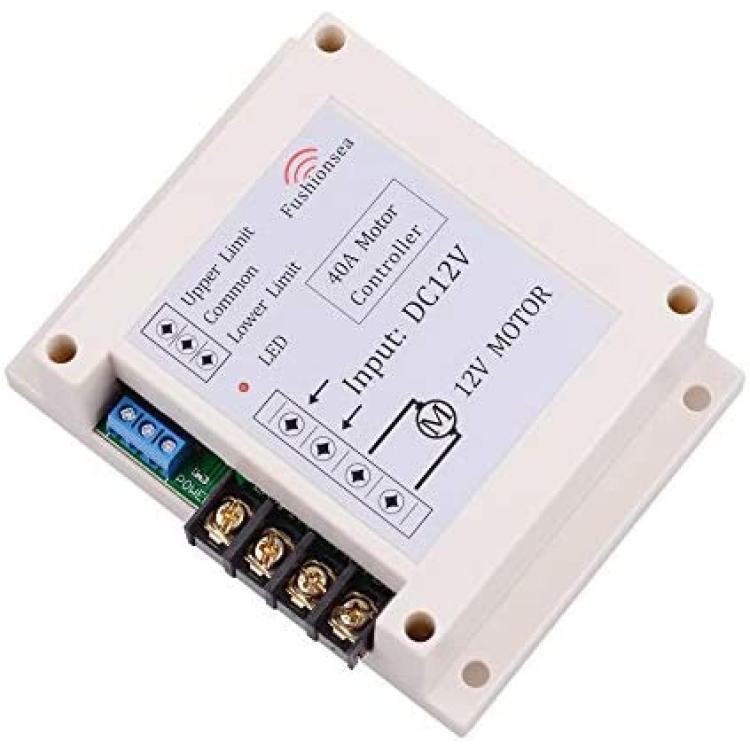

About Receiver:
Working Voltage: DC12V Max Load: 40A Relay (have better load less than 300W)
Working Mode: Momentary Latched adjusted by DIP Switch
Momentary----Switch turn to“M"
Latched---Switch turn to " L"
Momentary---Press button"Up", the Motor Forward, Release is Stop. Press button "Down", the Motor Reverse, Release is Stop.
Latched---Â Press button "Up", the Motor Forward, Press button "Stop"Â is stop. Press button "Down", the Motor Reverse, Press button"Stop"Â is stop
When the receiver output state is “Latched”, we have set it 2S time delay for forwards and reverse, it is the Protection function.
How to wire to your External Manual Button (if you need)
Forward ---S2 & GND
Reverse ---S1 & GND
Stop---Stop & GND

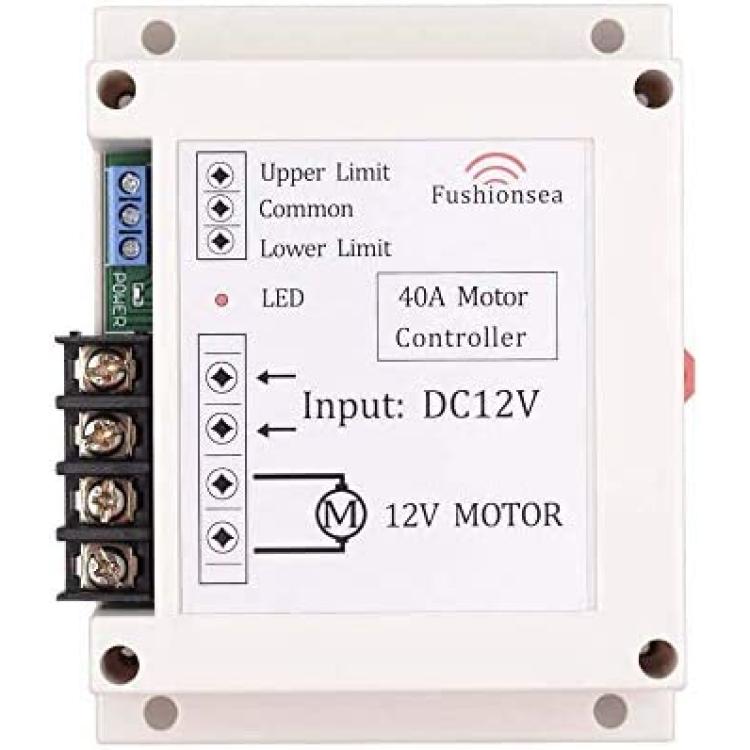

About Limited Switch Function:

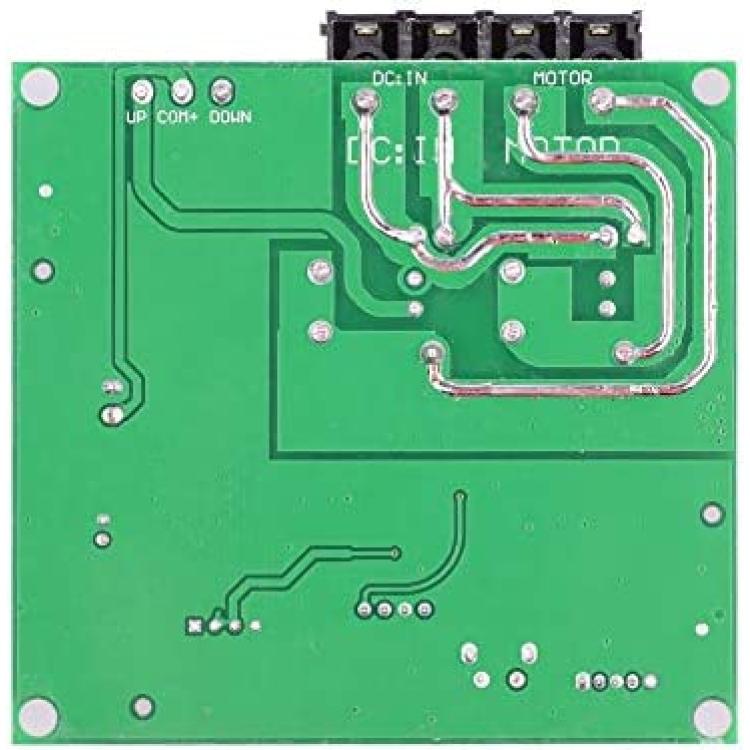

Limited Switch use UP,DOWN and COM+ Terminal ,Your limited switch connect COM and NC .?Limited Switch is not included )
About Learning Code:

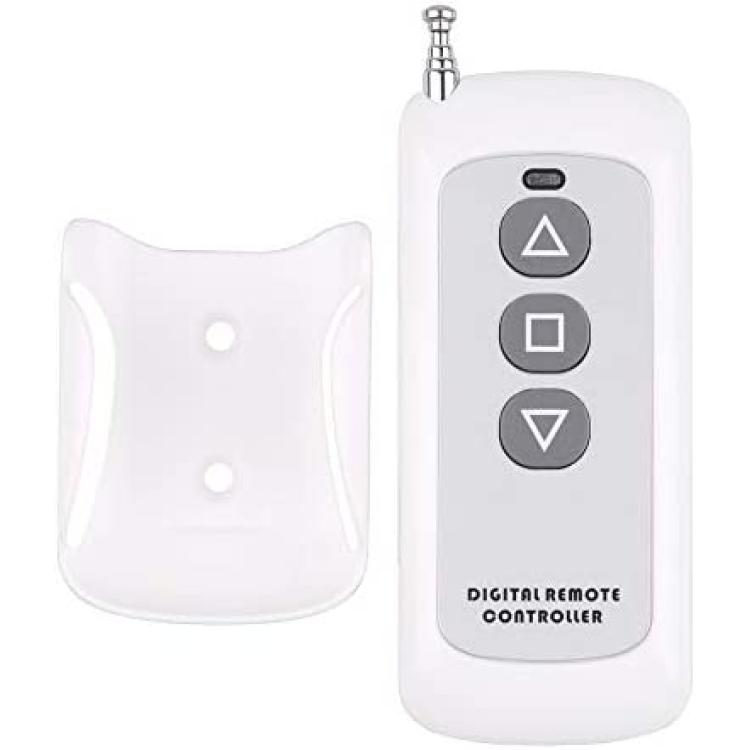

 1. Press the learning button on the receiver for 1 time,the learning indicator ON,Then press the transmitter button up for 1 time (first button default for forward) ,the learning indicator flash 2 times and ON,It mean the first button learning Successfully
2. Then press the transmitter button down for 1 time (second button default for reverse) ,the learning indicator flash 2 times and ON,It mean the second button learning Successfully
3. Then press the transmitter button stop for 1 time (third button default for stop) ,the learning indicator flash 2 times and ON,It mean the third button learning Successfully
 4. Then press the transmitter button stop for 1 time again,the learning indicator flash 2 times and OFF,It mean all button learning Successfully
About Learning Code: Press the learning button on the receiver for 5s,the learning indicator will flash 3 times and OFF , It mean all the transmitter code in the receiver have been cleared.

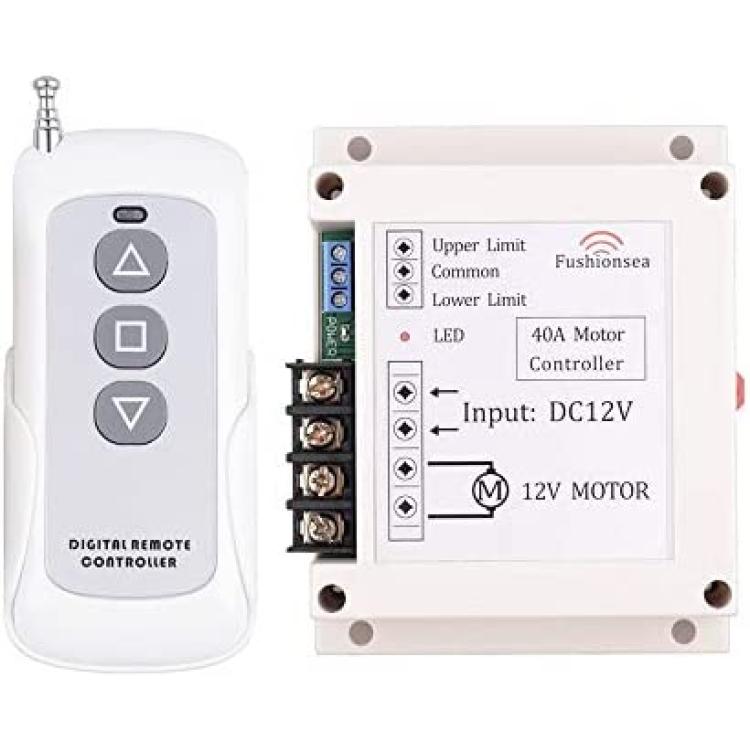

Package Include:
1 x Receiver
1 x Transmitter
