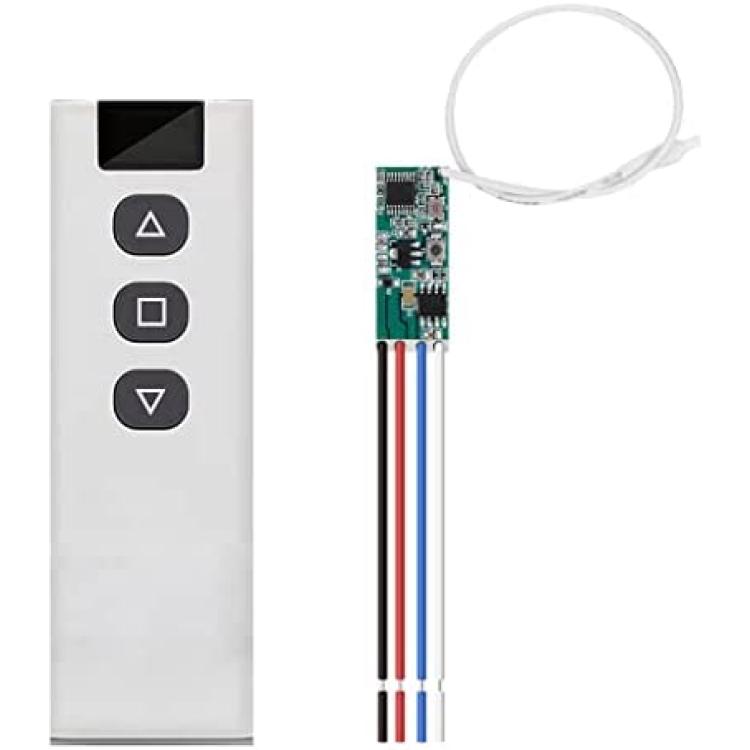

12V DC Motor Drive Forwards and Reverse Controller Module Switch, DC 3V~18V 433Mhz RF Wireless Remote Electric Push Rod Motor Controller for Rolling Door, Electric Curtains/Locks, Water Pump
About this product
*Introduction: This DC 3V~18V miniature motor control module is specially designed for the motor, and controls the forward rotation, reverse rotation and stop of the motor through the transmitter. Commonly used in automobiles, electric curtains, water pumps, garage doors, rolling shutter doors, etc. (DC only).

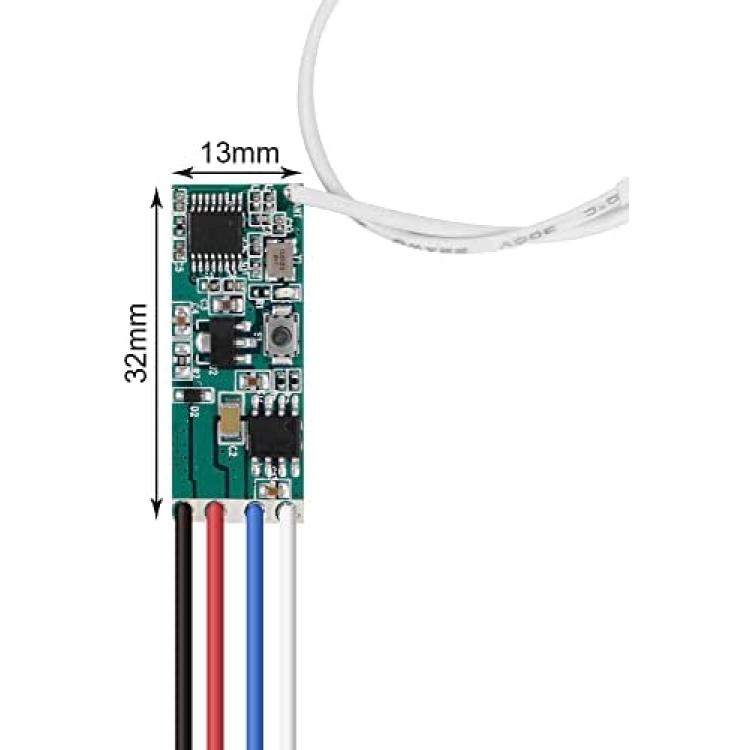

*Mini Size: Can be easily installed in limited spaces such as canopies, junction boxes, electrical boxes, etc. The size of the receiver is 32.2*12.8*3mm.
*Strong Signal: Using RF technology, this remote switch can penetrate walls, floors and doors anywhere within a reliable distance to control the receiver. Maximum range is up to 328 feet.

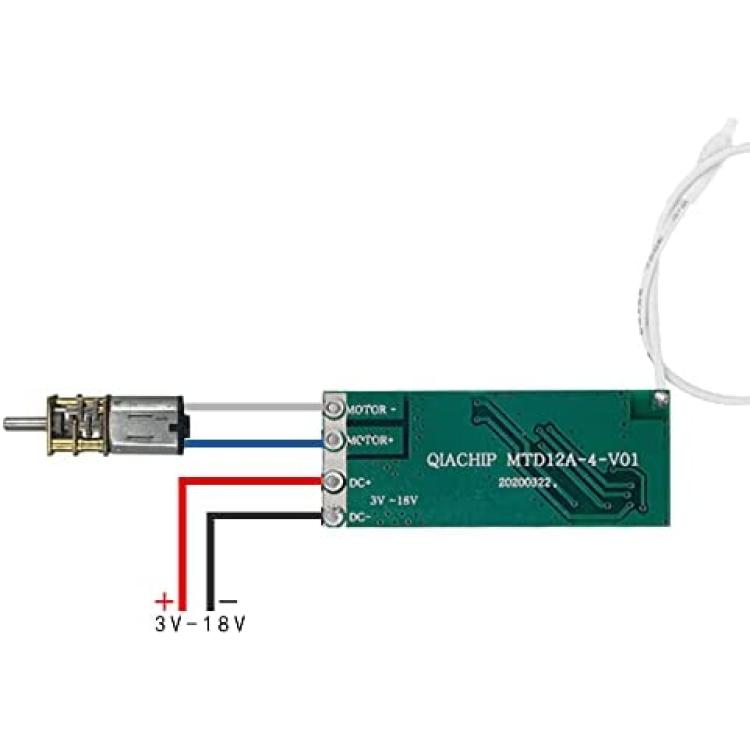

*Easy to wire: With wire design, you can directly connect the positive and negative poles of the power supply and the motor.
*Power saving mode: The default standby current is 6mA. By setting the power saving mode, the standby current can be reduced to 1mA.
Description
Momentary Mode Pairing Instructions
Momentary mode: press and hold the A button of the remote control, the motor rotates forward, release to stop, press and hold the B button of the
remote control, the motor reverses, release to stop.

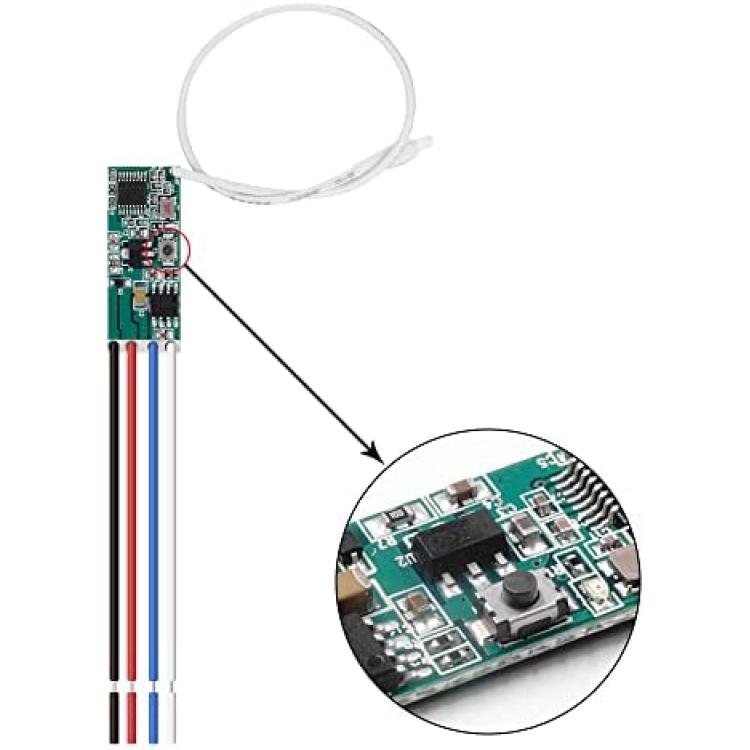

Setting: press the learning button once, the indicator light is always on,enter the pairing mode, press the A button of the remote control, the
indicator light flashes and then keep on, then press the B button of the remote control, the indicator light flashes and then goes out, and exits the
pairing mode.
Toggle Mode Pairing Instructions
Toggle mode: press the A button of the remote control, the motor rotates forward, press the A button again, the motor stops, press the B button of
the remote control, the motor reverses, press the B button again, the motor stops.
Setting method: press the learning button twice, the indicator light is always on, enter the pairing mode, press the A button of the remote control, the
indicator light flashes and then light up, then press the B button of the remote control, the indicator light flashes and then goes out, exit the pairing
model.
Latching Mode Pairing Instructions
Latching mode: press the A button of the remote control, the motor rotates forward, press the B button of the remote control, the motor reverses, press the C button of the remote control, the motor stops .
Setting: press the learning button three times, the indicator light is always on, enter the pairing mode, press the A button of the remote, the indicator
light flashes and then lights up, then press the B button of the remote, the indicator light flashes and then lights up, and finally press the C button of
the remote, the indicator light turns off after flashing, and exits the pairing mode.
Clean code
Press the learning button 8 times, the indicator light will turn off after flashing, and the module will clear the paired remote key value.
Power save mode
Description: the quiescent current is reduced from 6mA to 1mA, but it needs to press and hold the remote control for a long time to wake up the module.
Setting: press the learning button 4 times, the indicator light flashes and then goes out, the module enters the power saving mode; press the
learning button 5 times, the indicator light flashes and then goes out, the module exits the power saving mode
