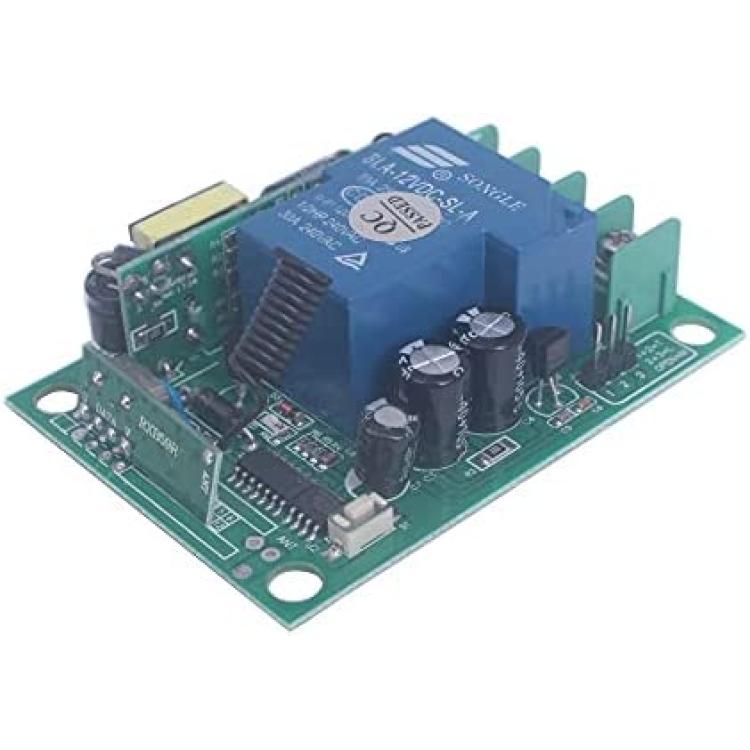

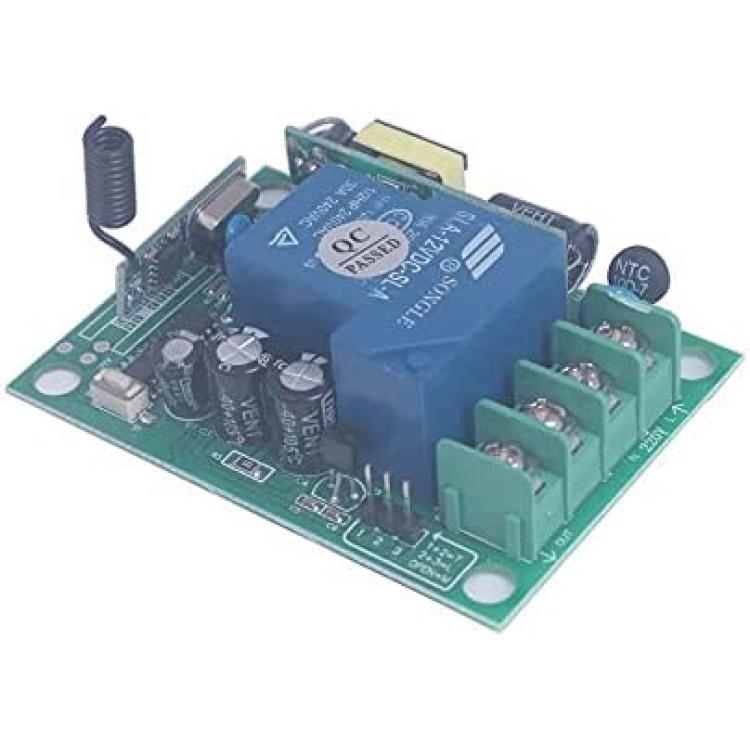

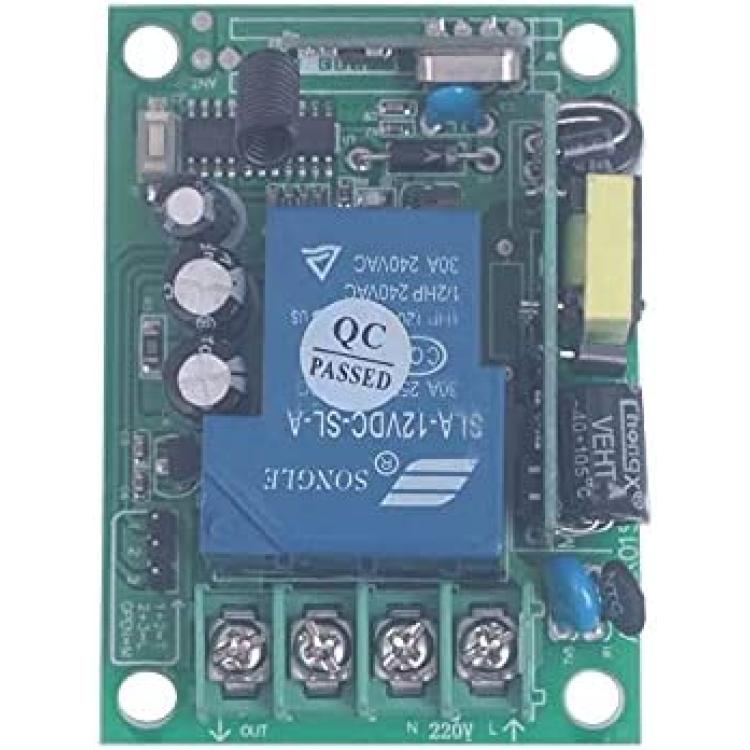

AC 110V 220V 85V-250V 30A Wireless Control Switch 433Mhz Remote Relay Switch, 30A 1 Channel 433Mhz Transmitter and Receiver for High Power Air Condition Pump Light Fan (2X Control 433M)
Description
Description:
The Wireless Remote Control is easy to install and use, remote control system lets you take control of your gadgets, car and home or garage.Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows…….
Toggle: pin1+pin 2
Latched: pin2+pin3
Momentary : pin3
Specification:
Working Voltage: AC85~250V,110V 220V
Working Frequency: 433MHz
Max Current: 30A
Contact Capacity: 30A/250VAC; 30A/30VDC
Operating Temperature: -40'C~+80'C
Output State: Momentary/Toggle/Latched adjusted freely by the Jumper on the receiver.
Size: 65*37*17mm(PCB Board ,not included the cover)
Size with Cover: 70*50*20mm
Receiver Sensitivity: -105dBm
Code: Learning code
Learn code and Remove Code
1. Learn: Press the learning code, the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off. It means you learn it successfully.
2. Remove: Press the learning button about 8 seconds, the indicator turn on to off, it means the Code had been removed successfully.
Package:

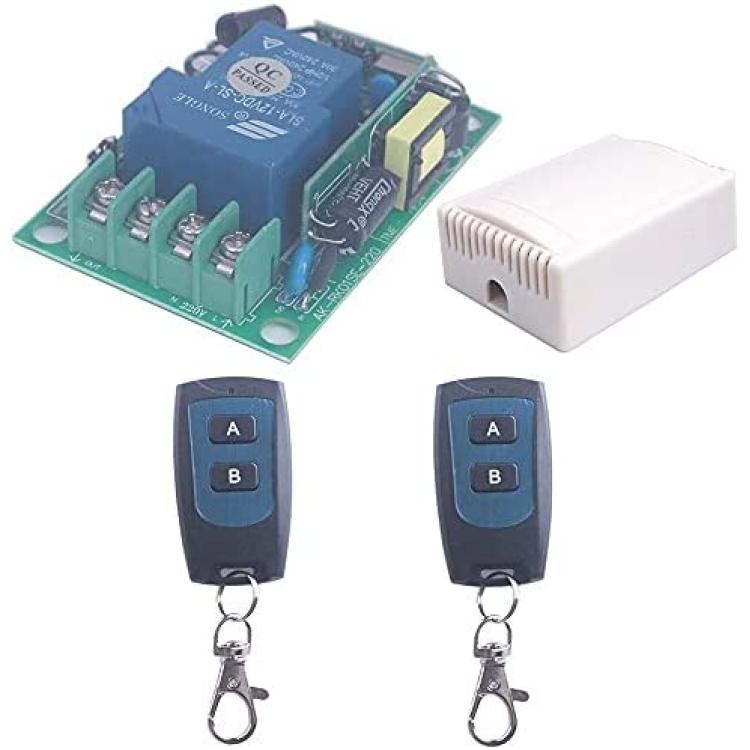

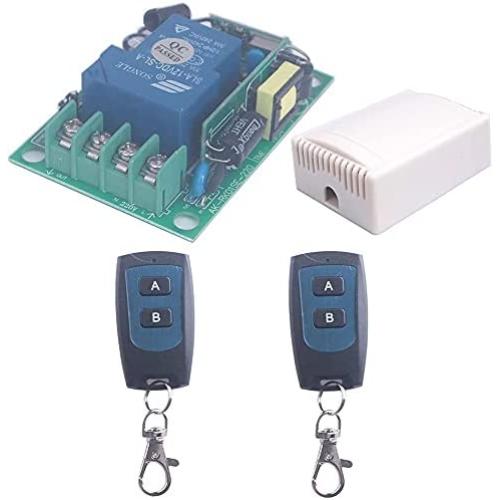

2* Remote Control transmitter (Battery included)v 1* receivers (With cover)
