12V 4 Channel Wireless Remote Control Switch Transmitter Receiver Momentary Toggle Switch Garage Door Motor Window Openr Parts (2X Control 315Mhz)
About this product
*【Applies】 : remote control electric doors, windows, switches, door control LED lamps, motors, circuit security and other industrial lighting remote areas or remote on-off control.
*【Widely Use】: large-capacity relay, can control appliances and equipment .Universal many Home or Industry in Circuit product,No wiring required,easy install the switch control the electric circuit,The switch receiver wired between power and electric appliance.
*【Wireless coding technology】, no direction, switch without disturbing each other
*【Model】Self-lock,Momentary,Inter-lock.can change it by yourself in relay switch Module Pin
*Upgrade new high-speed diode, more stable and durable.
Description
Switch Features:
The Wireless Remote Control is easy to install and use, remote control system lets you take control of your gadgets, car and home or garage.Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows…….
Transmitter
Channel: 4 CH
Remote Control Distance: 50 meter(open/ideal) in theory, 10%-50% in reality(In open environment)
Encode: Fixed code, soldering
Frequency: 433MHz
Power Supply: 1 X 12V/23A
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Relay: DC 12V
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Sensitivity:-105 dBm
Operating Temperature:-40‘C - 80’C
Control Mode:
Toggle/Self-Lock: Press->On; Press again->Off
Learn code and Remove Code
1.Learn:Press the learning code . The indicator from 'on' to 'off' , loosen your finger, press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .it can learn more than 12 PCS 2260/2262 chip with the different code wireless remote control.
2.Remove :press the learning button about 8 seconds , the indicator turn on to off , it means the Code had been removed successfully.
Package:

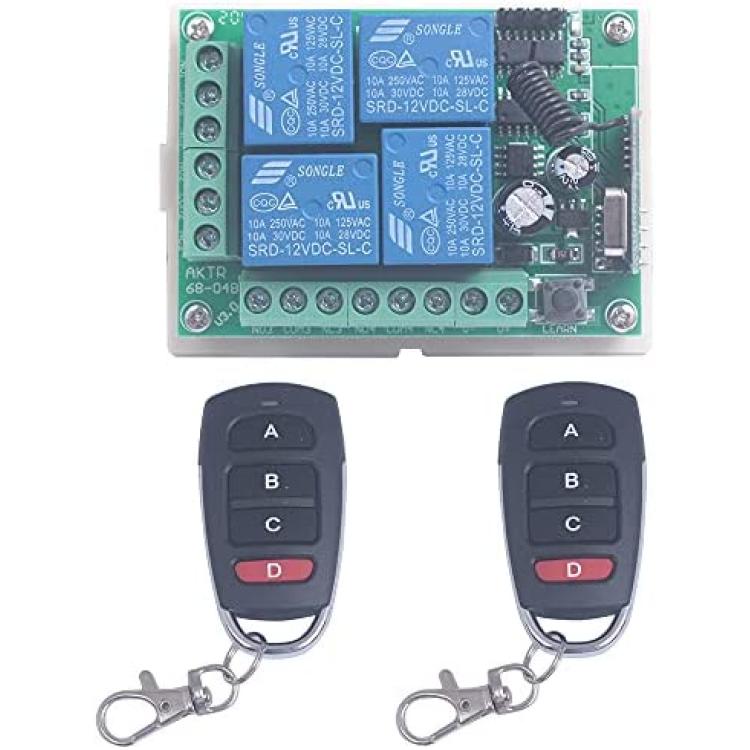

1 x 12V 4CH switch Receiver
2X Transmitter Control ?Battery include?
1X Manual
