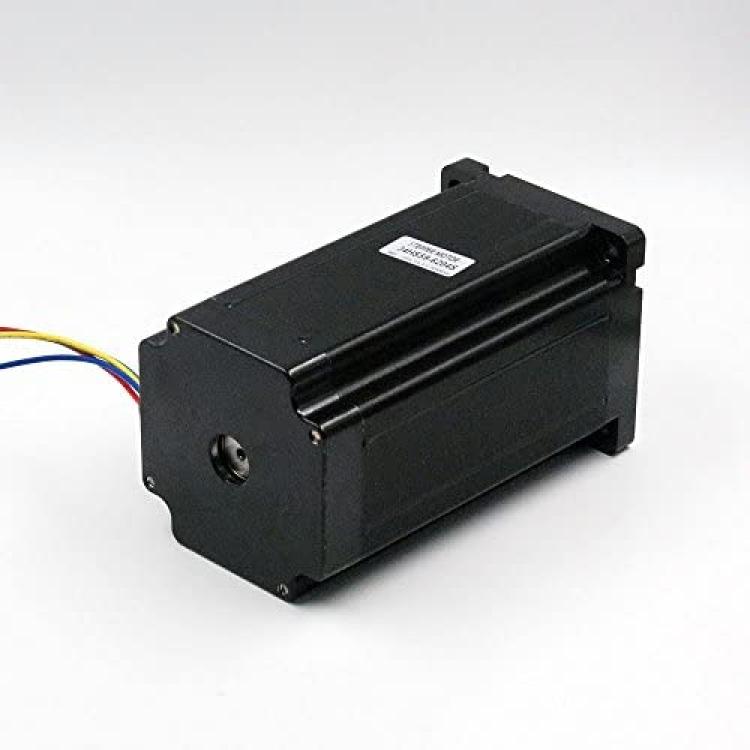

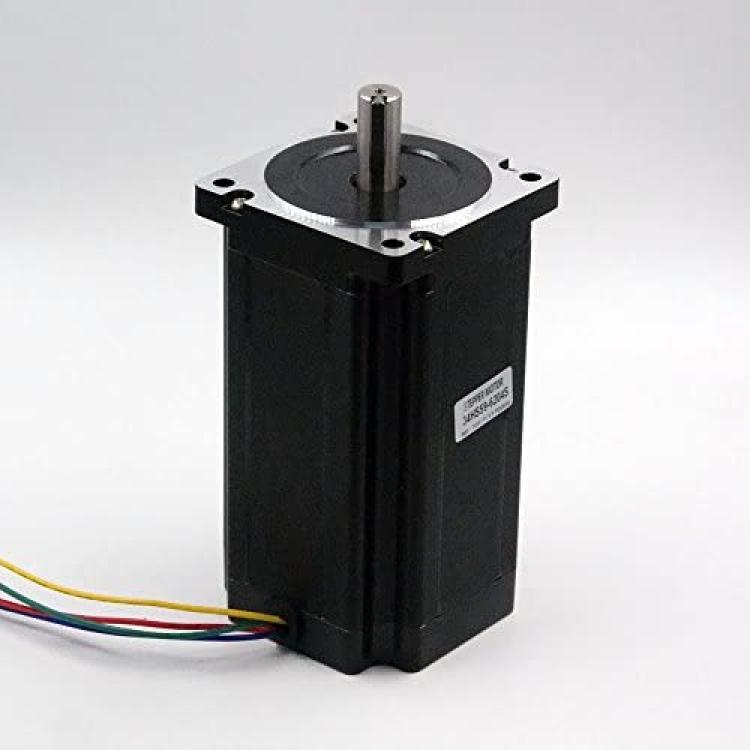

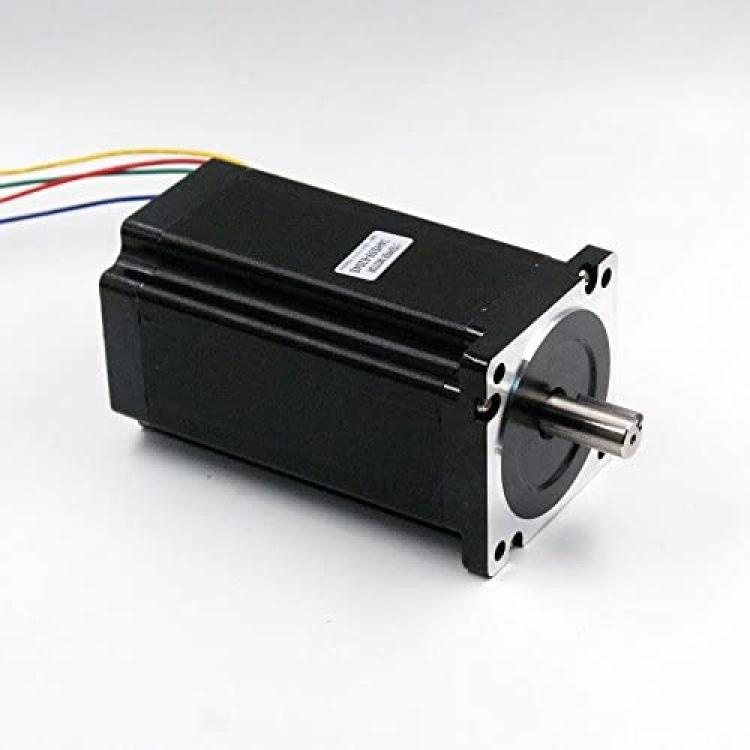

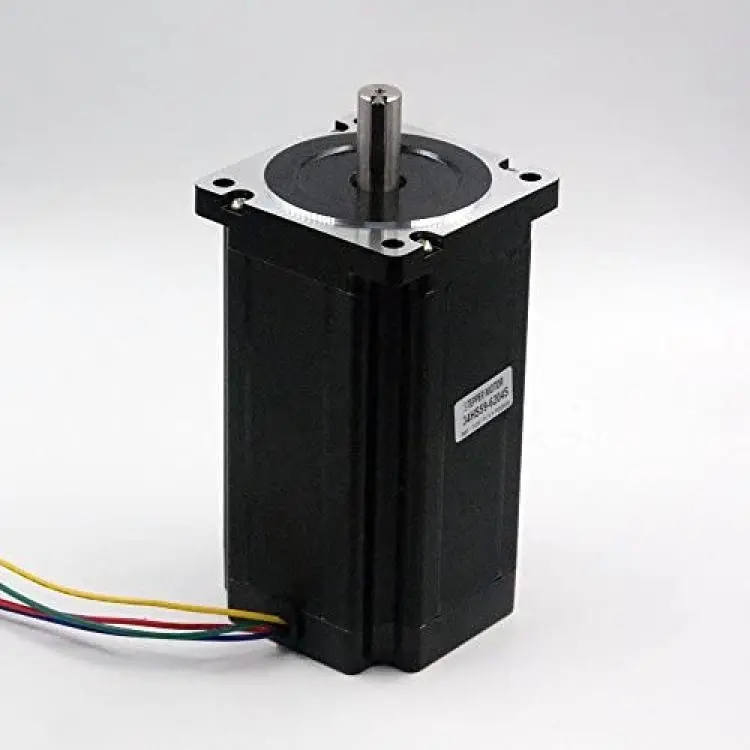

Nema 34 Stepper Motor 6A 12Nm (1700 oz-in) 156mm Length for CNC Router Mill Lathe
About this product
*Nema 34 156mm length stepper motor.
*Holding Torque: 12Nm (1700oz.in)
*Weight: 5.2kg
*Nema 34 156mm length stepper motor.
*Holding Torque: 12Nm (1700oz.in)
Description
Specifications:
Manufacturer Part Number: 34HS59-6204SStep Angle: 1.8°Step Accuracy: 5%Holding Torque: 12Nm (1700oz.in)Rated Current/phase: 6.2ARated voltage: 36V/48VResistance/phase: 0.8ohmsInductance/phase: 9mH±20%(1KHz)Insulation Resistant  100 MOhm Min 500V DCAmbient Temperature: -20°C~+50°CControl Cable: 4Weight: 5.2kgRelated Products
