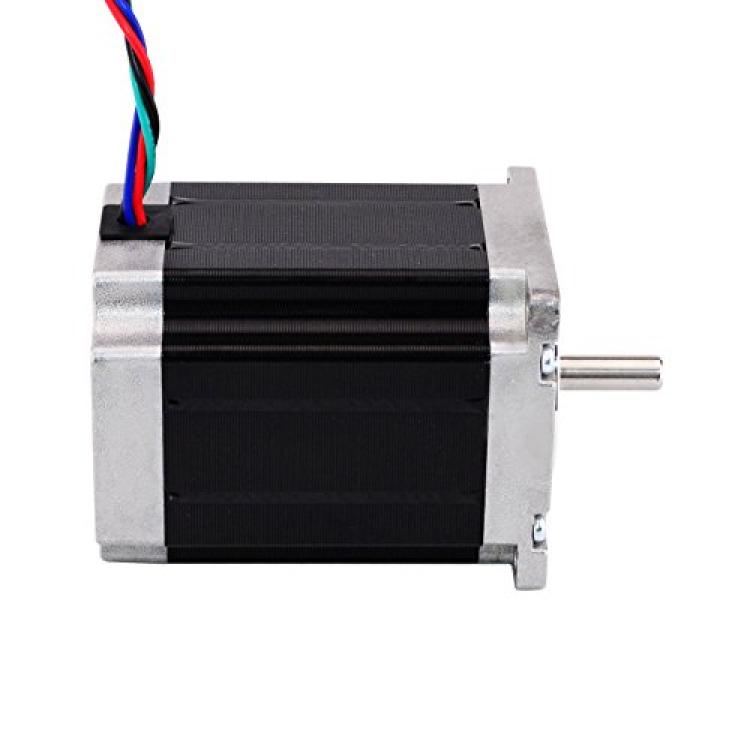

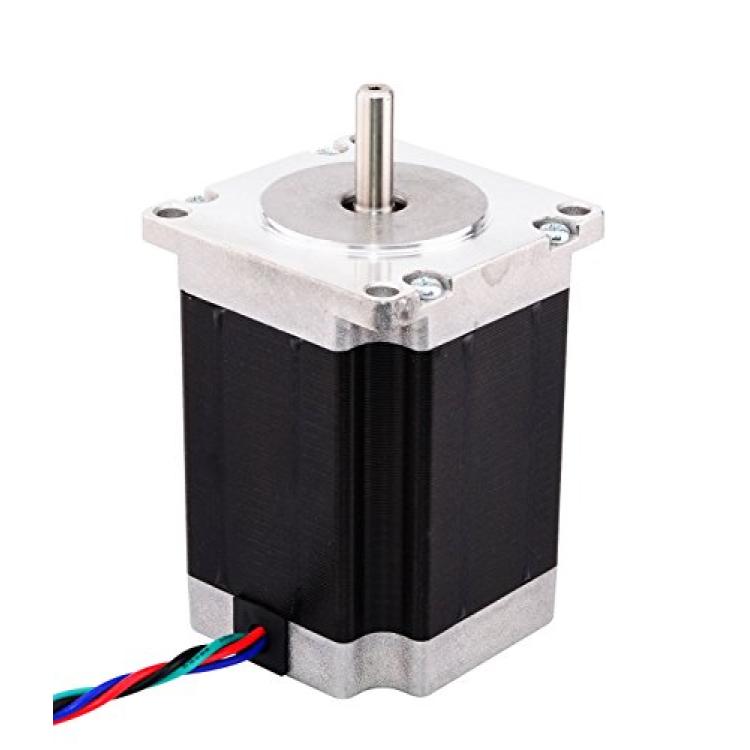

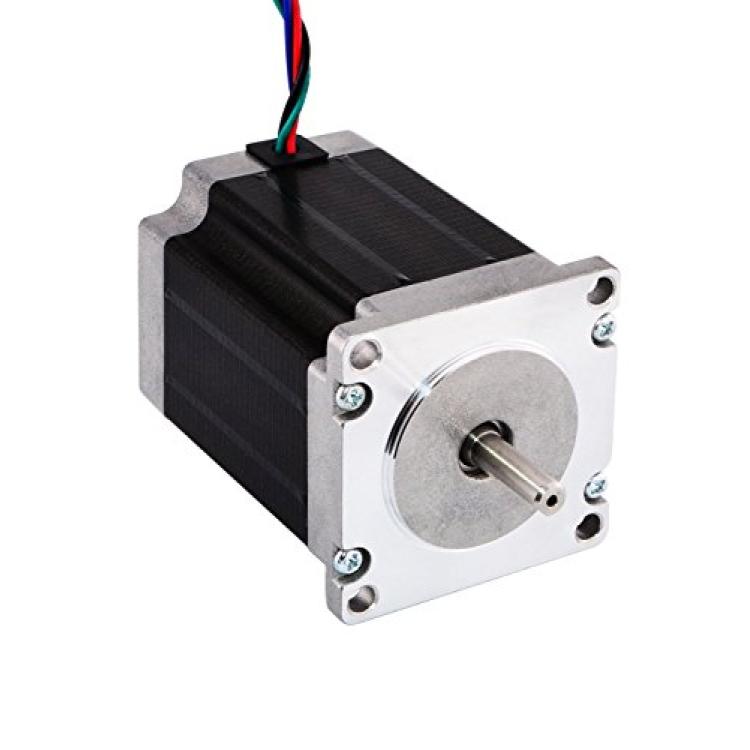

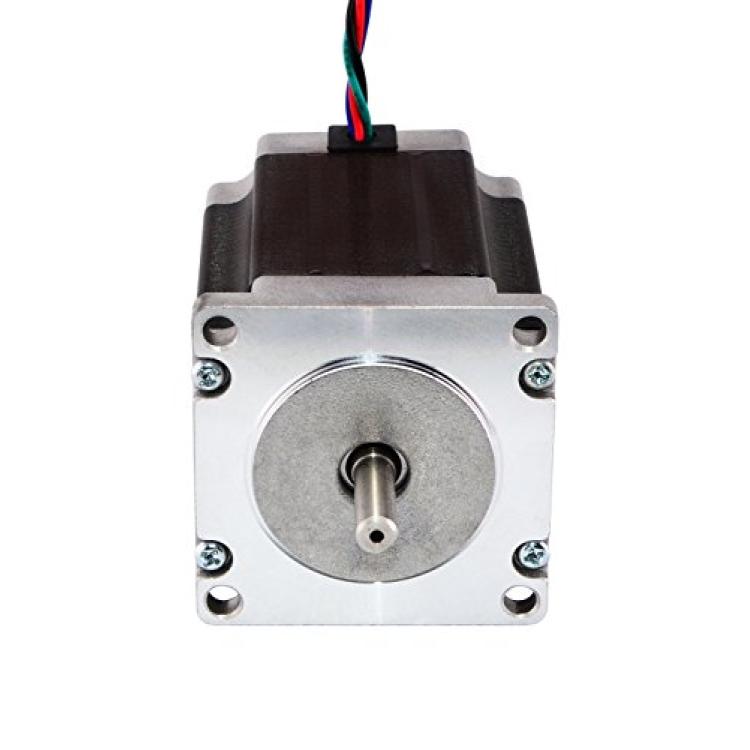

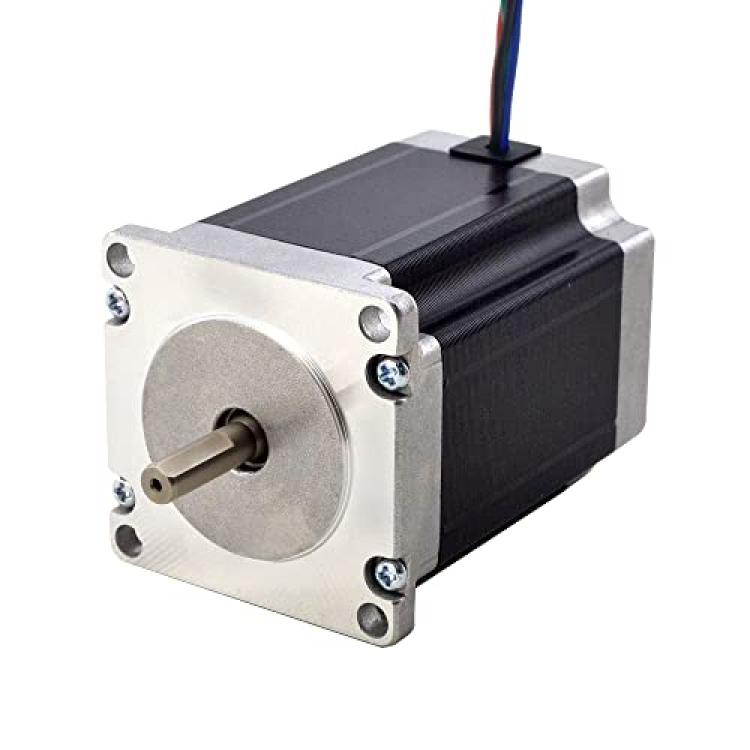

STEPPERONLINE Nema 23 Stepper Motor 3.0A 269oz.in/1.9Nm 76mm Length Step Motor for CNC Mill Lathe Router

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 3A, with holding torque 1.9Nm (269oz.in).

Electrical Specification

*Manufacturer Part Number: 23HS30-3004S
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Holding Torque: 1.9Nm(269oz.in)
*Rated Current/phase: 3A
*Voltage: 3.36V
*Phase Resistance: 1.12ohms
*Inductance: 4.8mH ± 20%(1KHz)

Physical Specification

*Frame Size: 57 x 57mm
*Body Length: 76mm
*Shaft Diameter: ?6.35mm
*Shaft Length: 21mm
*D-cut Length: 15mm
*Number of Leads: 4
*Lead Length: 500mm
*Weight: 1.2kg

Connection:

Black: A+, Green: A-, Red: B+, Blue: B-
