Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 6.35mm Diameter of Shaft for CNC Mill Lathe Router
About this product

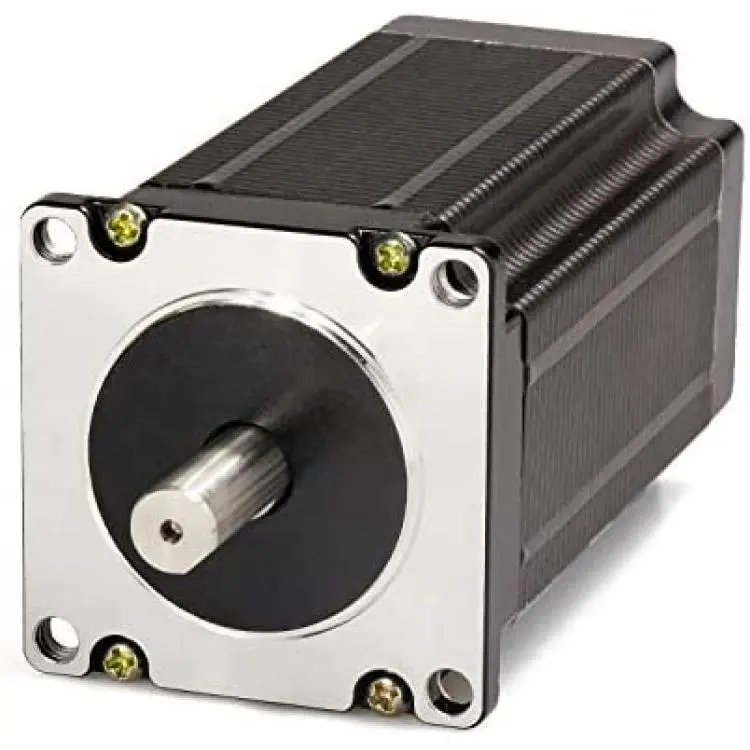

*Nema 23 stepper motor 76mm length
*2.8A 1.9Nm (269oz.in) torque
*6.35mm shaft
*Weight:1.03kg(2.27lb)
*Nema 23 stepper motor 76mm length
Description
Specifications:
Shaft Diameter: 6.35mmStep Angle: 1.8°Step Accuracy: 5%Holding Torque: 1.9Nm(269oz.in)Rated Current/phase: 2.8APhase Resistance: 1.13ohmsVoltage: 3.2VInductance: 5.4mH±20%(1KHz)Weight: 1.1kgRelated Products
This bipolar Nema 23 stepper motor is most popular, it with 1.8 deg. step angle (200 steps/revolutio..
