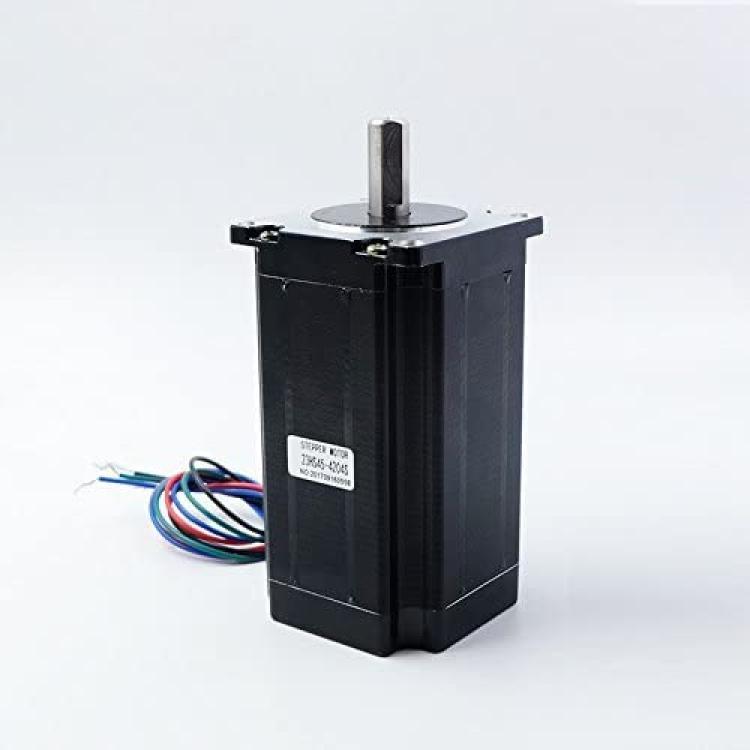

Nema 23 Stepper Motor 4.2A 3.0Nm (425oz.in) 100mm Length with 10mm Shaft for CNC Mill Lathe Router
About this product
*Step Angle: 1.8°
*Holding Torque: 3.0Nm(425oz.in)
*Rated Current/phase: 4.2A
*Phase Resistance: 0.9ohms
Description
Specifications:
Step Angle: 1.8°Holding Torque: 3.0Nm(425oz.in)Rated Current/phase: 4.2APhase Resistance: 0.9ohmsRecommended Voltage: 24-48VInductance: 3.8mH±20%(1KHz)Weight: 1.8kgLead Length: 30cm10mm Motor ShaftRelated Products
