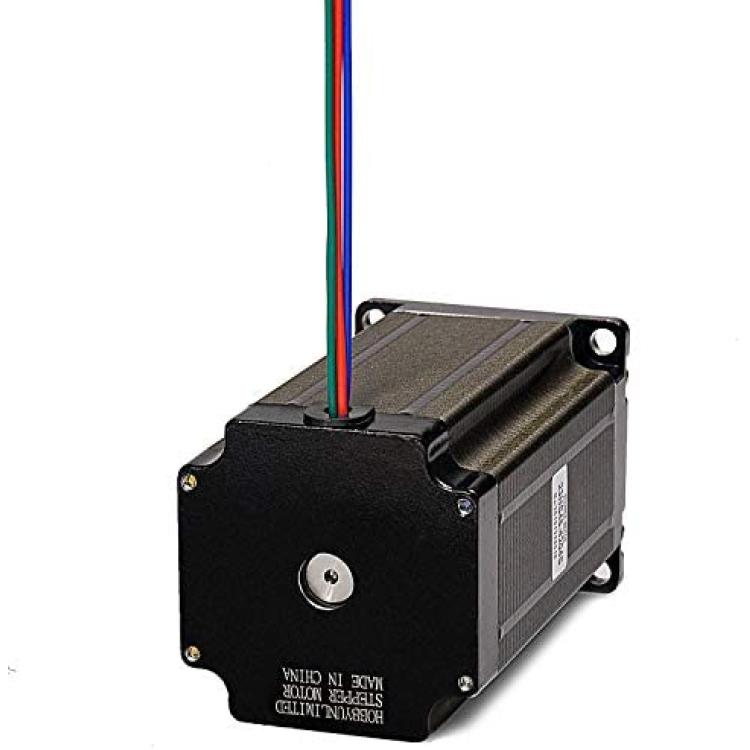

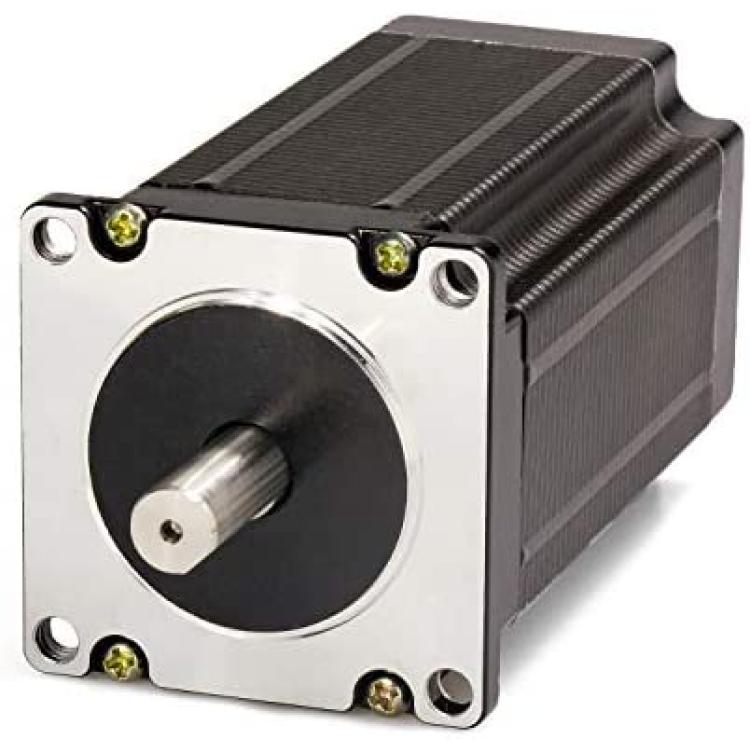

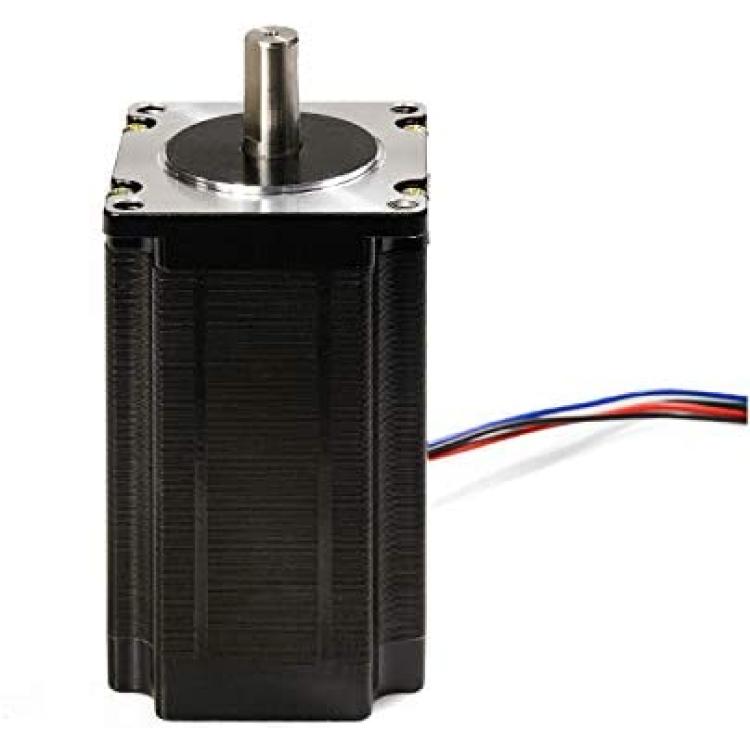

Nema 23 Stepper Motor 4.2A 3.0Nm (425oz.in) 100mm Length with 8mm Shaft for CNC Mill Lathe Router
About this product
*Nema 23 100mm length stepper motor.
*3.0Nm (425oz.in) torque.
*The most powerful Nema 23 stepper motor available. Ideal for CNC Mill Lathe Router.
*8mm motor shaft.
*Nema 23 100mm length stepper motor.
Description
Specifications:
Step Angle: 1.8°Holding Torque: 3.0Nm(425oz.in)Rated Current/phase: 4.2APhase Resistance: 0.9ohmsRecommended Voltage: 24-48VInductance: 3.8mH±20%(1KHz)Weight: 1.8kgLead Length: 30cm8mm Motor ShaftRelated Products
