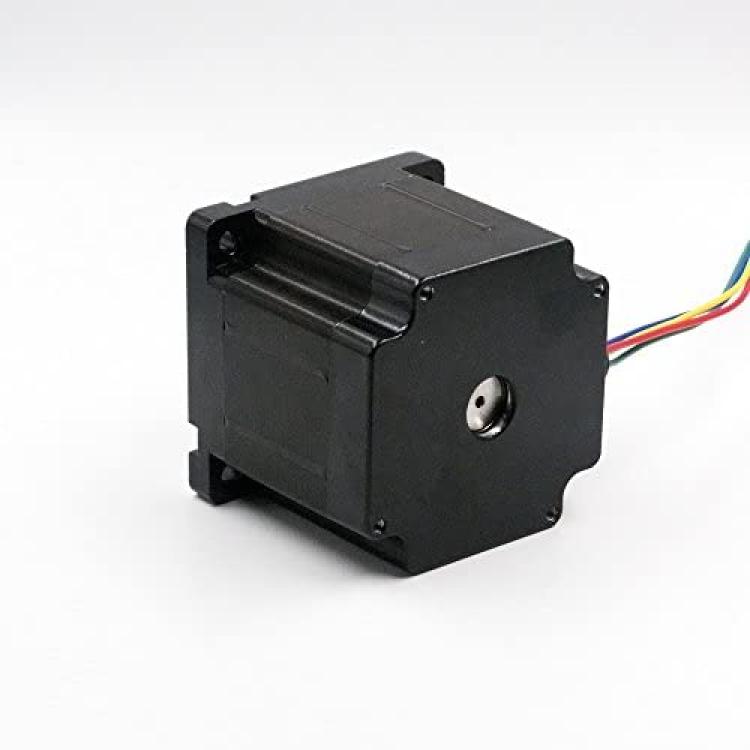

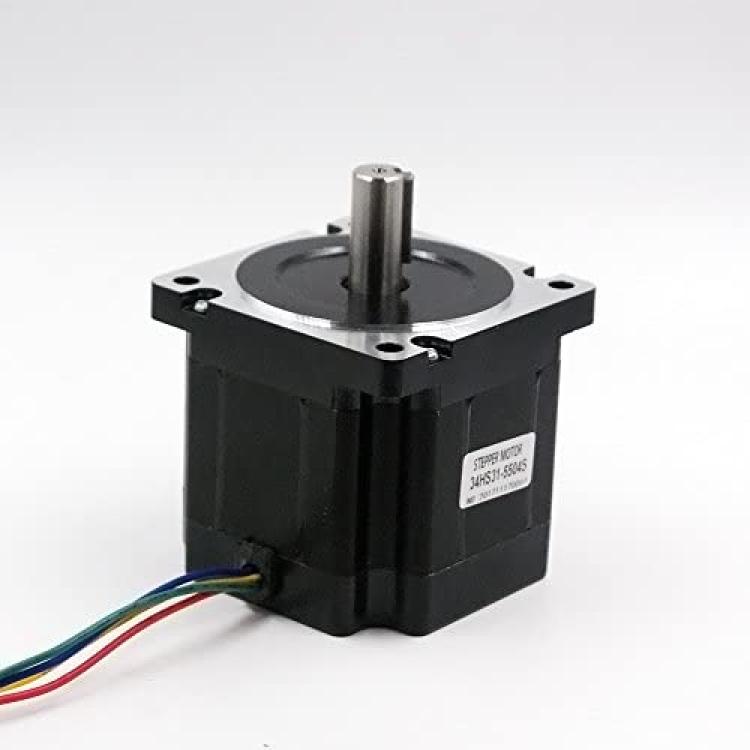

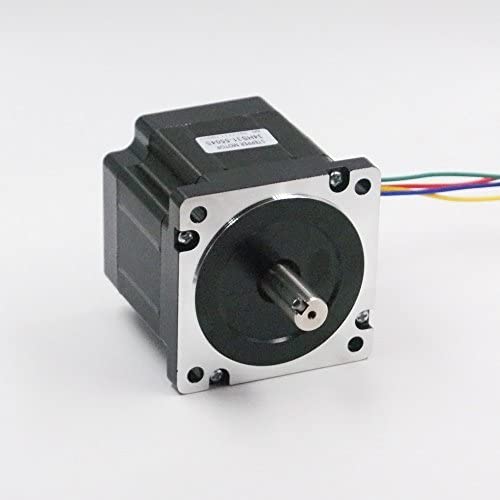

Nema 34 Stepper Motor 5.5A 4.5Nm (640 oz-in) 80mm Length for CNC Router Mill Lathe
About this product
*Holding Torque: 4.5Nm (637oz.in)
*Weight: 2.3kg
*4.5A Amps Current Per Phase
*1.8° /200 Steps Per Rev.
*Holding Torque: 4.5Nm (637oz.in)
Description
Specifications:
Manufacturer Part Number: 34HS31-5504SStep Angle: 1.8°Step Accuracy: 5%Holding Torque: 4.5Nm (637oz.in)Rated Current/phase: 5.5APhase Resistance: 0.4ohmsVoltage: 2.2VInductance: 3.5mH±20%(1KHz)Weight: 2.3kgRelated Products
