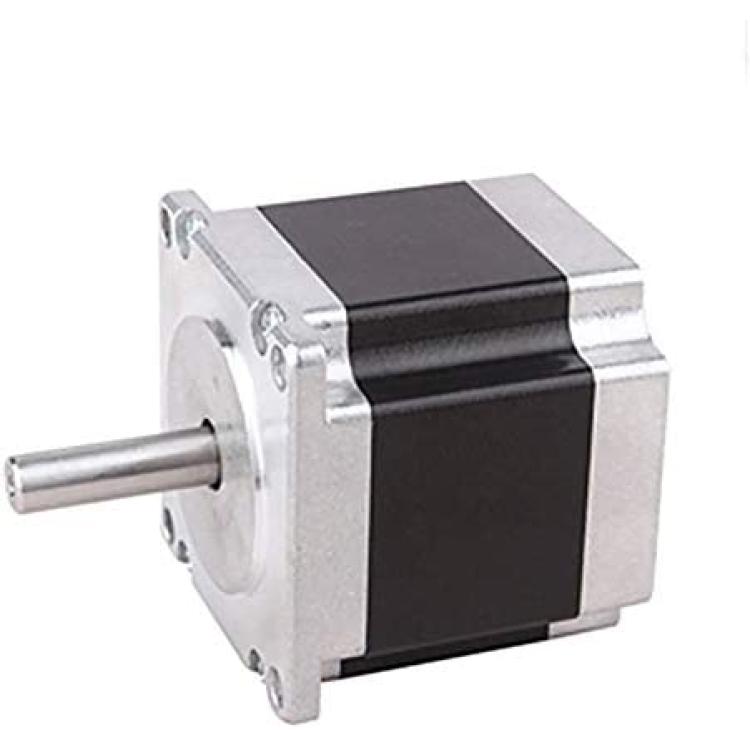

ATO Stepper motor Nema 23, 1A/2A/3A, Nema 23 Stepper MotorBipolar,1.8 Degree, 2 Phase 6 Wires,for CNC Mill Lathe Router (1A)

ATO Nema 23 stepper motor, 0.9Nm holdingtorque, 1.8 deg. step angle,1A/2A/3A, 2 phase 6 leads, manufacturer directsale.

Nema 23 Stepper motor, 1A, 2 phase 6 leads,1.8 degree, manufacturer direct sale.



Specification:

Electrical Specification   :

Step Angle       1.8°

Holding Torque        0.9Nm

Rated Current/phase      1A/2A/3A

Phase Resistance    7.4?/1.8?/0.75?

Inductance      10mH/2.5mH/1.1mH

Rotor Inertia    280g-cm2

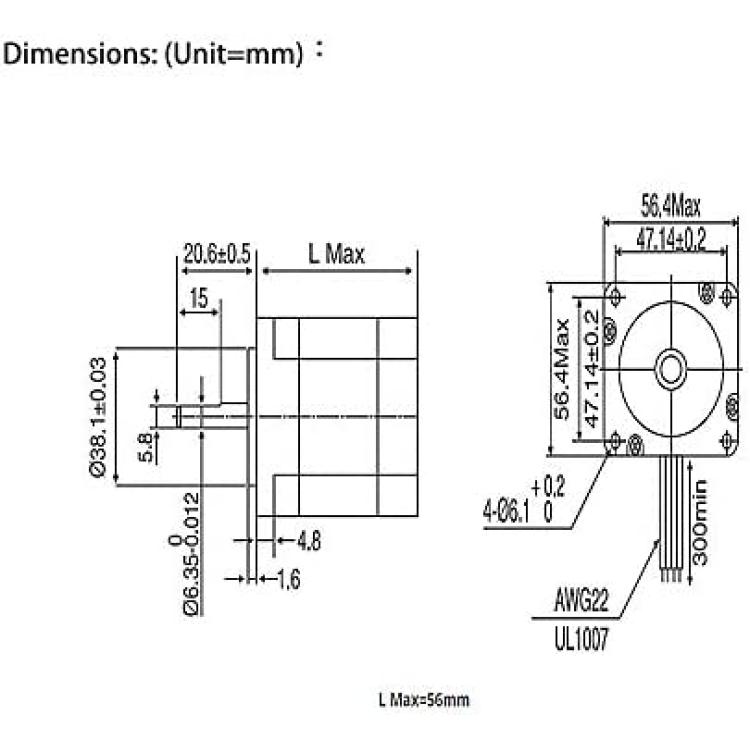

Physical Specification:

Frame Size        57x 57mm

Length      56mm

Shaft Diameter         ?6.35mm

Shaft Length    19mm

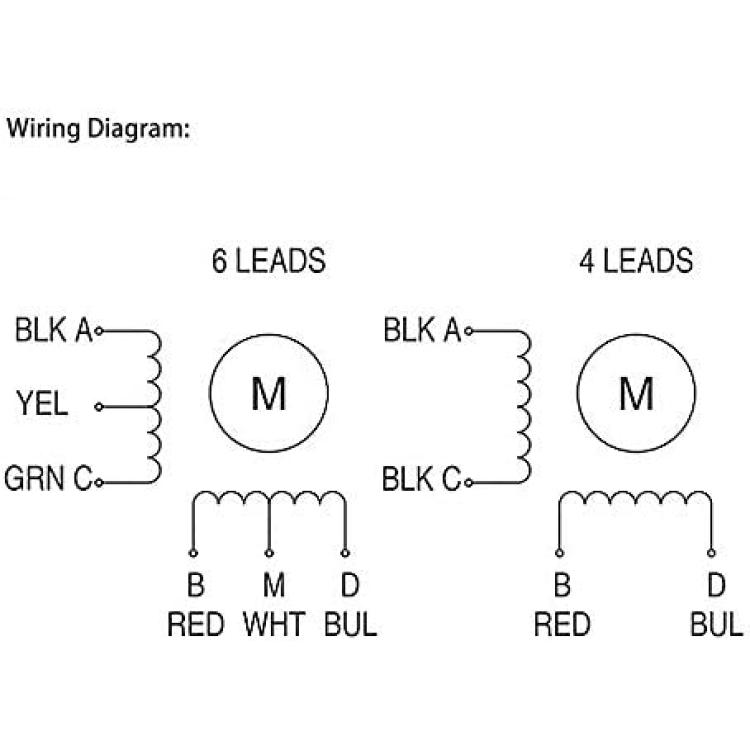

Motor Leads    6

Weight     0.68kg



Technical Parameters:

Step Angle Accuracy         ±5% (full step, no load)

Resistance Accuracy        ±10%

Inductance Accuracy        ±20%

Temperature Rise    80? Max. (rated current, 2 phase on)

Ambient Temperature     -20?~+50?

Insulation Resistance      100M? Min. 500VDC

Dielectric Strength  500V AC for one minute

Shaft Radial Play      0.02Max. 450g

Shaft Axial Play         0.08Max. 450g



Quality Assurance:

Warranty Period     12 months

Certificate       CE,ROHs, ISO/SGS9001
