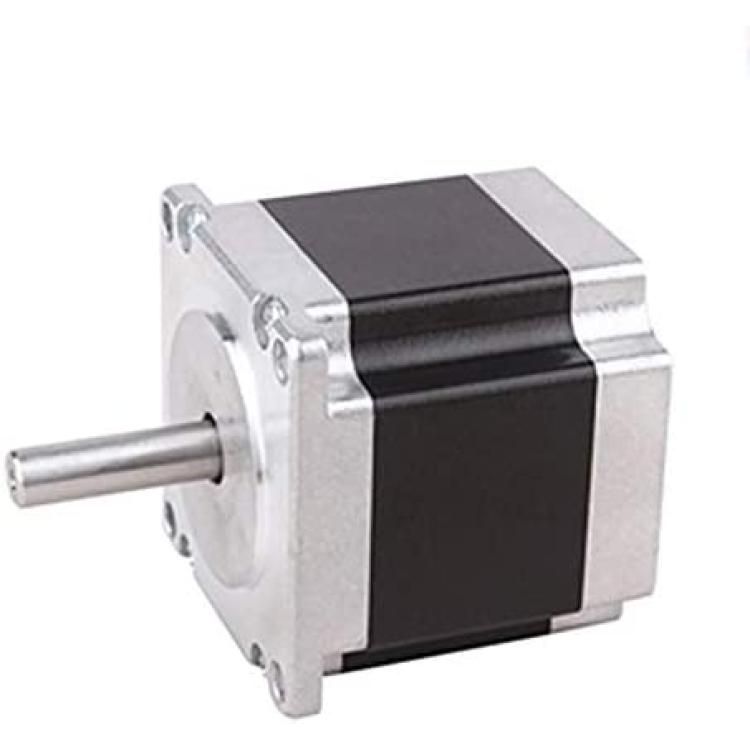

ATO 6-wire Nema 23 Stepper Motor, 2 Phase, 2A/3A, 1.8 Degree, Nema 23 Hybrid Stepper Motor for CNC /3D Printer (Rated Current/phase 3A)
About this product
*Rated Current/phase2A/3A
*Holding Torque0.72Nm, 1.8 degree, step angle(200 steps/rev)
*Warranty Period 12 months,with CE, ROHs, ISO/SGS9001 Certificate
*Application: CNC Router Engraving Milling/3D Printer, Lazer, Textile machine
*If you are not sure about the size or have any issue about the product or service, please dont hesitate to email us. We will answer you within 12h
Description
Nema 23 Hybrid Stepper Motor, 0.72Nm in51mm, 1.8 degree, step angle(200steps/rev). Phase current 2A/3A, allowing for a holding torque of 0.72Nm. Motortype is Hybrid Stepper Motor.
Â
Specification :Â Â Â
Electrical Specification:
Step Angle       1.8°
 HoldingTorque        0.72Nm
 RatedCurrent/phase      2A/3A
 PhaseResistance   1.65?/0.74?
 Inductance      2.2mH/0.9mH
 RotorInertia   230g-cm2
 FrameSize       57 x 57mm

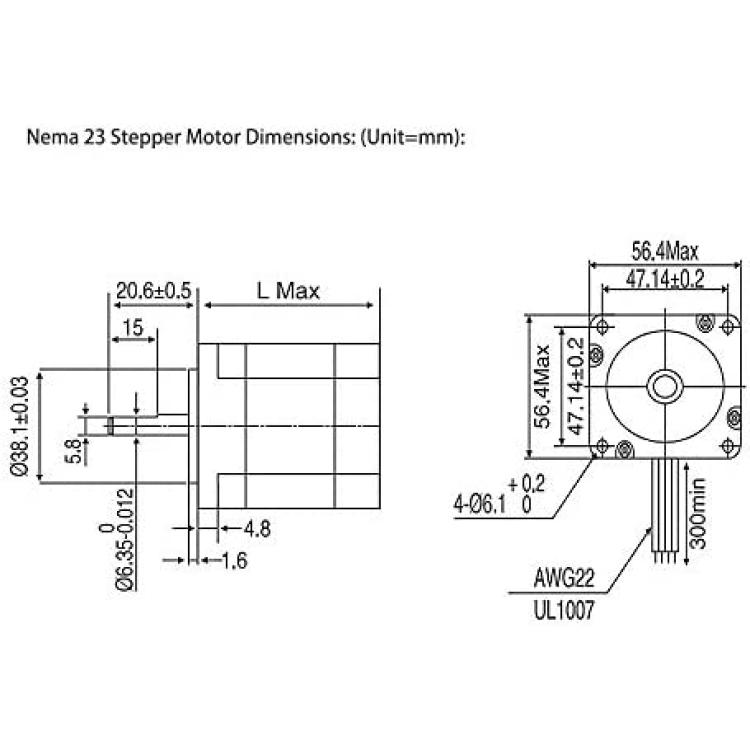

 Physical Specification:
 Length     51mm
ShaftDiameter        ?6.35mm
ShaftLength   19mm
 MotorLeads   6
Weight    0.59kg
 StepAngle Accuracy     ±5% (full step, noload)
 Technical Parameters:
Resistance Accuracy       ±10%
InductanceAccuracy       ±20%
TemperatureRise   80? Max. (ratedcurrent, 2 phase on)
AmbientTemperature    -20?~+50?
 InsulationResistance     100M? Min. 500VDC
 DielectricStrength 500V AC for one minute
ShaftRadial Play     0.02Max. 450g
ShaftAxial Play        0.08Max. 450g
Frequency Asked Questions
What is motormaker.net?
MotorMaker.net is an online retailer and bulk order e-shop for electric motor and controller products, range from standard products and customized products. Main production bases are located in Shenzhen, Dongguan, Wuhan, Shanghai and Chengdu. A professional team supports your order and customization design.
What service can be supported from motormaker.net?
MotorMaker.net offer product order and product customization service. All orders will be supported after-sales service, including quanlity gurantee, and technical support.
How to order products from motormaker.net?
You can online order product from motormaker.net by adding product to cart and got to checkout page. Multiple currency options are supported. You can choose suitable currency to place order. Before checkout, you should register account to submit order information.
How to delivery your order from motormaker.net to you?
For order delivery, motormaker.net provides three shipping options, express, air-flight and sea freight. You can choose one option according to your order.
How to inquiry product bulk price?
For the interested product, you can submit bulk price inquiry by bulk order inquiry form.
