Tuimiyisou Printer Stepper Motor Nema 17 3D Printer Two Phase 4 Wire Stepper Motor for 1.8Deg 17HD34008-22B Printer Accessory 4 Wire Stepper Motor for Printer

Nema 17 3D Printer Two-phase 4-wire Stepper Motor for 1.8Deg 17HD34008-22B
100% Brand new and high quality

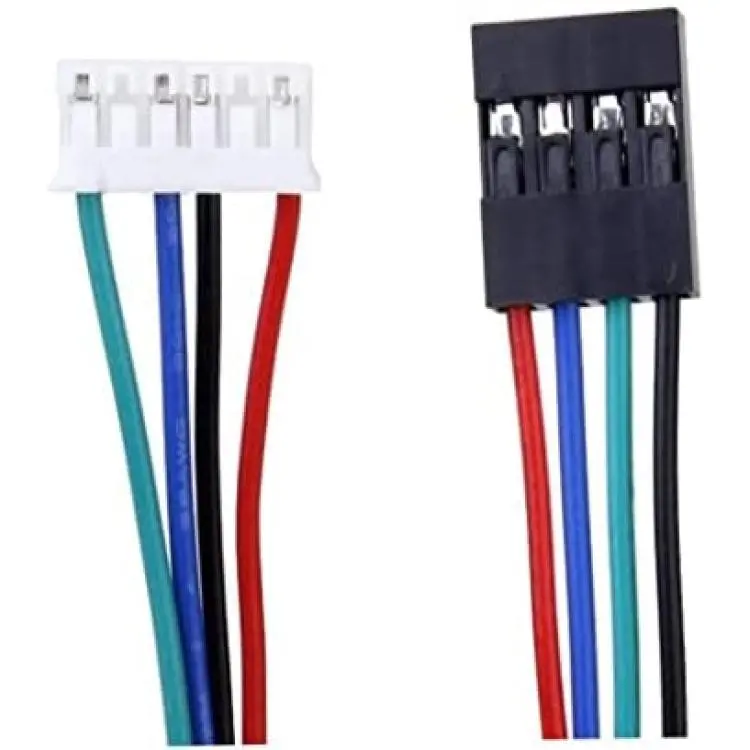

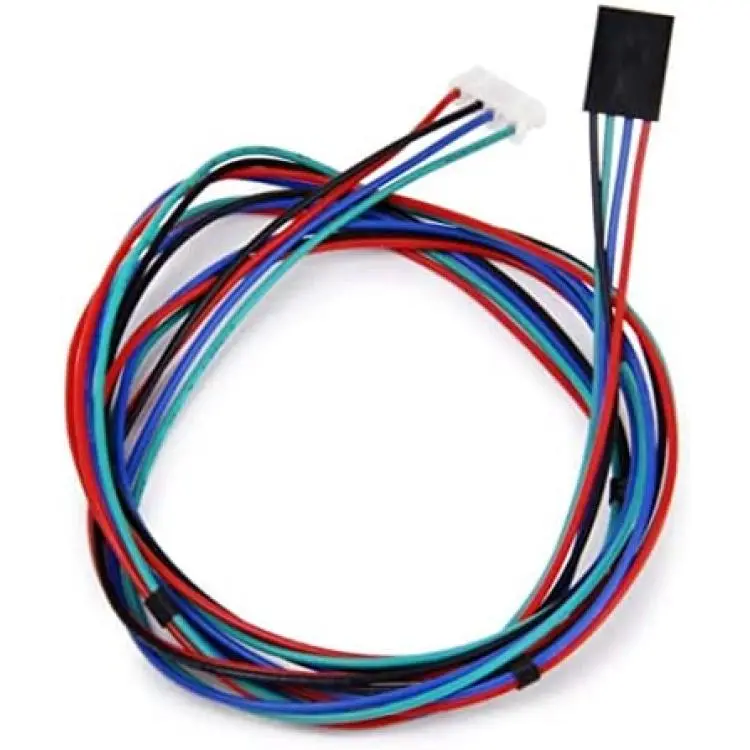

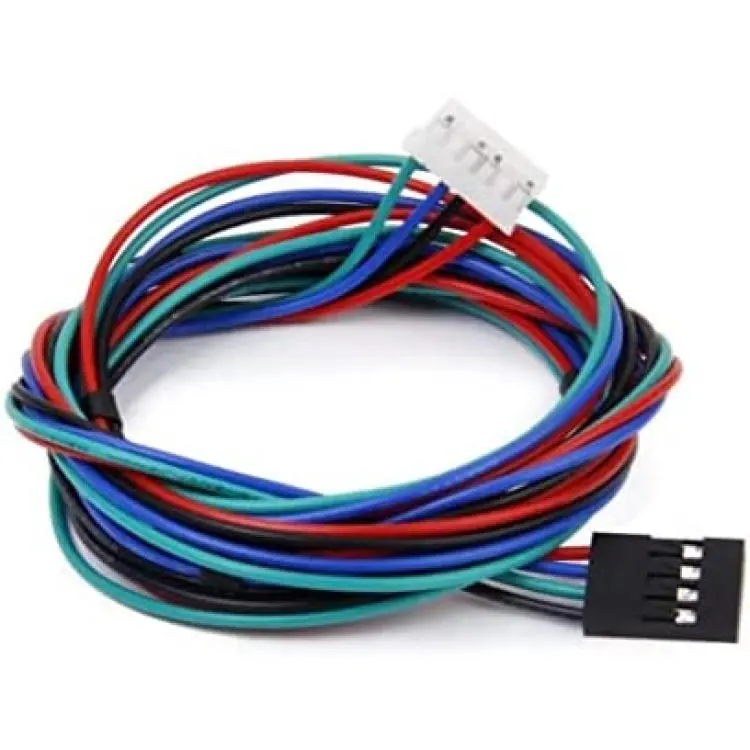

1M wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled?up
Suitable for 17HD34008-22B mixing type stepping motor
Outside view: Show as the picture
Drive mode: Chopping wave constant current drive
Description:
100% Brand new and high quality
1M wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled?up
Suitable for 17HD34008-22B mixing type stepping motor
Outside view: Show as the picture
Drive mode: Chopping wave constant current drive
Exciting mode: Two-phase 4-wire, it is available for rotation of forward and reverse
Turn to: The order of power is AB-BC-CD-DA, from shaft end see C.W
Rated current (one-phase): 1.5A DC
Rated voltage: 3.45V
Stepping angle: 1.8
Specifics:
Operating Conditions: Environment Temperature: -20~50?; RH: 90%MAX; Mounting Position: Axis horizontal or vertical installation
Direct-current winding resistance (25?): 2.3±10%
Wnding inductance: 3mH±20%
Cogging torque: 12mN.m REF.
Holding torque: 300mN.m(I=1.5A)
Max. no-load starting frequency: 1500pps
Max. no-load running Frequency: 8000pps
Temperature rise:
