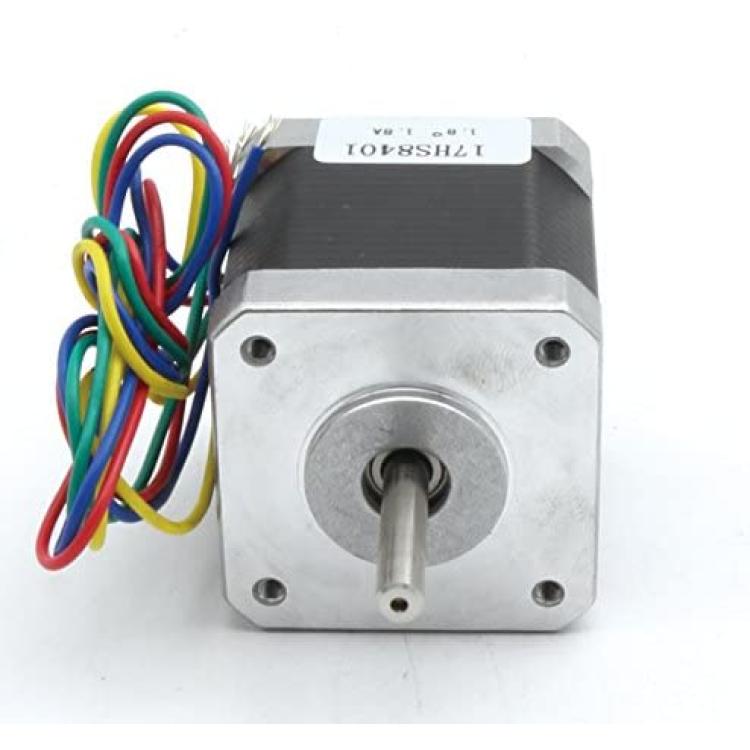

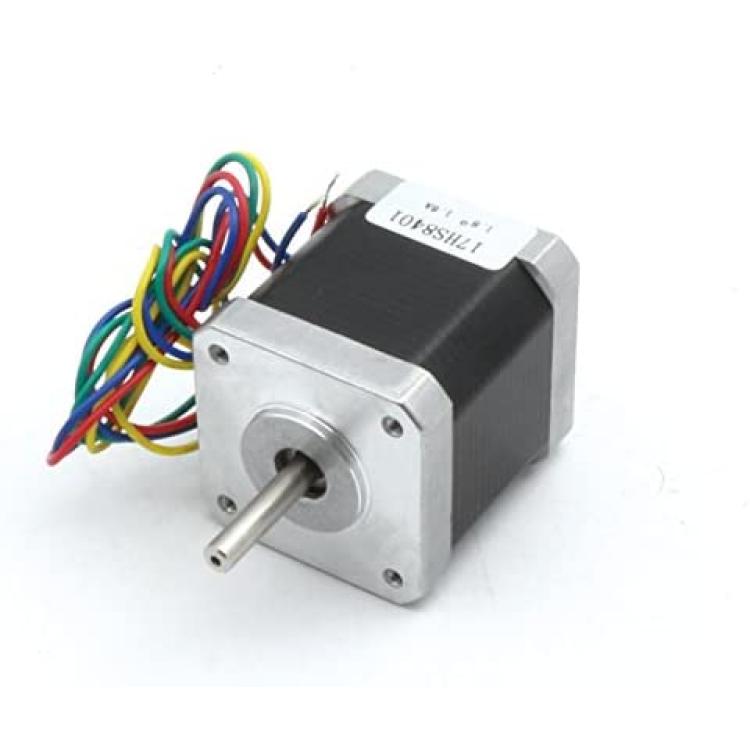

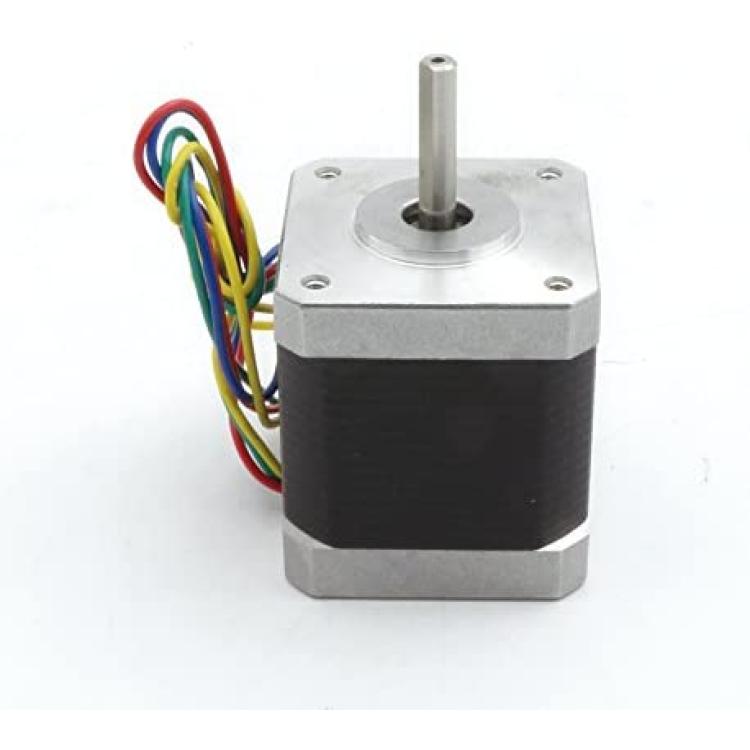

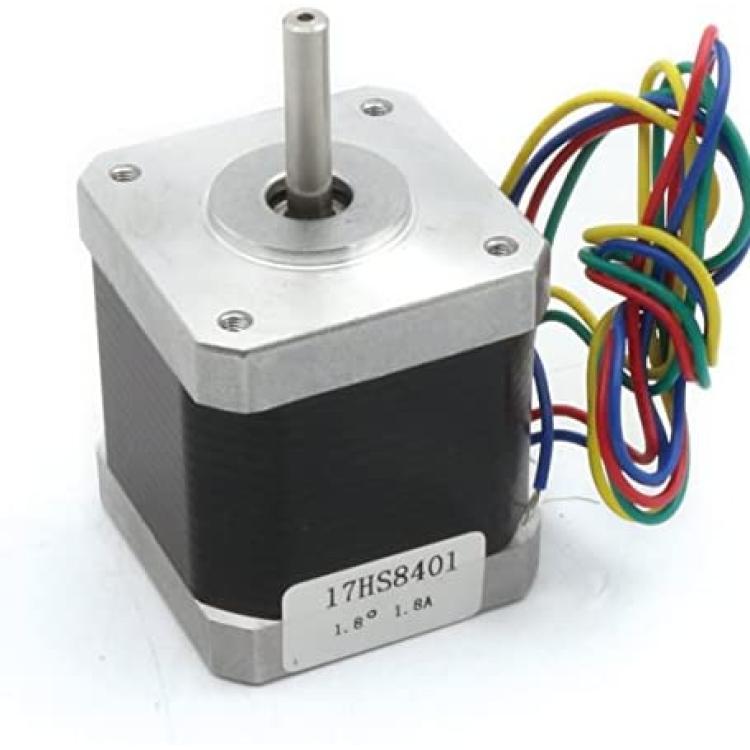

Nema 17 Stepper Motor 48mm 78oz-in 1.8A High Torque 52N.cm 2 Phase 1.8 Deg 4 Wire for 3D Printer/CNC Router XYZ Axis/Engraving Machine
About this product
*【Model】17HS8401
*【High torque】78oz-in 52N.cm holding torque
*【Size】42x42x48mm (1.65"x1.65"x1.89")
*【Advantage】Made of high-quality motor steel, tough and durable. The side wall has a frosted texture to increase friction.
*【Usage or Application】This products are widely used in engraving machine,3D printer,embroidery machine,textile automation,printing,packaging and other industries automation equipment.
Description
Physical Specification:
Connection:
Usage or Application:
This products are widely used in engraving machine, printer, medical equipment,embroidery machine, stage lighting, textile automation, printing,packaging and other industries automation equipment.
1x 17HS8401 Nema17 stepper motor L48mm,1.8A, 78oz-in ,52Ncm, 4 wires ( single shaft) Stepper motors red wire connect to drivers A+ port Stepper motors green wire connect to drivers A- port Stepper motors yellow wire connect to drivers B+ port Stepper motors blue wire connect to drivers B- port Step angle accuracy:+ - 5%(full step,not load)Resistance accuracy: + - 10%Inductance accuracy:+ - 20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature: 20deg-50degInsultion Strength: 500VAC for one minuteFrame Size:42x42x48 mmBody Length:48mmNumber of Leads: 4Weight:0.48kgRed: A+Green: A-Yellow: B+Blue: B-Frequency Asked Questions
