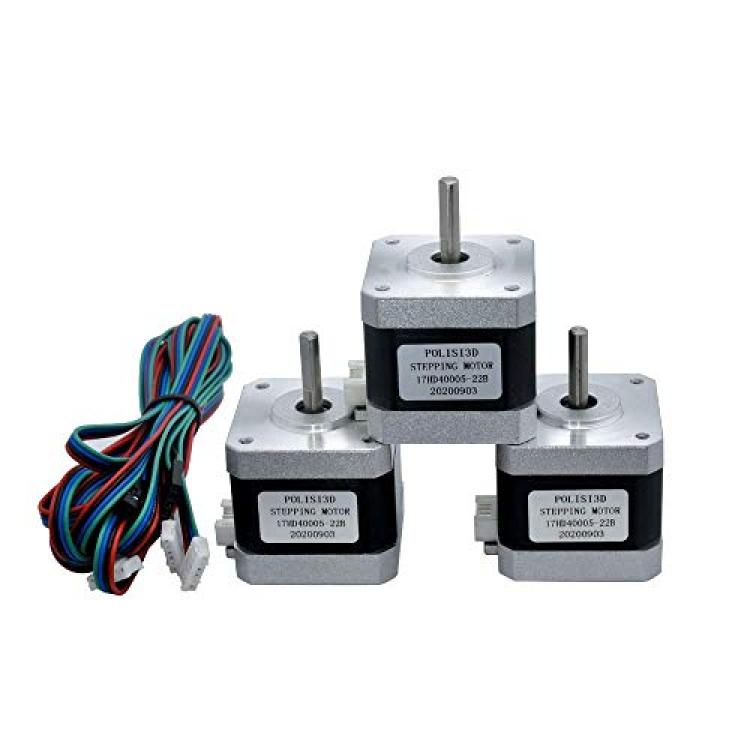

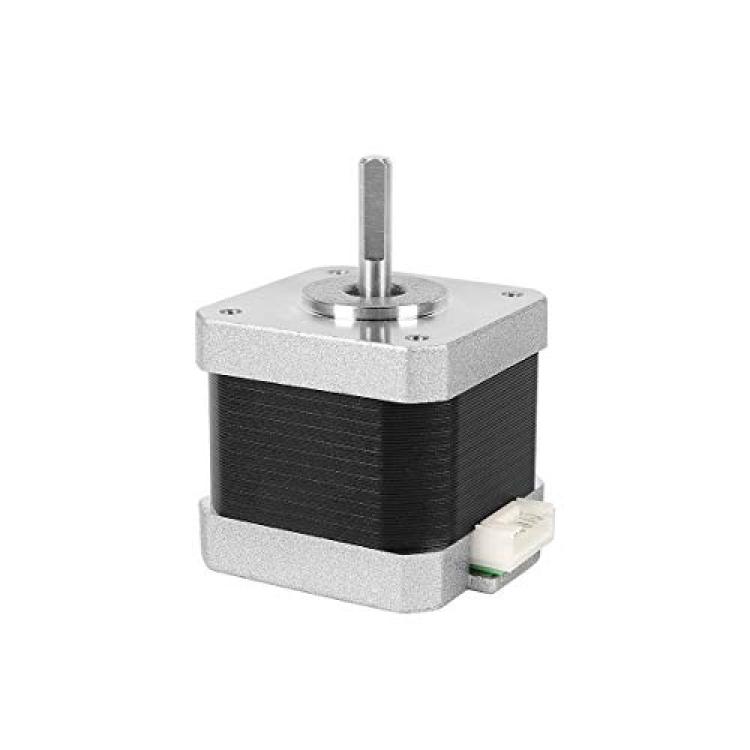

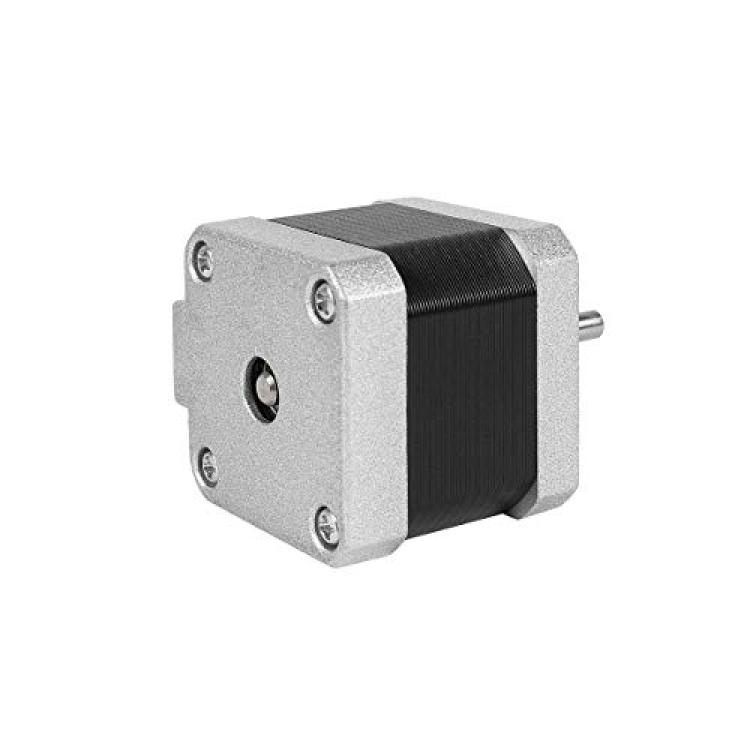

POLISI3D 3-Pack High Torque 42N.cm 3D Printer Motors Nema 17 Stepper Motor 42 Stepping Motor 1.5A 1.8 Degree 2 Phase 4-Lead with 1m Cable and Dupont Connector (3)
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 8.39 x 3.23 x 3.11 inches; 10.58 Ounces
*Date First Available : November 28, 2019
*Manufacturer : POLISI3D
Description

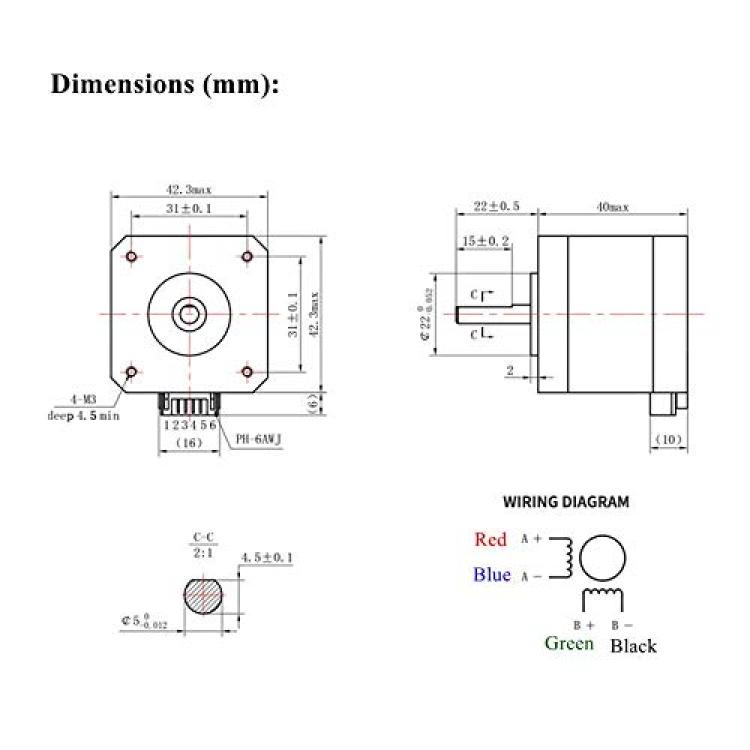

Specifications: 1. Step angle: 1.8° ; 2. Holding Torque: 420mN.m ?I=1.5A?; 3. Rated Current/phase: 1.5A ; 4. Phase Resistance: 1.8? ; 5. Inductance: 7.8mH+/-20%(1KHz) ; 6. Frame Size: 42 x 42mm ; 7. Body Length: 40mm ; 8. Shaft Diameter: 5mm ; 9. Shaft Length: 20mm ; 10. D-cut Length: 15mm ; 11. Number of Leads: 4; 12. Weight: 280g ; 13.Phase : 2 Phase
