Iverntech 42 Nema 17 Stepper Motor 23mm Body for Titan Extruder 3D Printer 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 3.3 x 2.9 x 2.1 inches; 4.66 Ounces
*Item model number : AW0014
*Date First Available : March 16, 2019
*Manufacturer : Iverntech
Description
Item specifics:
Product name: 3D Printer Titan Stepper Motor
Item type: Motor

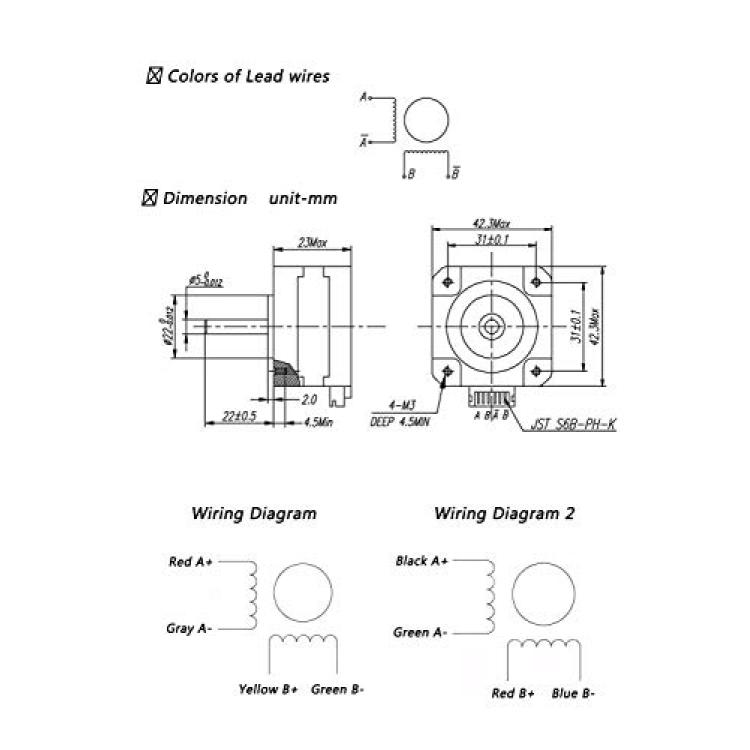

Motor Size(L * W * H):42*42*23mm
Phase: 2 Phase
Voltage: 4.1V
Current: 1A/Phase
Resistance: 4.1 ± 10%?/Phase
Inductance: 4.1 ± 20% mH/Phase
Holding Togque: ?13N.cm(18.5oz.in)
Detent Togque: 2.0N.cm(2.85oz.in)
Insulation Class: B
Step Angle: 1.8 deg.±5%
Weight: 132g

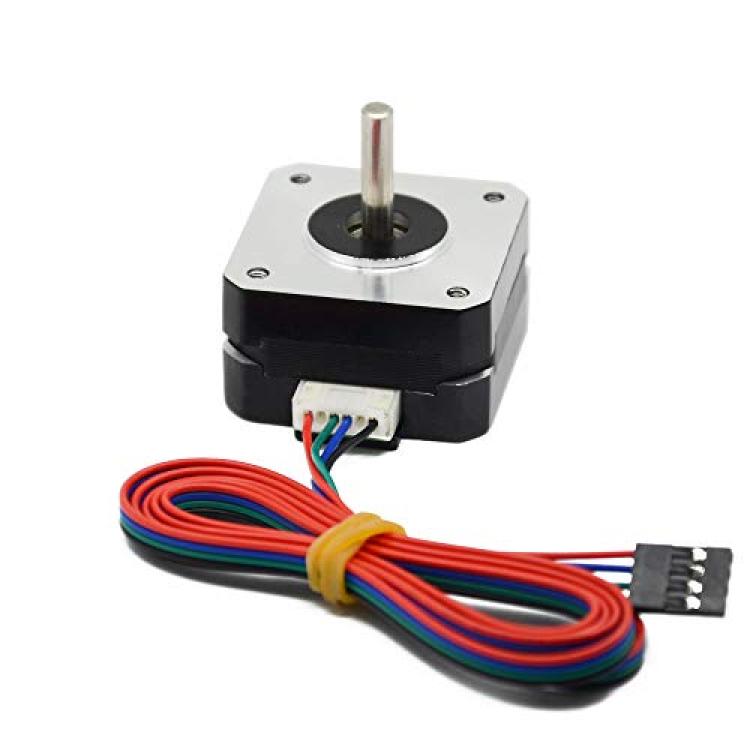

Cable Length 1M
Packing List:
1 x Stepper Motor
1 x 1M Cable
Note: Make sure the motor connect to a constant current or chopper drive controller before you test motor
Connecting the motor directly to a power supply will destroy the motor
