Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics

Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics

Name: Iverntech Nema 17 Stepper Motor 42x60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics
SKU: MM5089
Availability: InStock

Product Code: MM5089
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*42-60 nema 17 stepper motor, size 42 * 42 * 60mm

*Come with 1M (39.3") Cable

*High torque -Holding torque up to 0.7Nm. Low loss stators have better high speed performance

*Widely work for Most 3D Printer CNC Machine and Robotics

*For the sequence of the motor cable difference, you need swap middle two wires (the green and the red) of one end if you want use it for ender 3 series

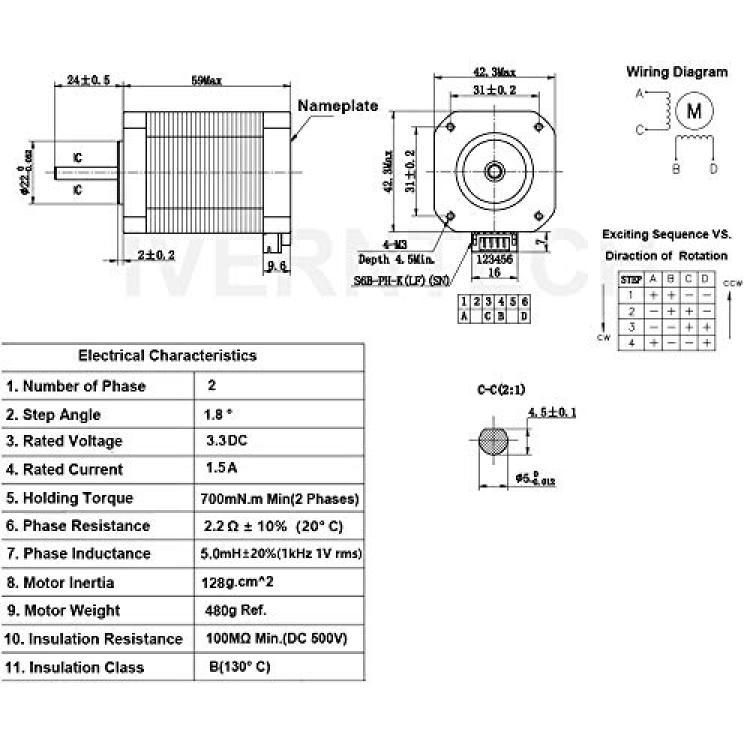

Description

Iverntech 42-60mm Nema 17 stepper motor

Motor Type: Bipolar Stepper
Number of Phase: 2
Number of Leads: 4
Step Angle: 1.8 deg.
Rated Voltage: 3.3V DC
Rated Current: 1.5A
Holding Torque: 700mN.m Min
Phase Resistance: 2.2ohms±10%?20??
Phase Inductance: 5.0mH±20%(1KHz)
Rotor inertia: 128g.cm2
Item Weight: 480g

Package List:

1 x 42-60mm Nema 17 Stepper Motor

1 x 1M motor cable

Tags: Nema 17 Stepper Motor, 3D Printer Stepper Motor, CNC Machine Stepper Motor, Robotics Stepper Motor, Iverntech Stepper Motor, Bipolar Stepper Motor, 42x60mm Stepper Motor, 1.8 Degree Stepper Motor, 1.5A Stepper Motor, 2 Phase Stepper Motor
