Creativity Nema17 Stepper Motor, 4 Lead Stepper Motor 42 Nema 17 Motor with 1m HX2.54 Cable 42BYGH 1.7A for CNC XYZ 3D Printer (17HS4401, 1PCS)
Availability: Pre-Order, Inquiry Price
About this product
*✪ Durable & Tough: Creativity mini motor uses high hardness metal, tough and durable. After testing, it far exceeds the competitors motor. And the matte texture of the sidewalls increases friction.
*✪ Motor Parameters: Bipolar Nema 17 Stepper Motor with high torque. Each phase current is 1.7A & phase reslstance 1.5ohms, and the holding moment is 40Ncm.

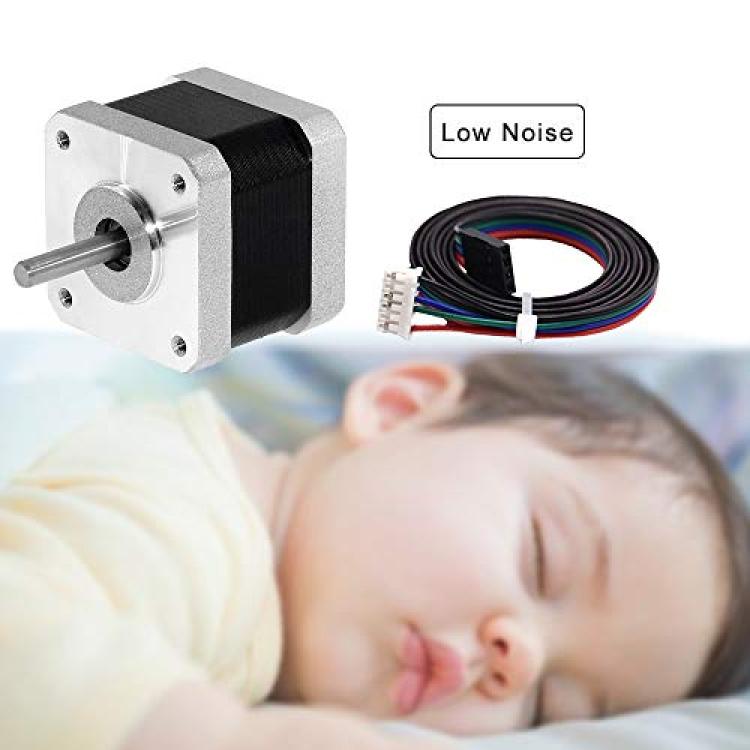

*✪ Low Noise: Creativity use an improved manufacturing process to achieve better matching accuracy and a more stable internal structure for all components of the stepper motor. This effectively reduces vibration and noise while the motor is running.

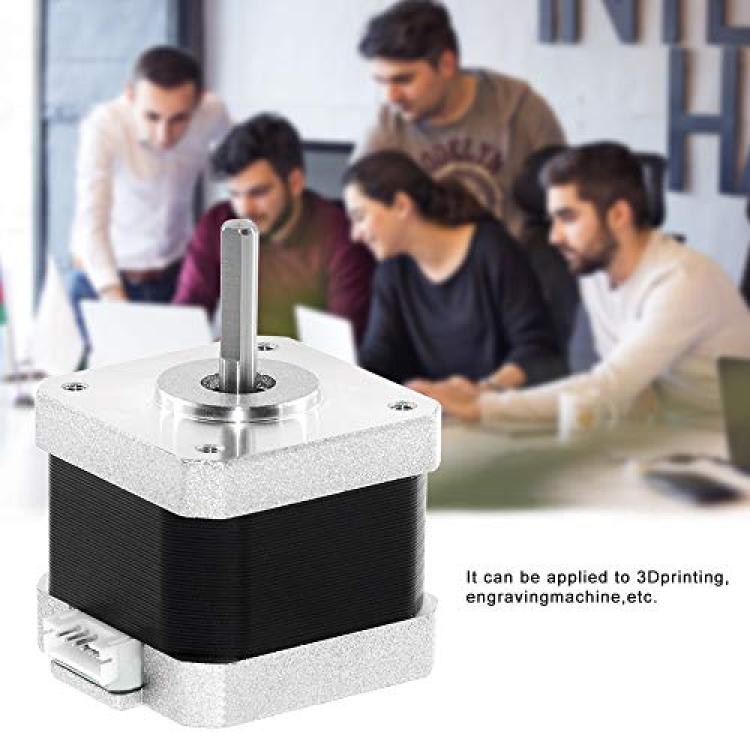

*✪ Wide Application: This small stepper motors can be used in various area, such as 3D printer; stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; automation equipment etc.
*✪ Excellent Service: Each nema 17 stepper motor has undergone a rigorous quality control ex works . If need further please fell free contact us, we very happy to assist you.
Description
Electrical Specification:
Motor Type: Bipolar Stepper
Step Angle: 1.8°
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.7A
Phase Resistance: 1.86ohms
Recommended Voltage: 12-24V
Inductance: 3.55mH±20%(1KHz)
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute

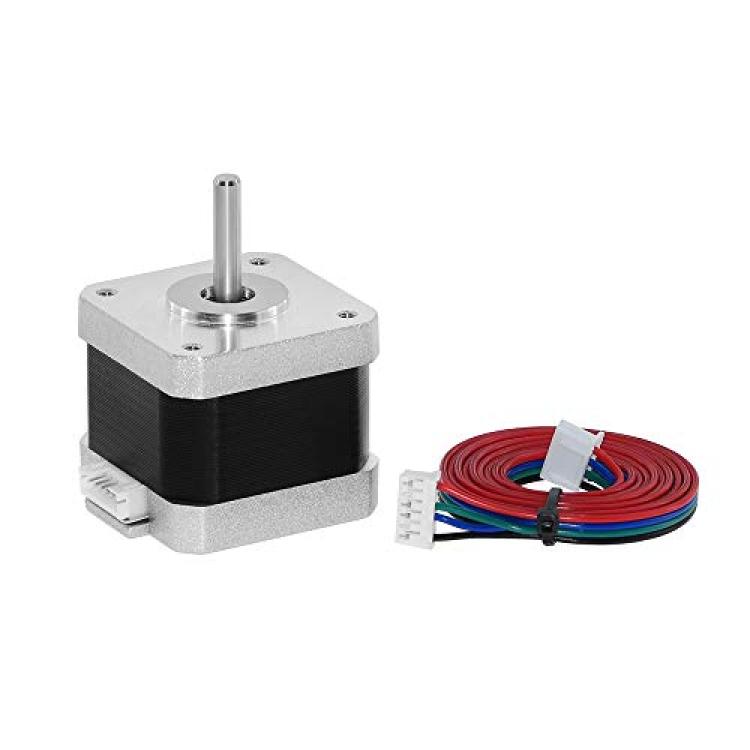

Package list:
1* Nema17 Stepper Motor 17HS4401

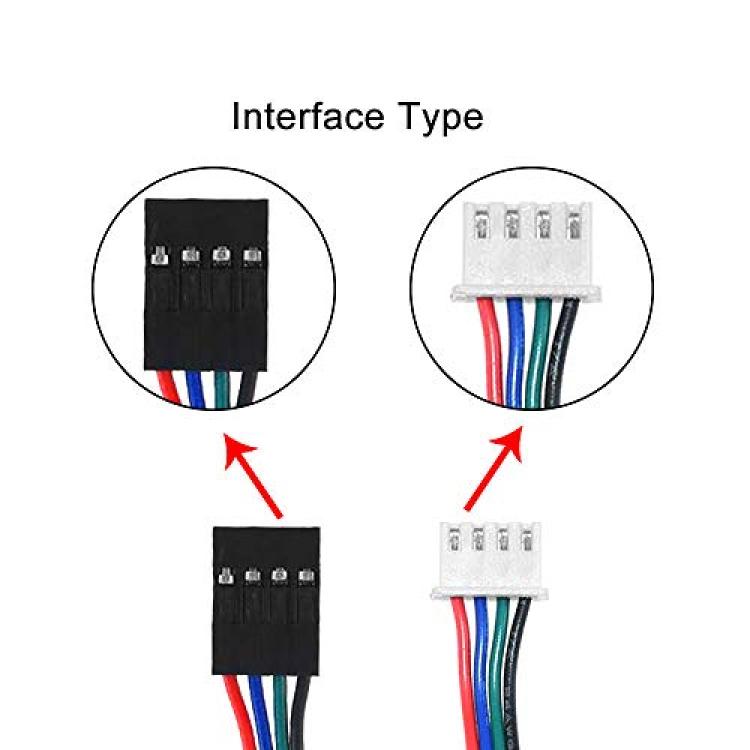

1* HX2.54 Cables
Wiring:
Black (A+)
Green (A-)
Red (B+)
Blue (B-)
Wide Application:
Stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment
Warm Tips:
Please note that this motor cannot be connected to the power supply directly. It should be connected to a constant current driver, otherwise, it will destroy the motor. Please ensure that the output current is not higher than the rated current of the motor (1.7A) or exceed the working voltage range of the motor (DC 9-42V).
