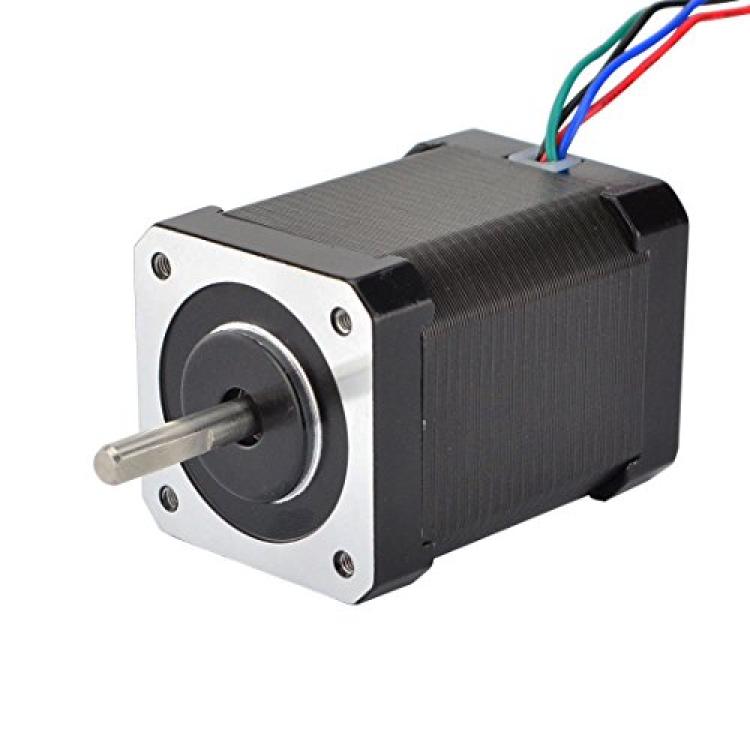

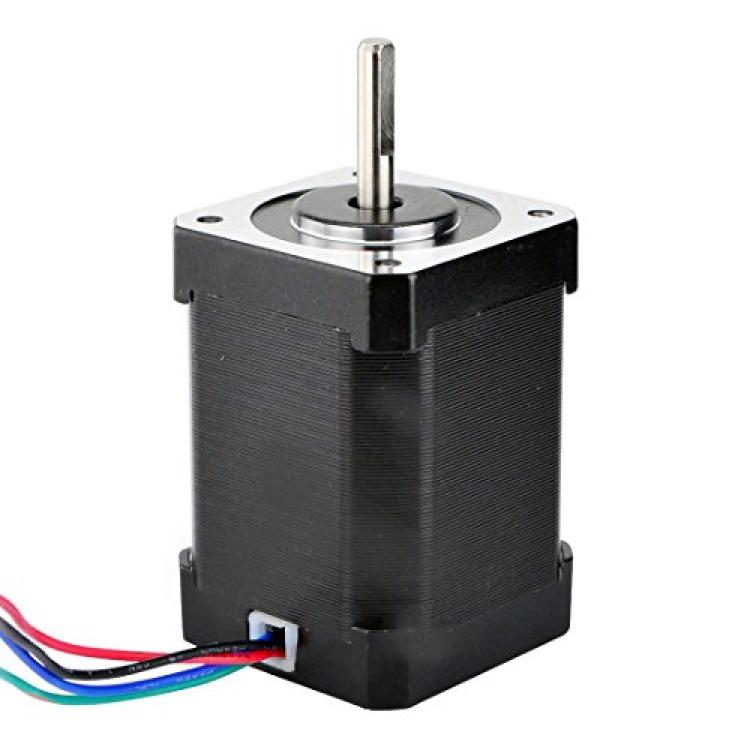

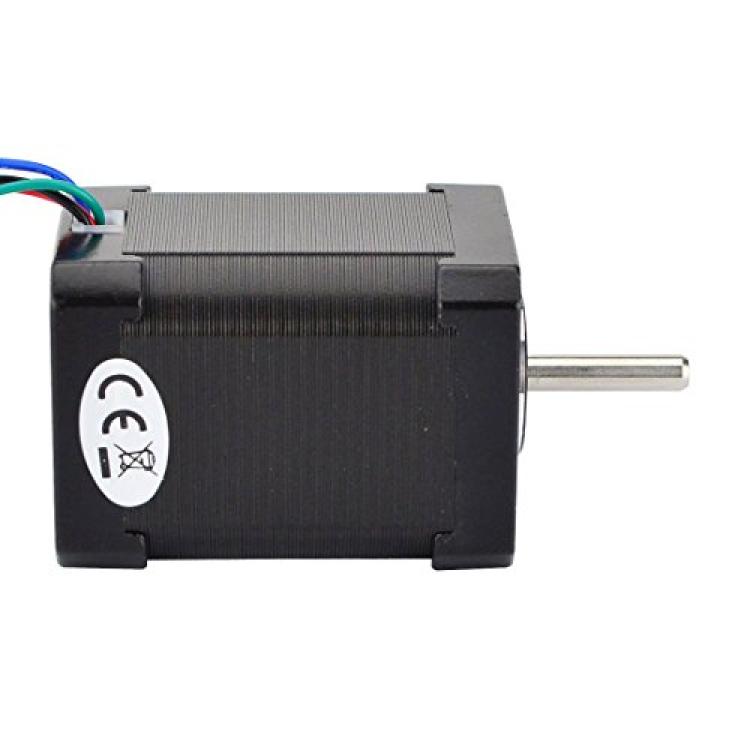

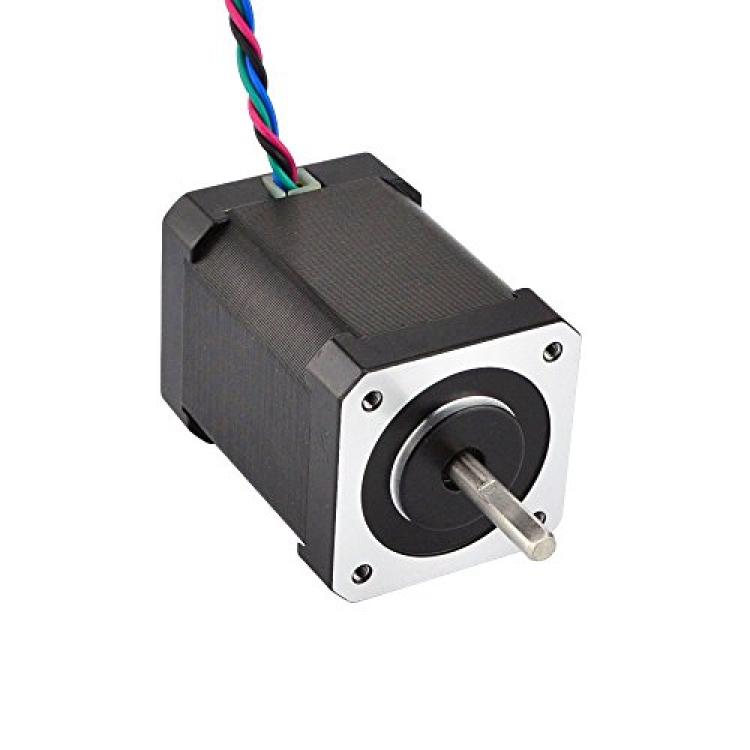

STEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in/65Ncm 2.1A Extruder Motor
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Product Dimensions : 5 x 2 x 3 inches; 1.1 Pounds

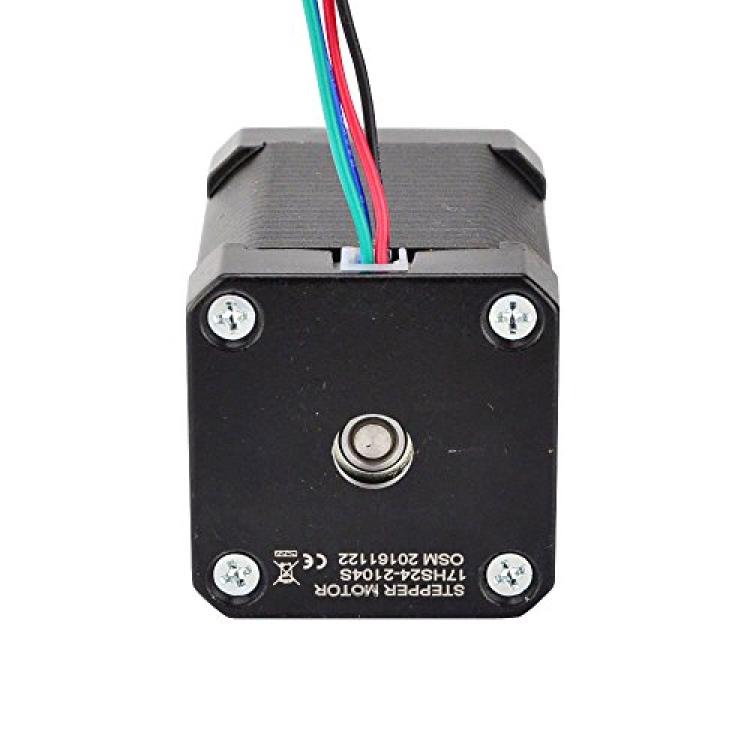

*Item model number : 17HS24-2104S
*Date First Available : November 15, 2014
Description
This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).
Electrical Specification:
* Manufacturer Part Number: 17HS24-2104S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 65Ncm(92oz.in)
* Rated Current/phase: 2.1A
* Phase Resistance: 1.6ohms
* Inductance: 3mH+/-20%(1KHz)

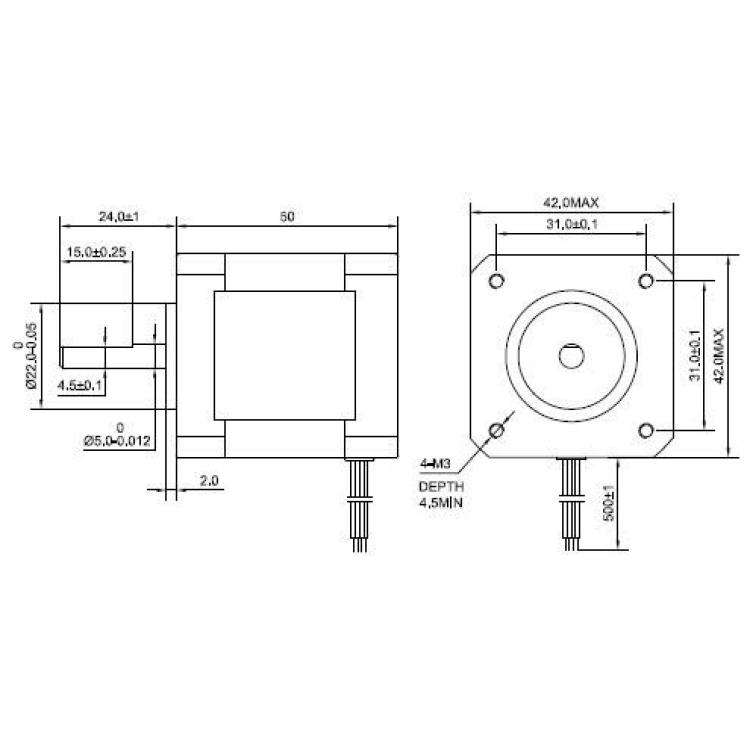

Physical Specification:
* Frame Size: 42 x 42mm
* Body Length: 60mm
* Shaft Diameter: 5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 500g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
