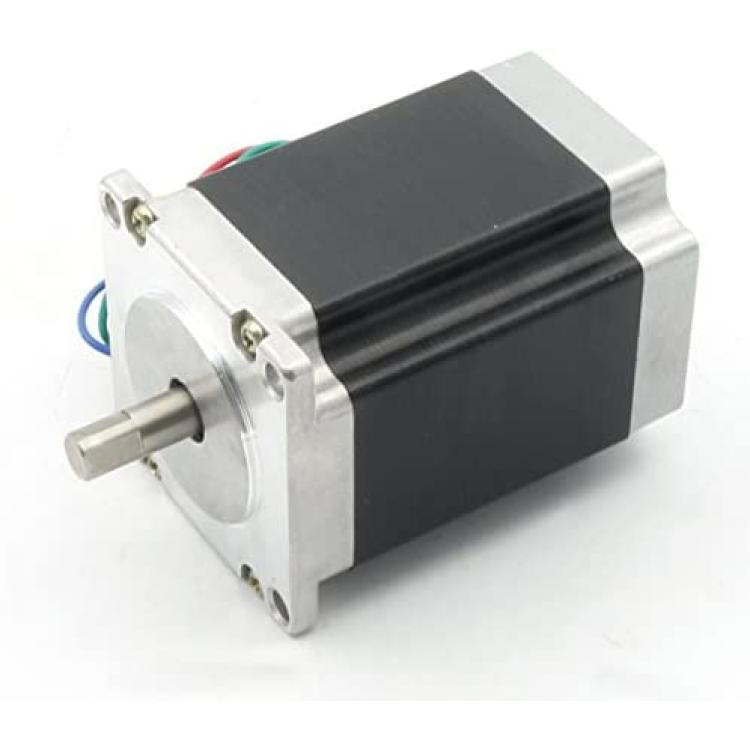

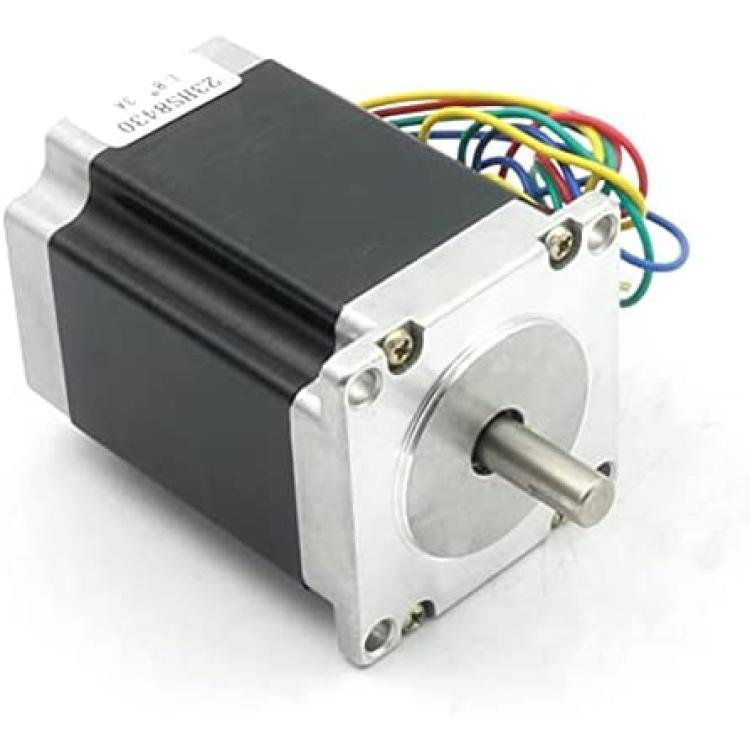

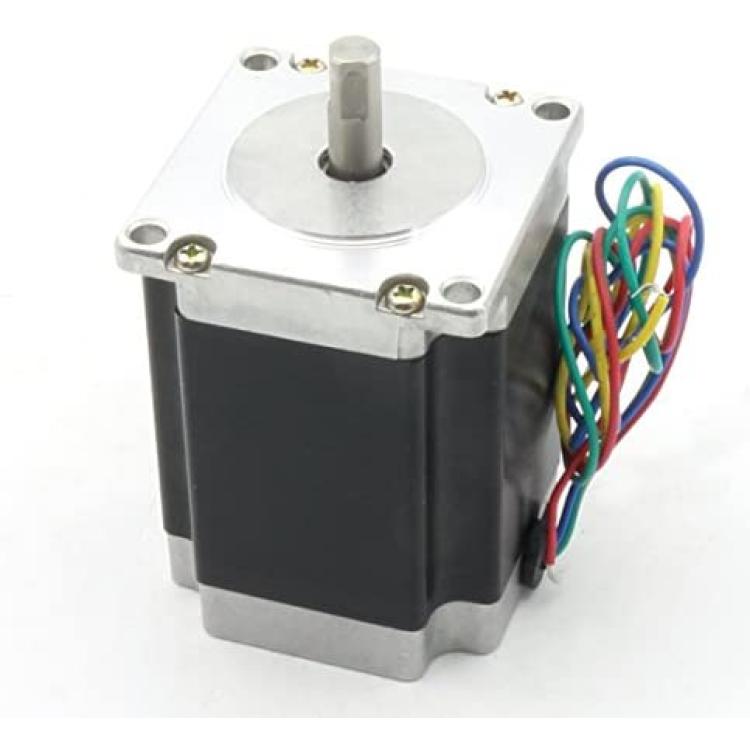

Nema 23 Stepper Motor 76mm 270oz.in 3A CNC Hybrid 2 Phase High Torque Stepping Motor 180Ncm 4 Lead For CNC Router XYZ Axis Milling Engraving Machine/3D Printers 23HS8430

Nema 23 Stepper Motor 76mm 270oz.in 3A CNC Hybrid 2 Phase High Torque Stepping Motor 180Ncm 4 Lead For CNC Router XYZ Axis Milling Engraving Machine/3D Printers 23HS8430

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM760
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*【Model】23HS8430

*【High torque】270oz-in 180N.cm holding torque

*【Size】57x57x76mm (2.24"x2.24"x2.99")

*【Advantage】Made of high-quality motor steel, tough and durable. The side wall has a frosted texture to increase friction.

*【Application】 1:Semiconductor Equipment;Application 2:Milling Machine, Engraver Machine ; Application 3:CNC Routers4.3D printers

Description

Physical Specification:

This is the high torque model for Nema 23 stepper motor, it with 1.8 degree.

rated current is 3A, allowing for a holding torque of 180Ncm(270oz.in).

Usage or Application

This products are widely used in engraving machine, printer, medical equipment,embroidery machine, stage lighting, textile automation, printing,packaging and other industries automation equipment.

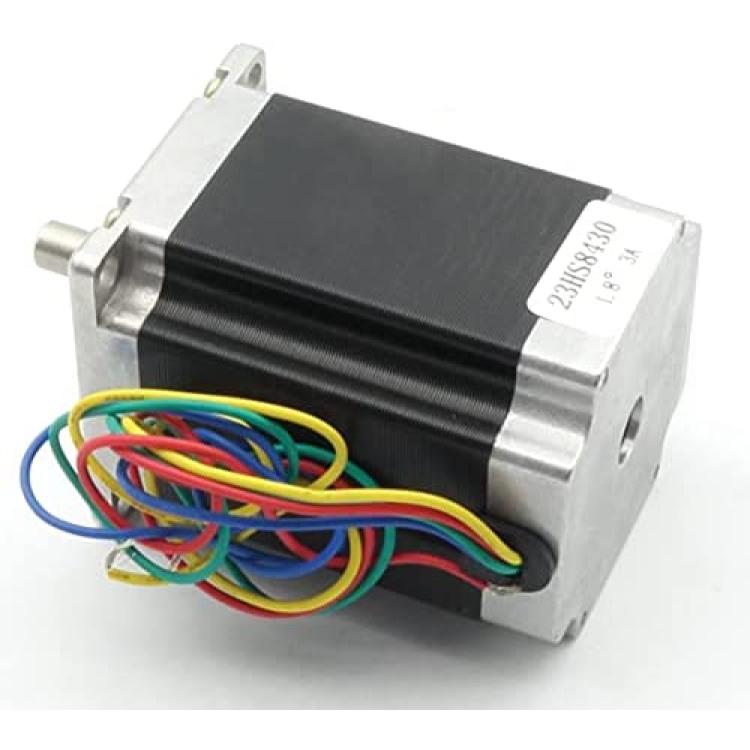

1 x 23HS8430 Nema23 Stepper Motor (single shaft) (76mm, 270oz-in,3A) Stepper motors red wire connect to drivers A+ port Stepper motors green wire connect to drivers A- port Stepper motors yellow wire connect to drivers B+ port Stepper motors blue wire connect to drivers B- port Step angle accuracy:+ - 5%(full step,not load)Resistance accuracy: + - 10%Inductance accuracy:+ - 20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature: 20deg-50degFrame Size: 57 x 57 x 76 mmBody Length: 76mmNumber of Leads: 4Weight: 1.2kgSingle shaft is 8mm diameter,21mm length
