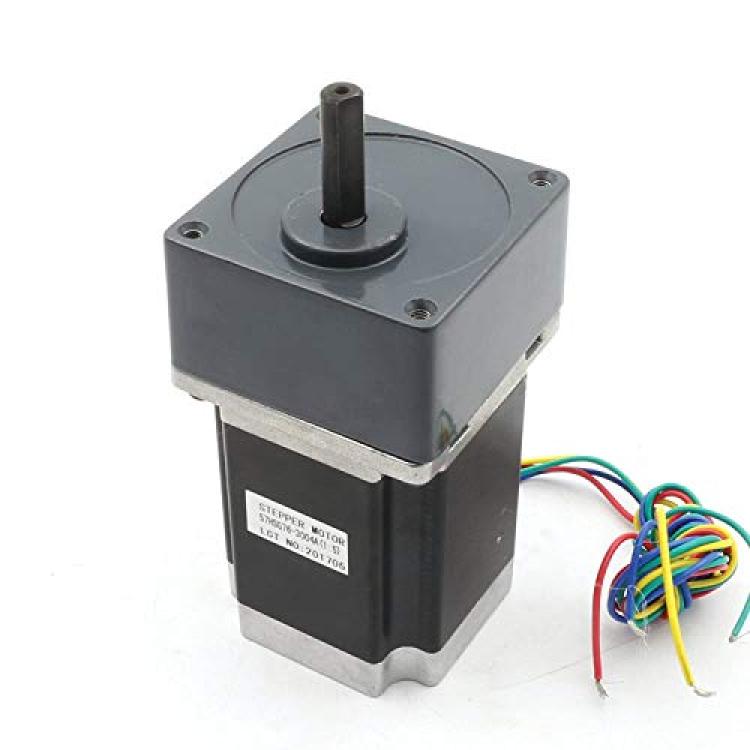

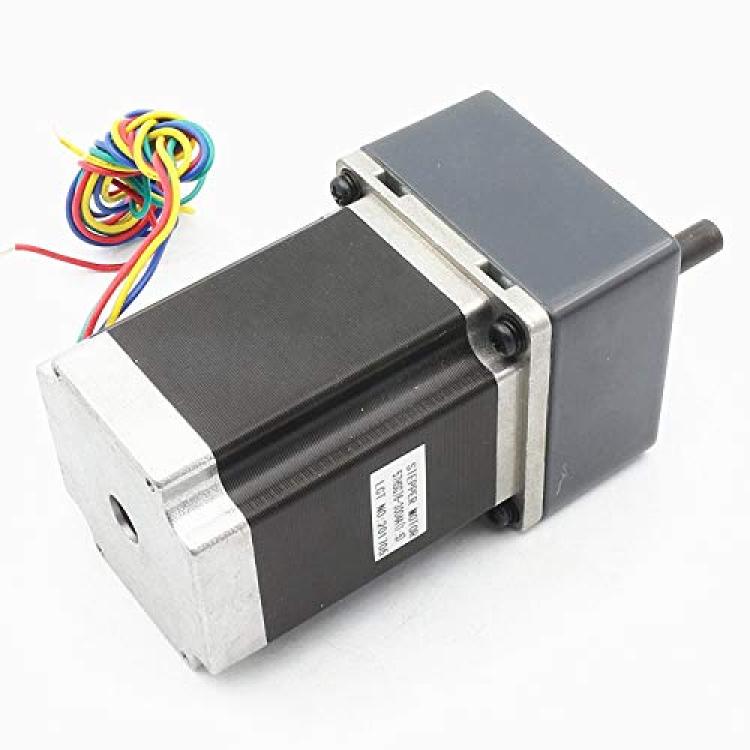

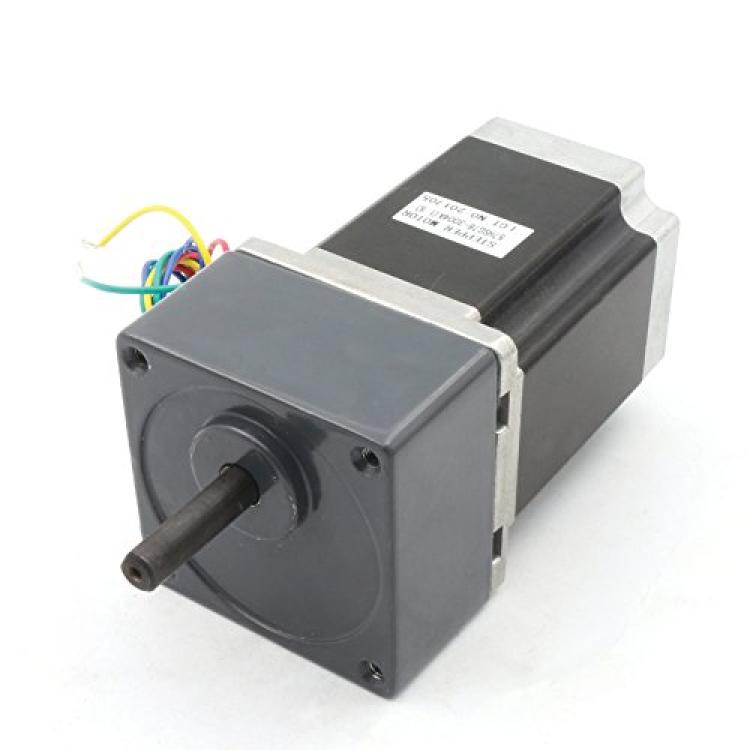

Ratio 1:5 Gearbox Nema23 Geared Stepper Motor 76mm 850oz-in 3A 4-Lead High Torque Speed Reduction Motor with Gear Box Motor for CNC Milling Lathe Router Engraving Machine

Package include:

1 x 57HSG76 Nema23 geared stepper motor 1:5

High quality NEMA23 Gearbox stepper motor:

General Specification:

Step Angle: 1.8degree

Current : 3A

Holding Torque :850oz.in

Motor Length : L76mm

Phase:2

Type:Hybrid

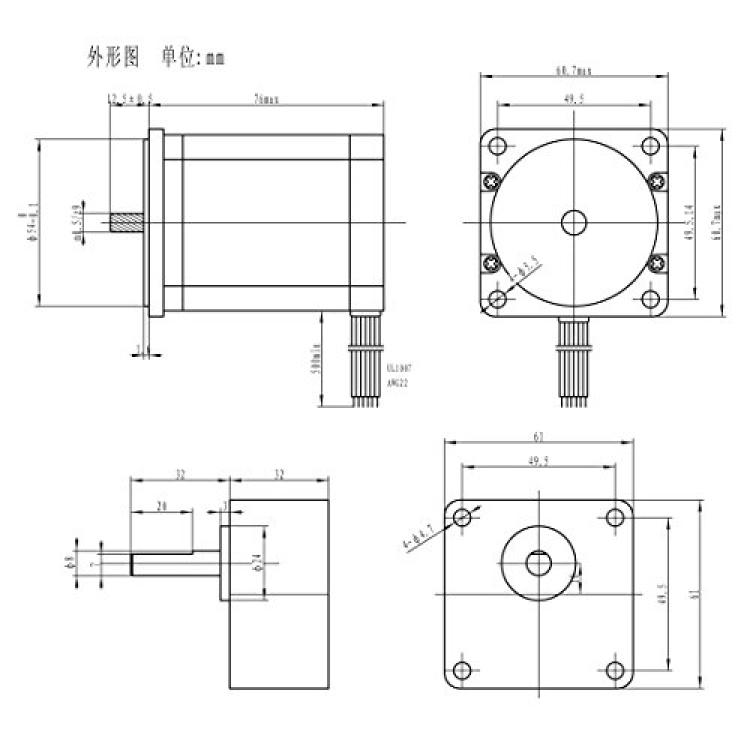

Size:57x57x76mm

Lead : 4 Lead

Reduction ratio:1:5

Step angle accuracy: ±5%(full step,not load)

Resistance accuracy: ±10%

Inductance accuracy: ±20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg~+50deg

Insulation resistance:100M?  Min,500VDC

Insultion Strength--------500VAC for one minute
