Nema23 Stepper Motor Planetary Gearbox Speed Reducer 7 arc-min for 8mm Shaft 57mm Motor 3000rpm Gear Reducer Ratio 50:1 IP65 for CNC Router Benchtop Lathe Machine/3D Printer (50:1)
About this product
*♞【Product】Planetary Reducer for Nema23 (Flange=57mm) Stepper Motor.Frame Size: 60 x 60 mm;Adapter motor: for 8mm Shaft Nema 23 Stepper Motor;Gear Ratio: 50:1
*♞【Backlash Precision】≤ 7 Arcmin ; Full load efficiency: ≥ 96% ; Protection class: IP65
*♞【Maximum radial force/torque】400N;Maximum axial force/torque:300N
*♞【Advantages】Special grease, non-solidifying, long-lasting lubrication,lifespan is around 20000h;High-precision gears, low noise, professional engineers design, high hardness, 20CrMnTi steel, hard hobbing after carburizing, hardness up to 50 degrees, wear-resistant, no tooth chipping
*♞【Applications】This planetary gearbox is mainly used to reduce speed and increase holding torque , widely applied in CNC machine, such as engraving machine, mill, lathe, work bench, grinding machine etc.
Description

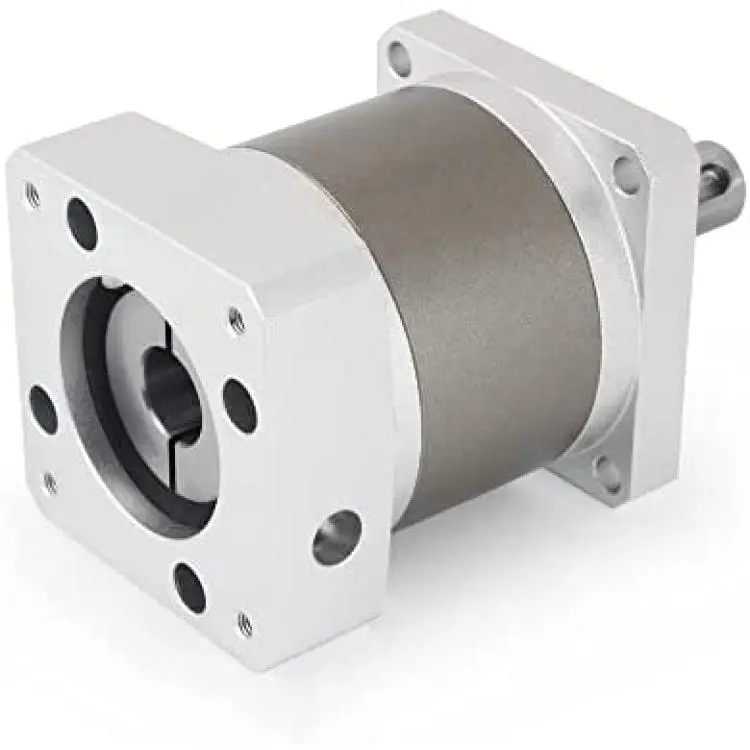

This high-precision planetary gearbox has a 7 arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.This inline planetary gearbox built-in an input shaft coupling which can match any standard 8mm diameter shaft of Nema 23 stepper motor.
Planetary Reducer for Nema23 (Flange=57mm) Stepper Motor.
Frame Size: 60 x 60 mm;Adapter motor: for 8mm Shaft Nema 23 Stepper Motor
Backlash Precision: ? 7 Arcmin ; Full load efficiency: ? 96% ; Protection class: IP65
Maximum radial force/torque:400N;Maximum axial force/torque:300N
Special grease, non-solidifying, long-lasting lubrication,lifespan is around 20000h
High-precision gears, low noise, professional engineers design, high hardness, 20CrMnTi steel, hard hobbing after carburizing, hardness up to 50 degrees, wear-resistant, no tooth chipping
This planetary gearbox is mainly used to reduce speed and increase holding torque , widely applied in CNC machine, such as engraving machine, mill, lathe, work bench, grinding machine etc.

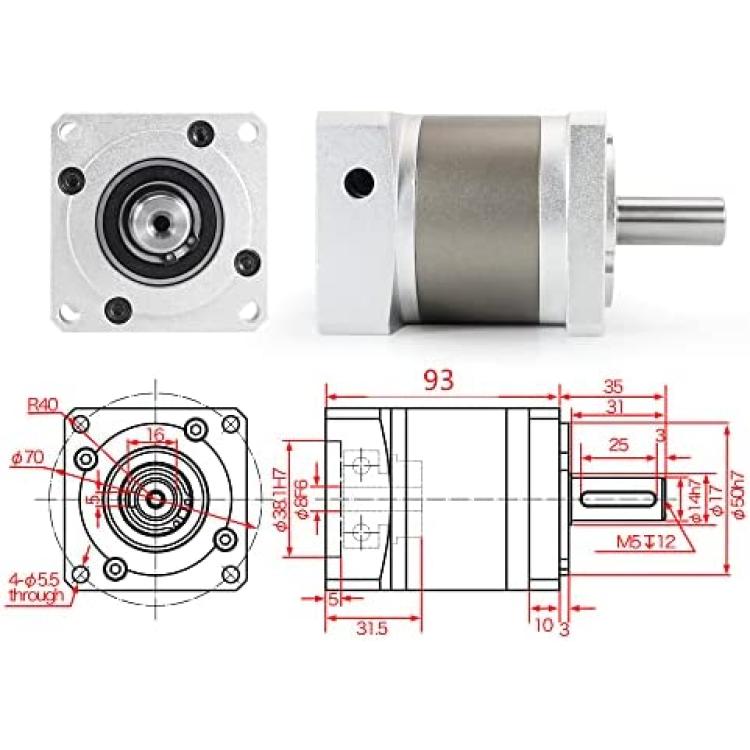

Gearbox SpecificationsGearbox Type: PlanetaryGear Ratio: 50:1Efficiency: 96%Backlash at No-load: ?7 arcminMaximum radial force/torque:400NMaximum axial force/torque:300NNoise: ?58dBWaterproof Rating: IP65Lifetime: 20000 hoursRated input speed:3000rpmMax. input speed:8000rpmWeight:1.1kgFrame Size: 60 x 60 mmGearbox Length: 93mmOutput Shaft Type: Key wayOutput Shaft Diameter: ?14 mmOutput Shaft Length: 31 mmInput Shaft Diameter: ?8 mmInput Shaft Length: 21~24 mmFrequency Asked Questions
