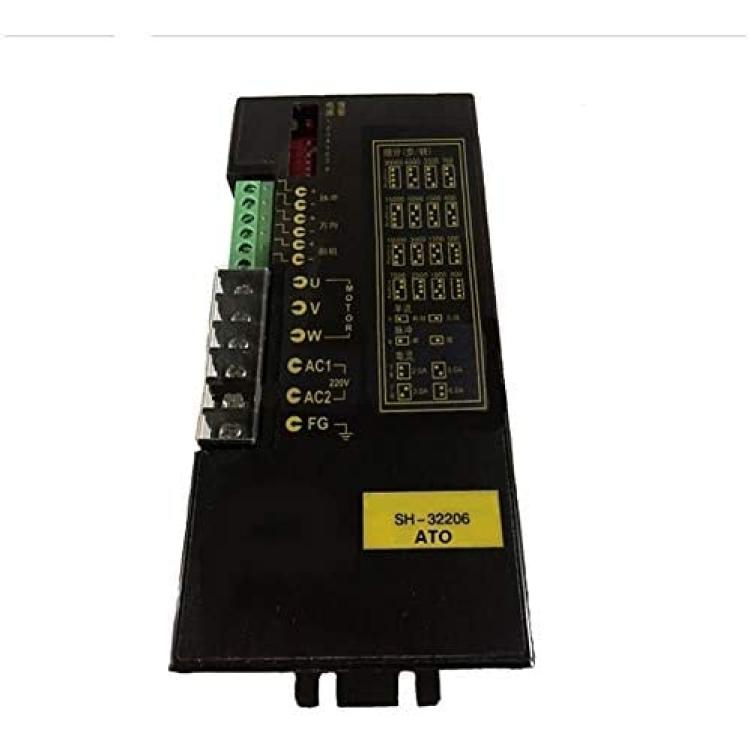

ATO Digital Stepper Driver, Stepper Motor Driver CNC Controller for 3 phase Nema 34, 42 Stepper Motor

Features:

32-bit DSP digital control mode.

Low vibration, low noise, low powerconsumption.

Flexible subdivision runs more smoothly.

Automatic memory power phase.

Optically isolated input signal.

Space vector bipolar constant currentdrive.

Maximum output current 6A/ phase.

Provide energy-saving automatichalf-current lock function.

Maximum 30000 steps/ turn of the 16subdivision mode optional.



Specifications:



Basics Information

Model       ATOSH32206

Size  187x 116 x 81 mm

Phase       3

Weight     1.2kg

Supply Power   AC 80-220V

Capacity  0.8kVA

Output Current        Peak 6A/Phase (Max.)

Driver Method Space vector bipolar constant current drive

Isolation Resistance         >500 M?

Dielectric Strength  1kV, 1Min

Cooling Method       Natural Convection



Environment

Operation Environment:

Temperature   -5?~+40?

Humidity  <80%RH

Vibration 5.9m/s2(Max.)

Storage Environment:

Temperature   -40?~+55?

Humidity  <93%RH



Indicator Light

1. The green light is the power indicatinglamp. When the drive is powered on, the green light is always on. 2. The redlight is the fault indicating lamp. When the overvoltage and overcurrent faultsoccur, the trouble lamp is always on.



Note: The default input signal is 5V pulsesignal. When 24V input signal is required, please in series with1.8-2k?resistance.
