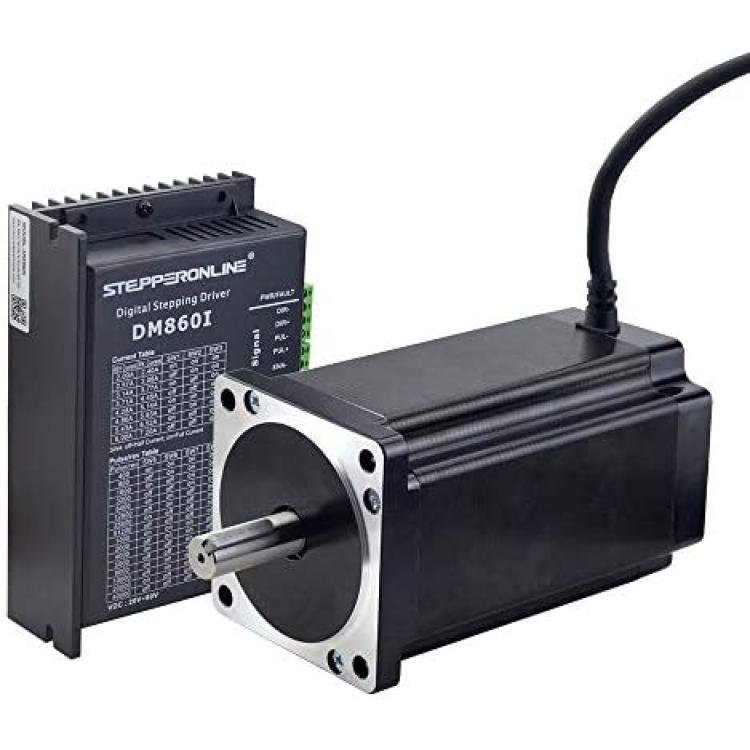

STEPPERONLINE 1 Axis Stepper CNC Kit Nema 34 12.0 Nm(1699.68oz.in) 6A Stepper Motor & Driver
About this product
*1 xDigital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
*1 xNema 34 Stepper Motor Bipolar 1.8deg 12.0 Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires
*1 xDigital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
*1 xNema 34 Stepper Motor Bipolar 1.8deg 12.0 Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires
Description
Package Including:
* 1 x Digital Stepper Driver 2.4-7.2A 36-110VDC for Nema 34 Stepper Motor CNC Kit
* 1 x Nema 34 CNC High Torque Stepper Motor 13Nm (1841oz.in) 5A 86x86x150mm
* 1 x Motor Drawing
* 1 x DM860I Driver Manual
Stepper Motor 34HS59-5004S:
* Manufacturer Part Number: 34HS59-6004S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg
* Holding Torque: 12.0 Nm(1699.68oz.in))
* Rated Current/phase: 6A
* Phase Resistance: 0.7 ohms± 10%
* Inductance: 7.9 mH ± 20%(1KHz)
* Frame Size: 86 x 86mm
* Body Length: 151.5mm
* Shaft Diameter: ?14mm
* Shaft Length: 37mm
* D-cut Length: 25mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 5.3kg
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Stepper Driver DM860I:
* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
* Soft-start with no "jump" when powered on
* Input voltage 20-80VDC
* 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR and CW/CCW modes
* Over-voltage, over-curren protection
