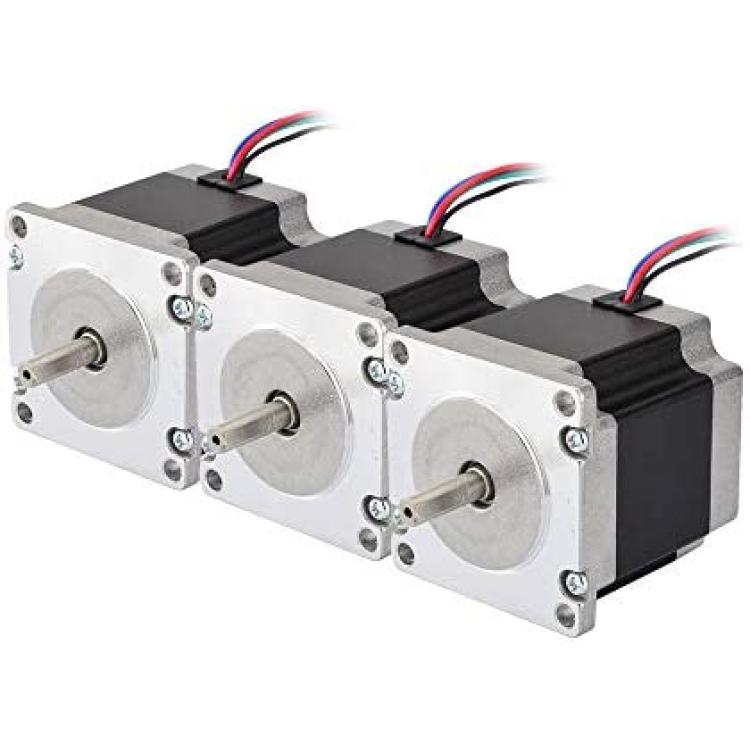

STEPPERONLINE 3PCS Nema 23 CNC Stepper Motor 2.8A 179oz.in 56mm Bipolar for Hobby CNC Kit

STEPPERONLINE 3PCS Nema 23 CNC Stepper Motor 2.8A 179oz.in 56mm Bipolar for Hobby CNC Kit

Name: STEPPERONLINE 3PCS Nema 23 CNC Stepper Motor 2.8A 179oz.in 56mm Bipolar for Hobby CNC Kit
Brand: ‎OSM Technology Co.,Ltd.
SKU: MM494
Availability: InStock

Brand: ‎OSM Technology Co.,Ltd.
Product Code: MM494
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Package in 3PCS

*1.26Nm(178.5oz.in) holding torque

*NEMA 23 bipolar 2.24"x2.24"x2.2" 4-wire

*1.8 deg. step angle(200 steps/rev)

*Rated current 2.8A & resistance 0.9ohms

Description

This bipolar Nema 23 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.8A, allowing for a holding torque of 1.26Nm(178.5oz.in).

Electrical Specification:

* Manufacturer Part Number: 23HS22-2804S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 1.26Nm(178.5oz.in)
* Rated Current/phase: 2.8A
* Phase Resistance: 0.9ohms
* Inductance: 2.5mH+/-20%(1KHz)

Physical Specification:

* Frame Size: 57 x 57mm
* Body Length: 56mm
* Shaft Diameter: 6.35mm
* Shaft Length: 20.6mm
* Number of Leads: 4
* Lead Length: 300mm
* Weight: 700g

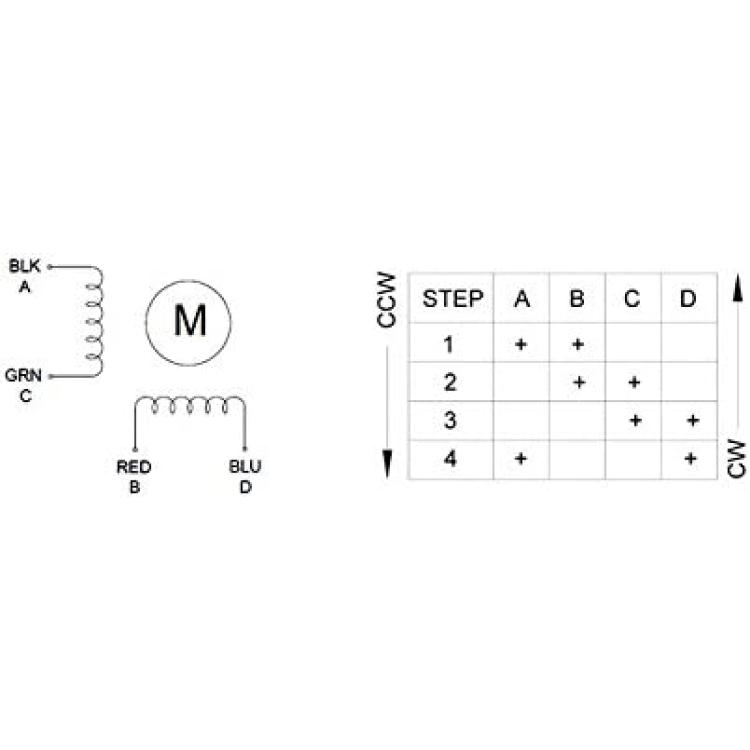

Connection:

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
