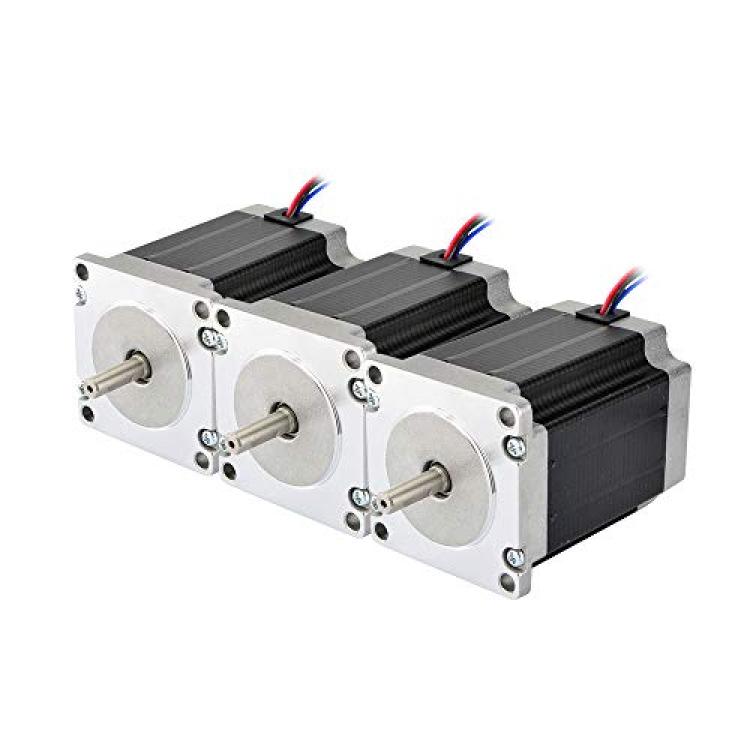

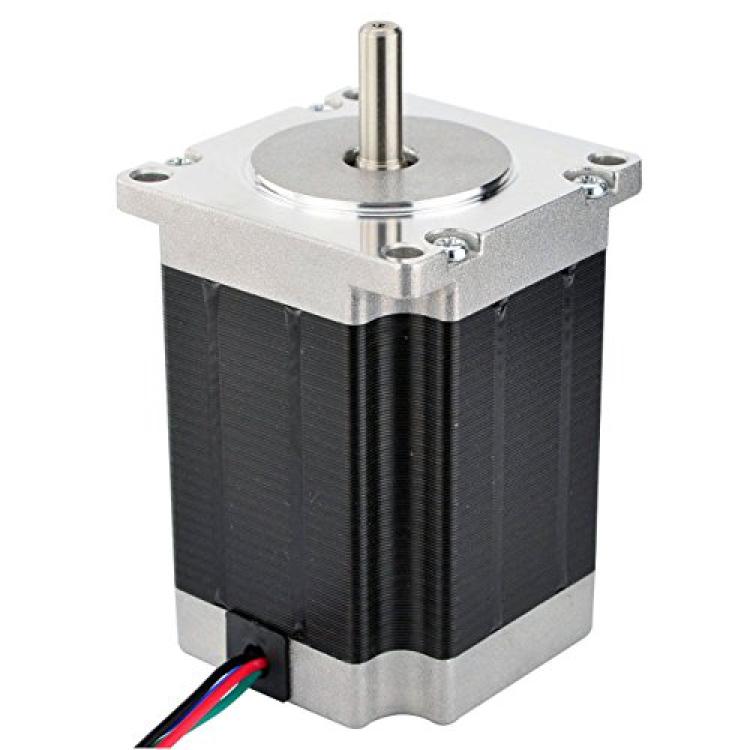

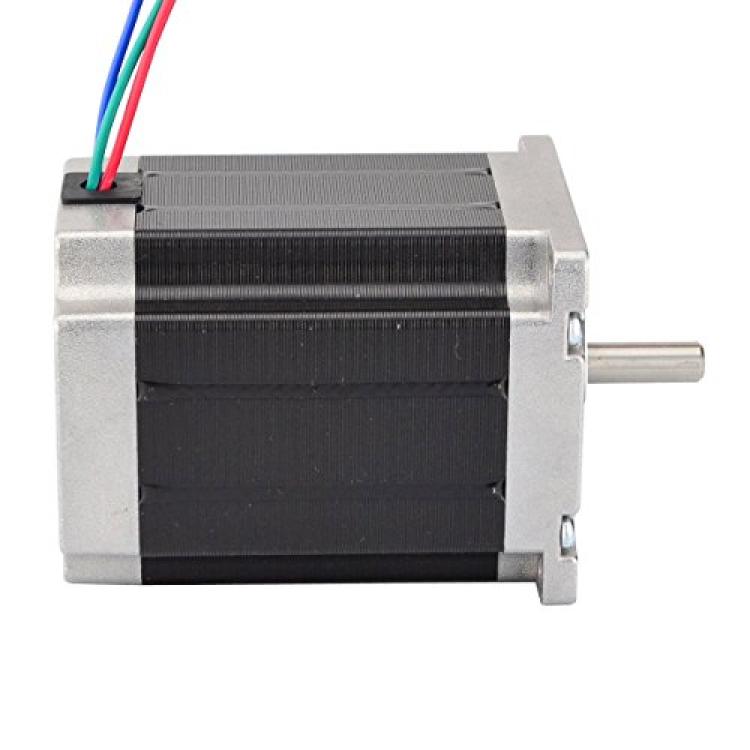

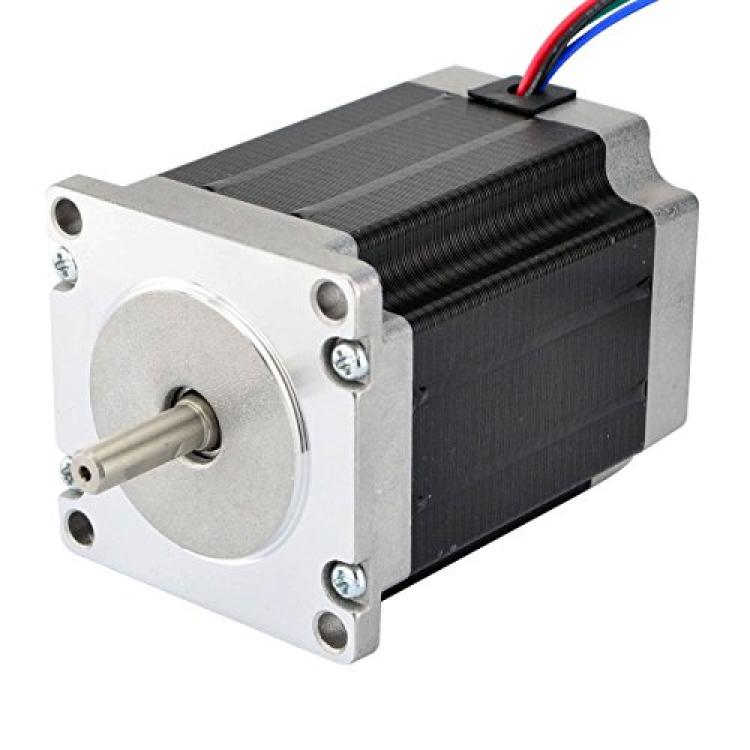

STEPPERONLINE 3PCS Nema 23 CNC Stepper Motor 2.8A 269oz.in 76mm Bipolar for Hobby CNC Kit

This bipolar Nema 23 stepper motor is most popular, it with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.8A, allowing for a holding torque of 1.9Nm(269oz.in).

Electrical Specification:

* Manufacturer Part Number: 23HS30-2804S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 1.9Nm(269oz.in)
* Rated Current/phase: 2.8A
* Phase Resistance: 1.13ohms
* Inductance: 5.4mH+/-20%(1KHz)

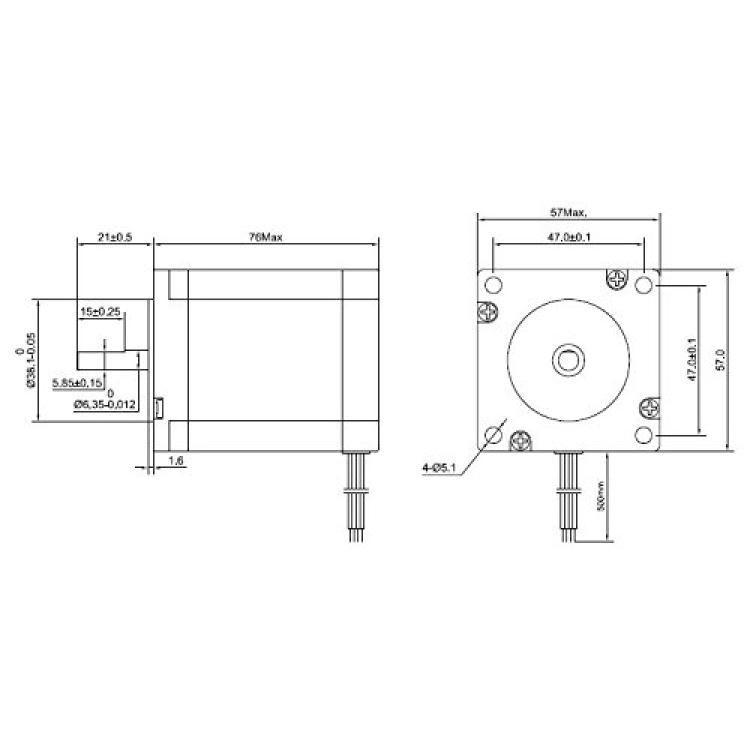

Physical Specification:

* Frame Size: 57 x 57mm
* Body Length: 76mm
* Shaft Diameter: 6.35mm
* Shaft Length: 21mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 1.2kg

Connection:

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
