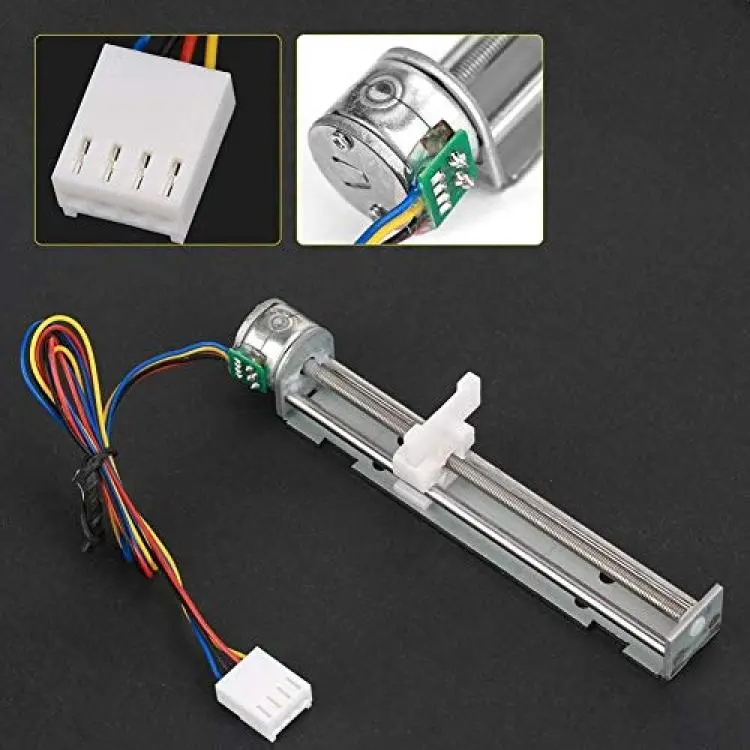

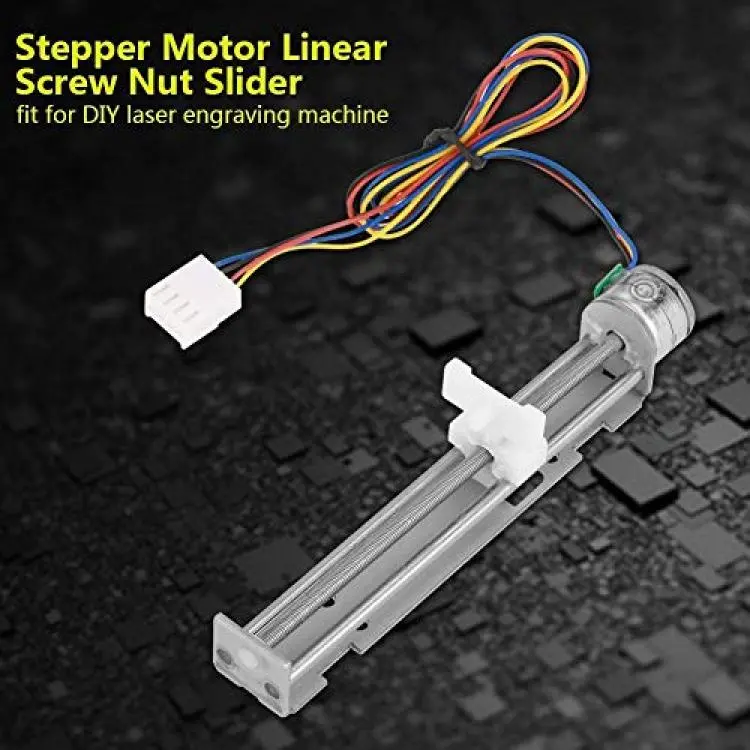

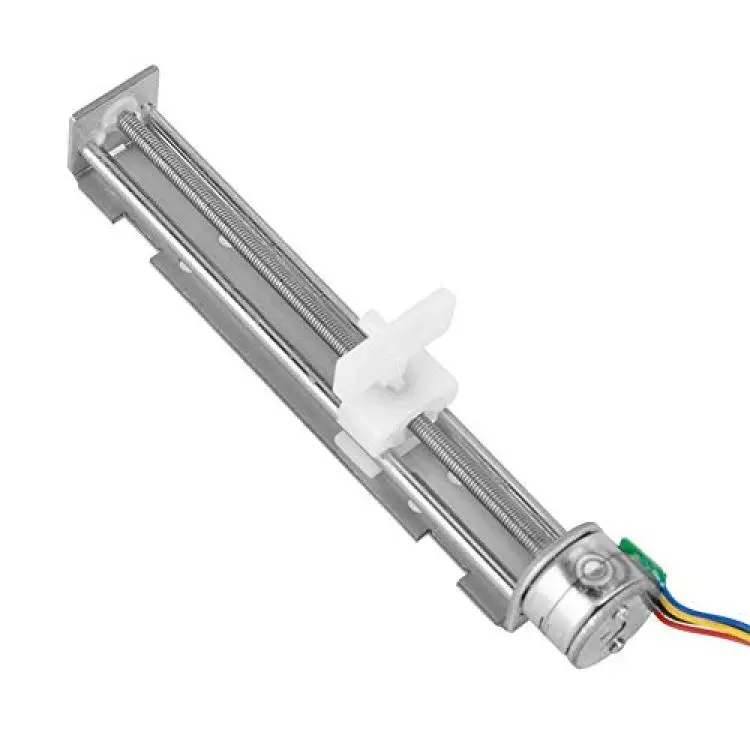

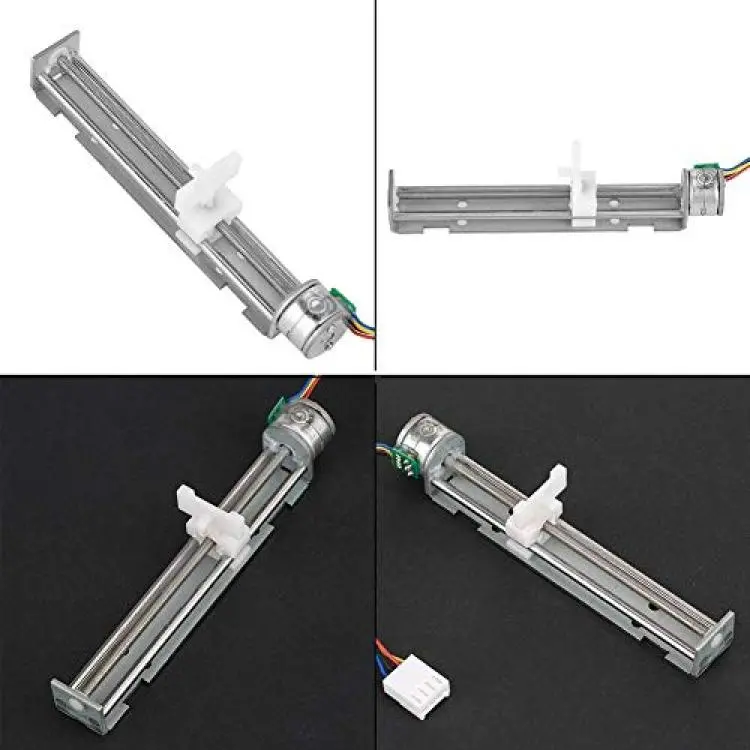

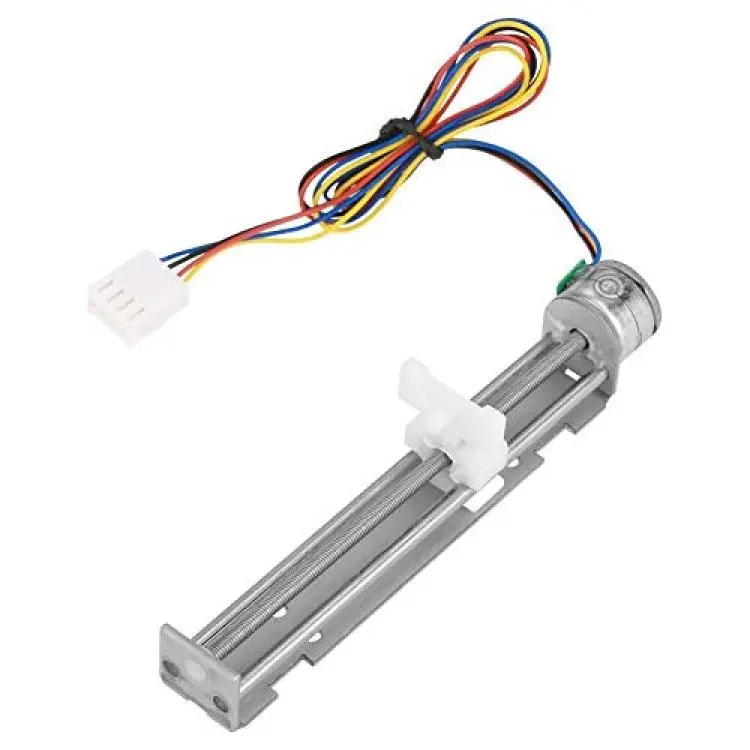

Maxmartt Stepper Motor Slider,DC 12V Stepper Motor with Linear Screw Nut Slider for DIY Laser Engraving Machine
Availability: Pre-Order, Inquiry Price
About this product
*linear stepper motor 100% brand new and high quality.
*stepper motor with lead screw Moving 0.25mm for one step, can use microstep driver if need smaller.
*step actuator motor The maximum linear speed is 25mm per second.
*micro stepper motor actuator Widely used for small devices such as medical equipment, laser engraving machine, etc.
*linear stepper motor 12v The motor need a A4988 driver(not included) to drive, can not directly connect to power.
Description
Features:
100% brand new and high quality.
Moving 0.25mm for one step, can use microstep driver if need smaller.
The maximum linear speed is 25mm per second.
Widely used for small devices such as medical equipment, laser engraving machine, etc.
The motor need a A4988 driver(not included) to drive, can not directly connect to power.
Specifications:
Model
D8-MOTOR80
Drive
voltage
12V DC (drive: 16219)
Current
per phase
800 ma/phase
Coil
resistance
15 10%?/phase
No.of
phases
2 phases
Step
angle
18 ./step
Excitation
method
1-2 phase excitation
Drive
mode
Bipolar drive
Pull-out
thrust
500g above at 125pps
Max
response frequency
1600 pps above
Max
starting frequency
1100 pps above
Insulation
class
Class E
Insulation
strength
100vac one second
Insulation
resistance
50M DC 500V
Operating
temperature
0~+55?
Motor
surface temperature
80?
Thread
Rod Diameter
3mm
Thread
Rod Length
90mm
Slide
Block Stroke
80mm
Thread
Rod Pitch
±0.5mm

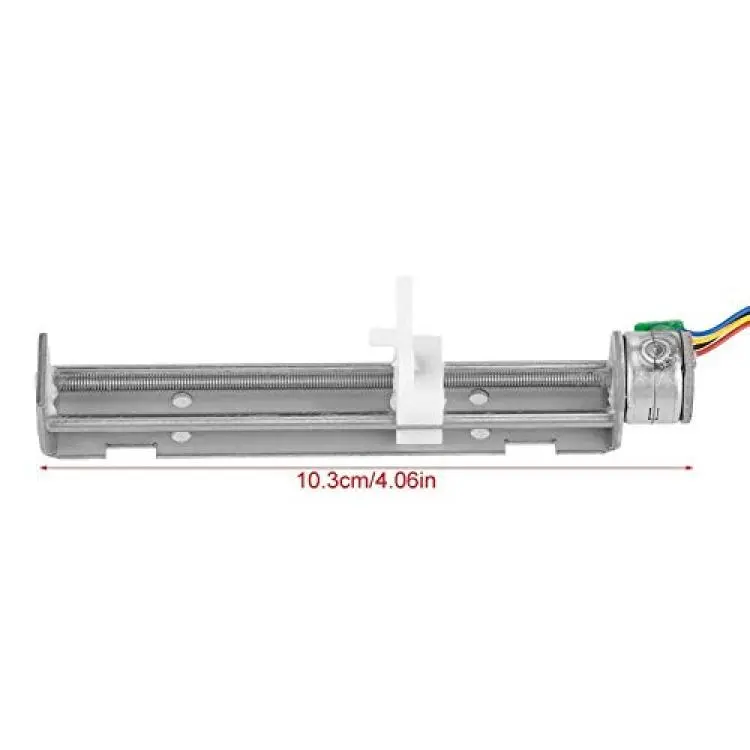

Length
10.3cm/4.1in
Weight
50g (approx.)
Package Includes:
1 x Motor with Linear Slide
