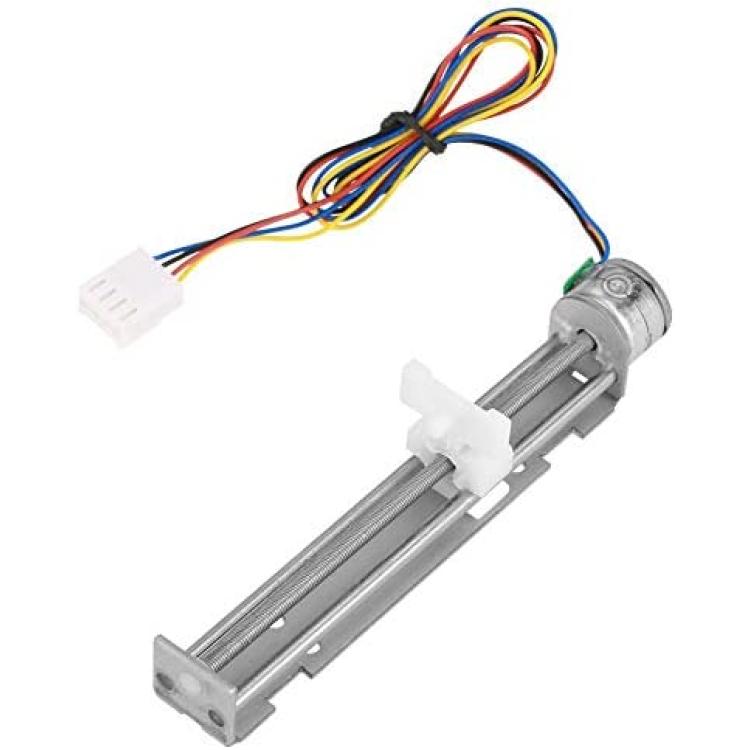

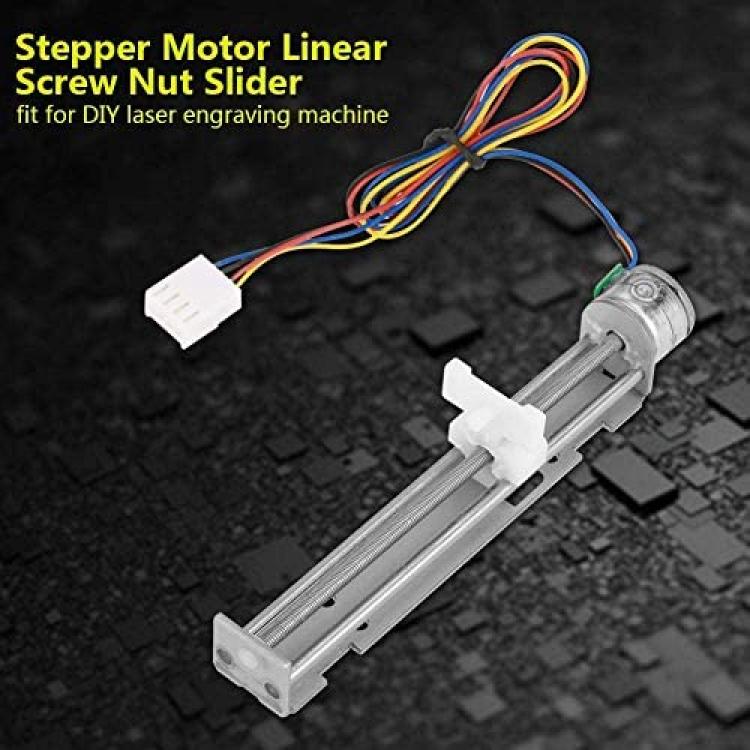

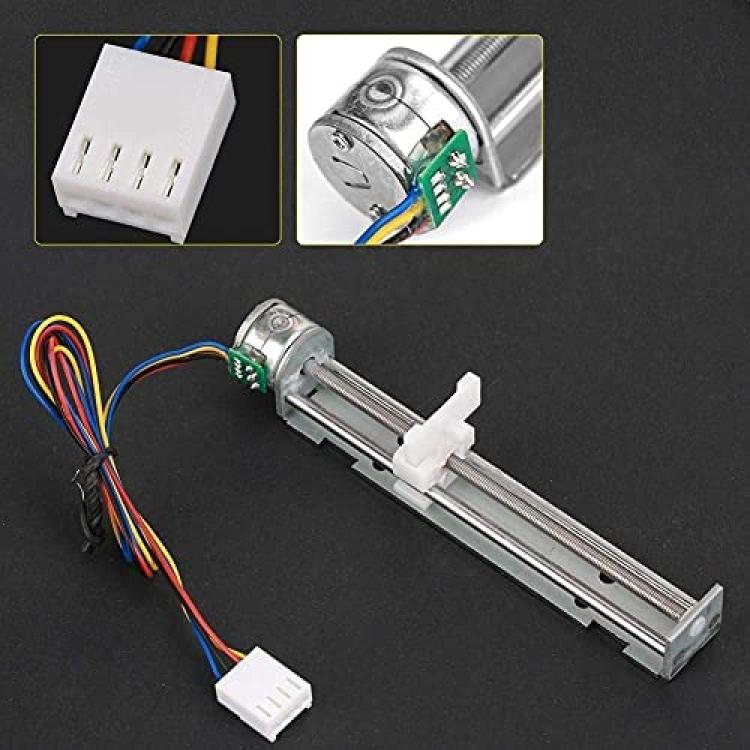

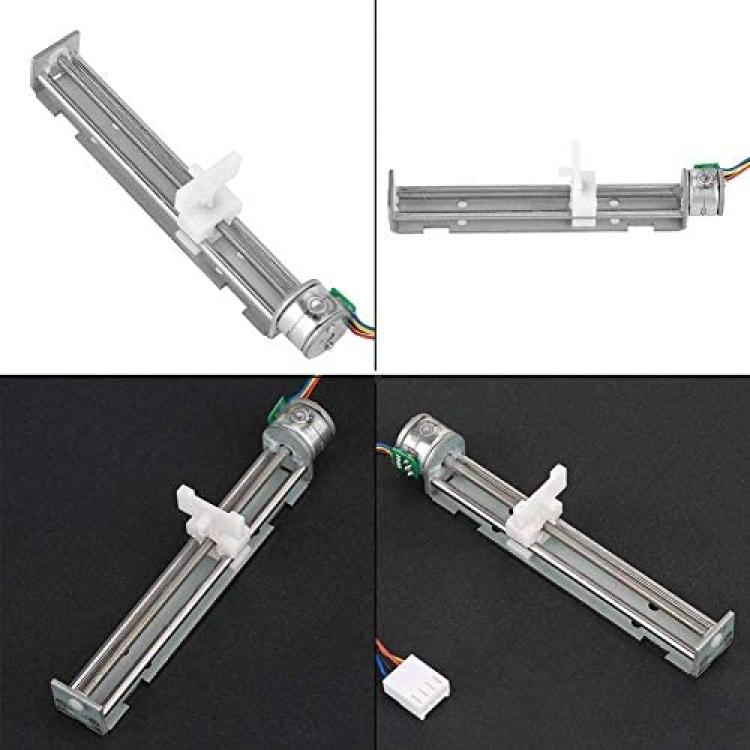

DC 12V Drive Stepper Motor Linear Screw Slider Stepper Motor for DIY Engraving Machine, 18 Degree Lead Screw Worm Drive Stepper Motor
About this product
*DURABLE: The slide screw stepper motor made of high quality meterial, strong and durable in use, working voltage DC 9-12V.
*MAXIMUM LINEAR SPEED: The maximum linear speed of lead screw worm drive stepper motor is 25mm per second.
*APPLICATION: The DC 12V stepper motor widely used for small devices such as medical equipment, laser engraving machine, etc.
*PRODUCT PARAMETER: The linear screw stepper motor moves 0.25mm for one step, can use microstep driver if need smaller.

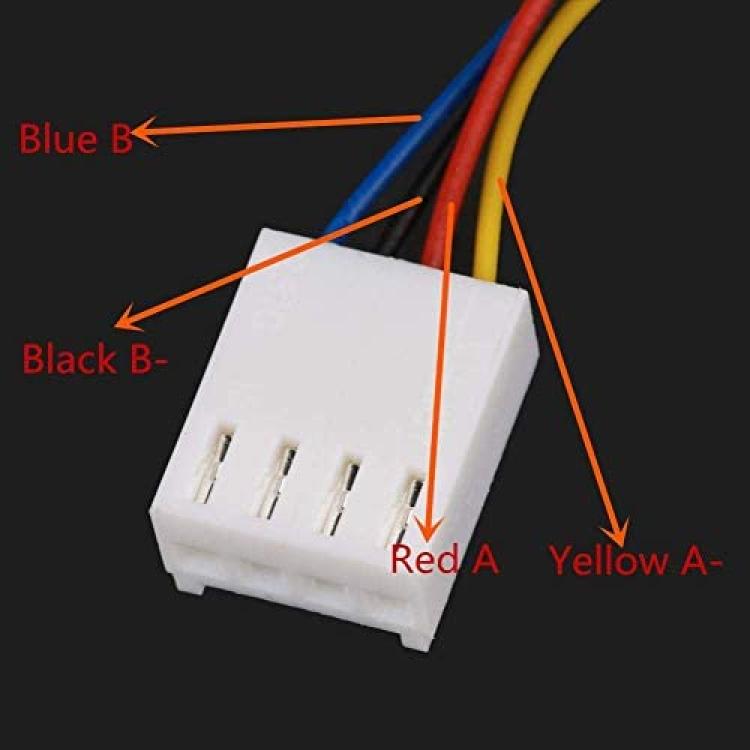

*NOTE: The stepper motor need a A4988 driver(not included) to drive, can not directly connect to power.
Description

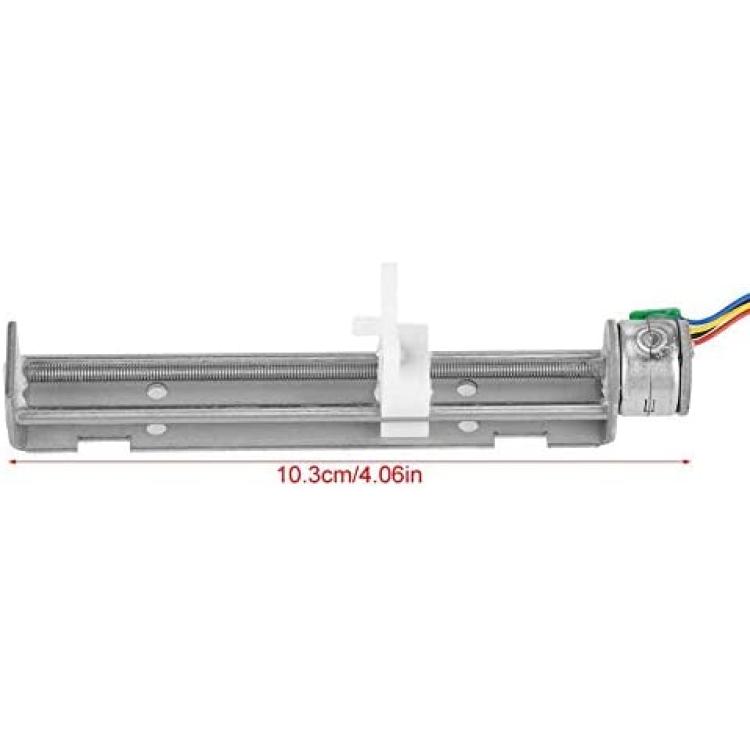

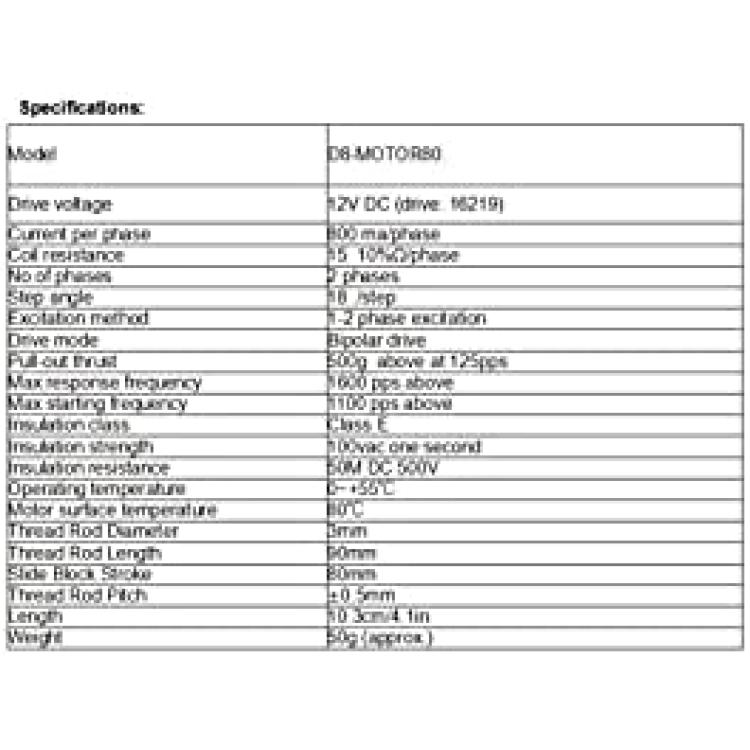

Thread Rod Diameter: 3mm Thread Rod Length: 90mm Slide Block Stroke: 80mm Thread Rod Pitch: ±0.5mm Length: 10.3cm/4.1in Weight: 50g (approx.) Package Includes: 1 x Motor with Linear Slide
