Mini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Stepper Motor Linear Screw Slide Table Slider Stroke 34mm

About this product

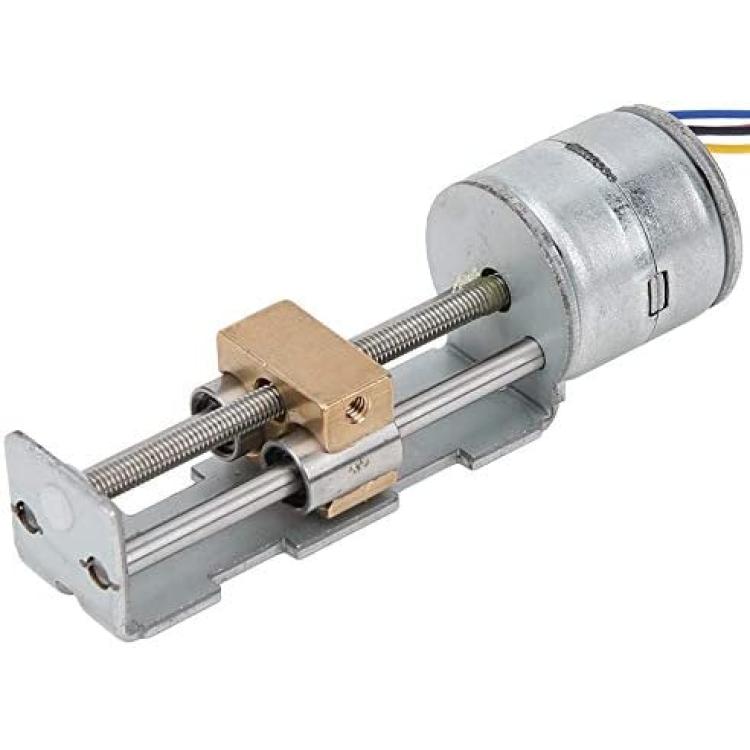

*【All metal】 The linear screw adopts an all-metal structure, with fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion.

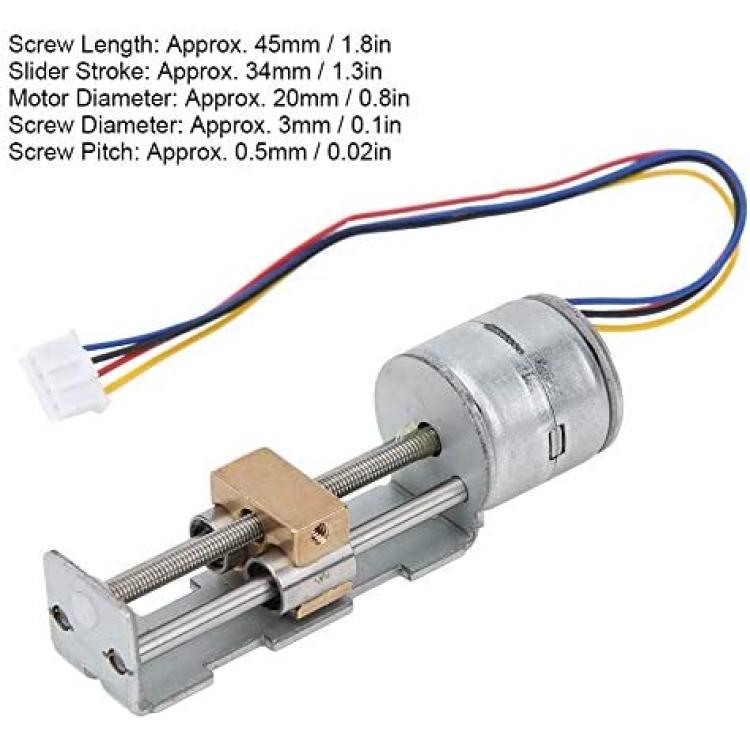

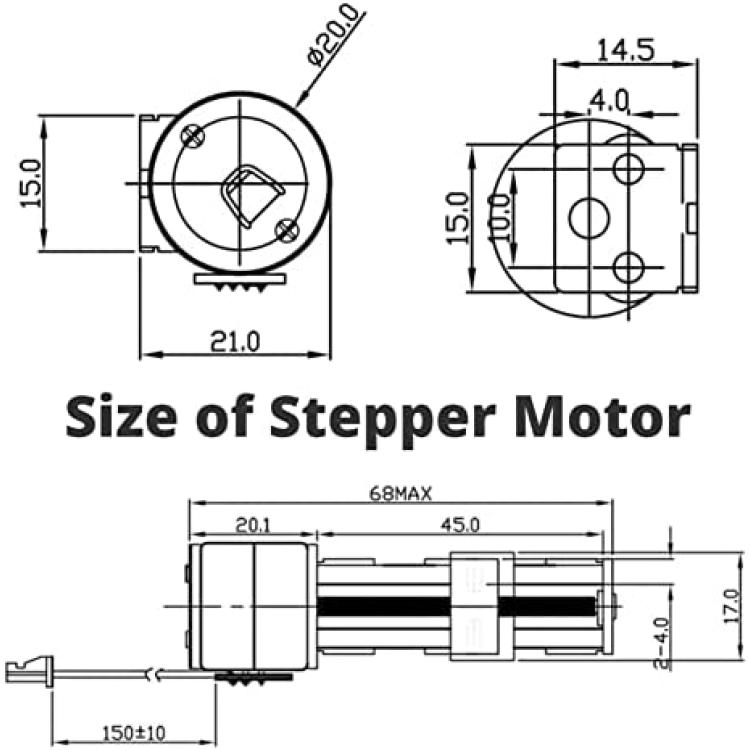

*【Size】 Screw length: about 45mm/1.8inch, screw diameter: about 3mm/0.1inch, pitch: about 0.5mm/0.02in (moving in one step is 0.025mm, if smaller, you can use a subdivision driver).

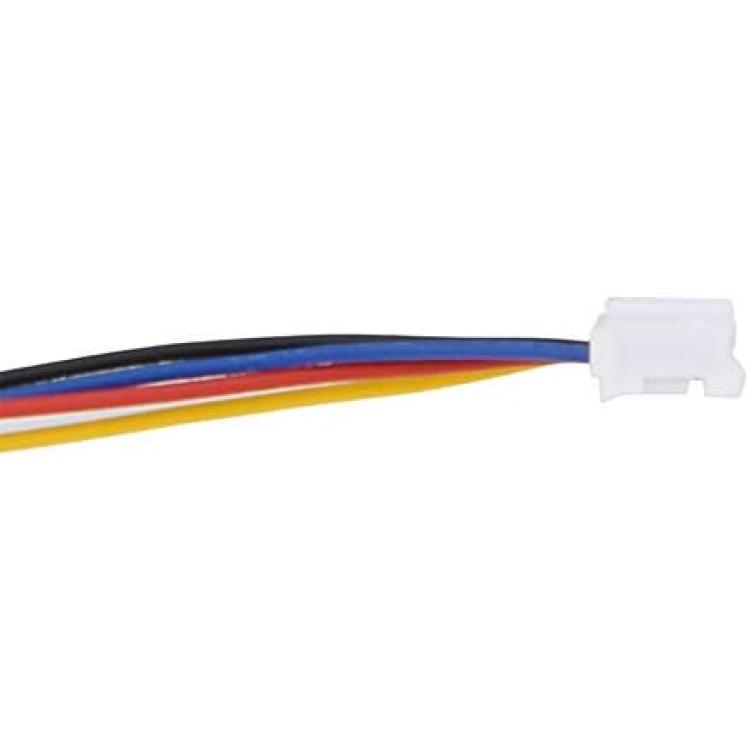

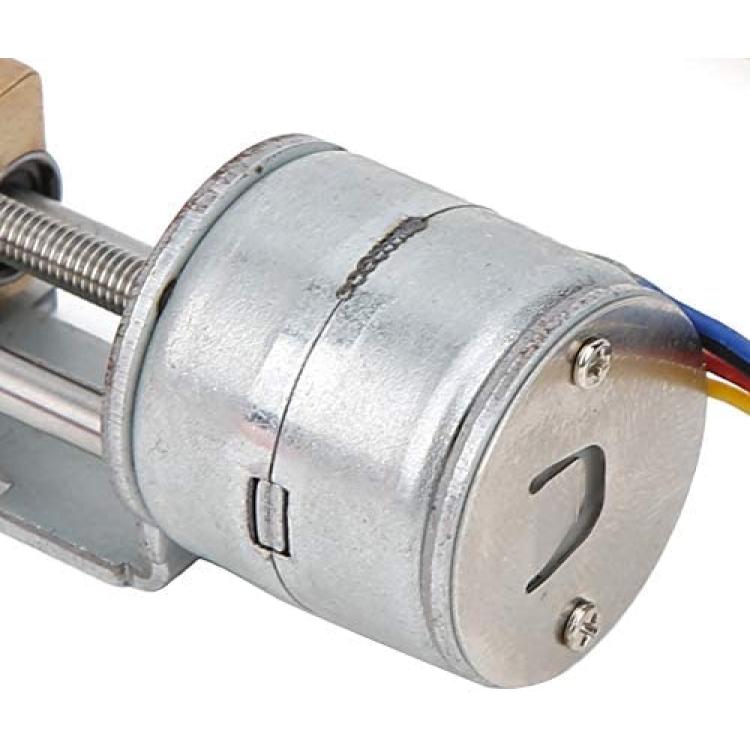

*【2-phase 4-wire stepper motor】 With a miniature 2-phase 4-wire stepping motor, the slider stroke is about 34 mm/1.3 inches, and the motor diameter is about 20 mm/0.8 inches. The driving voltage of the motor is 5-9V/200-600mA (the higher the voltage, the greater the force Larger, the greater the calorific value).

*【Easy to use】 The micro stepping motor slide table can drive the accurate diagonal to move the metal slide up and down.

*【Application】 Stepper motor guide linear slide table can be used for DIY small slider/project/measurement equipment/laser printer, etc.
