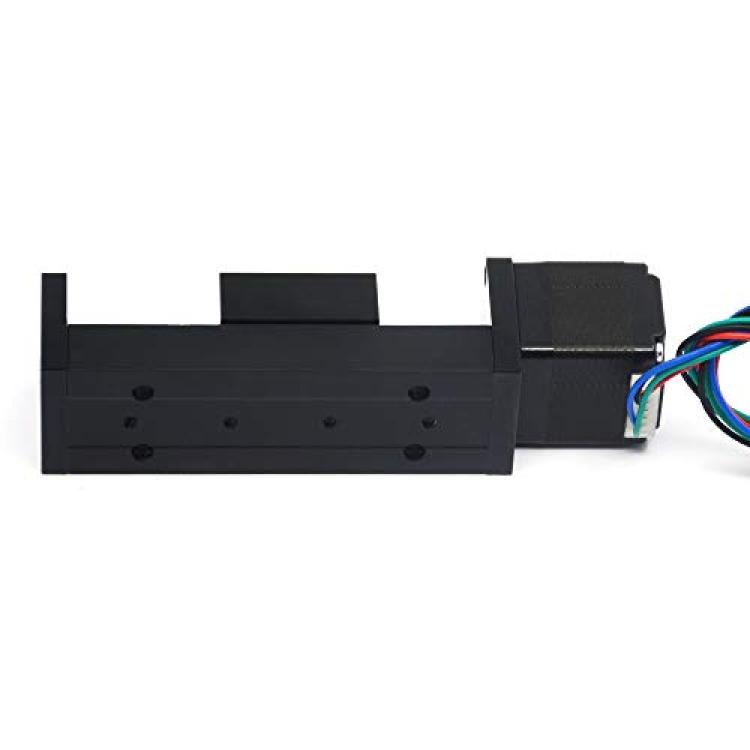

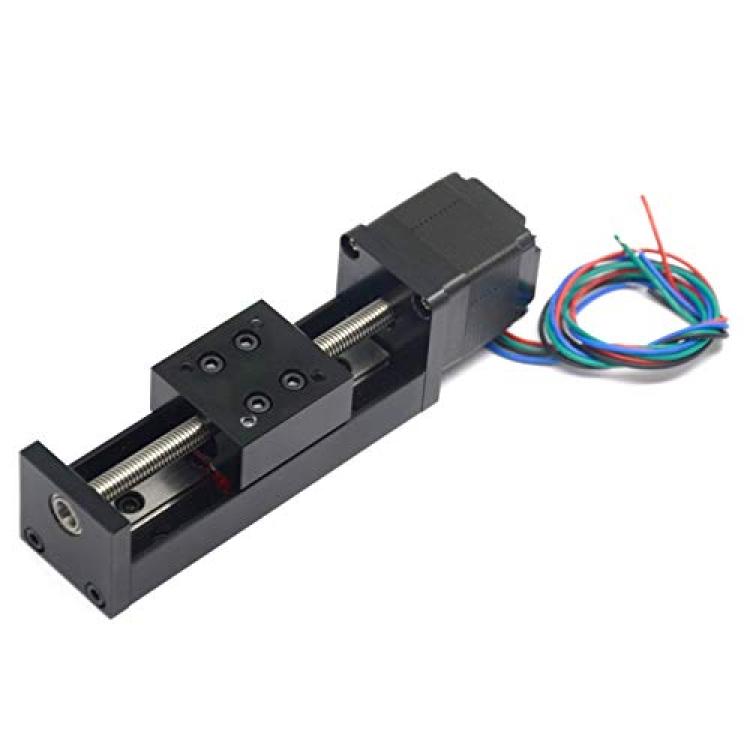

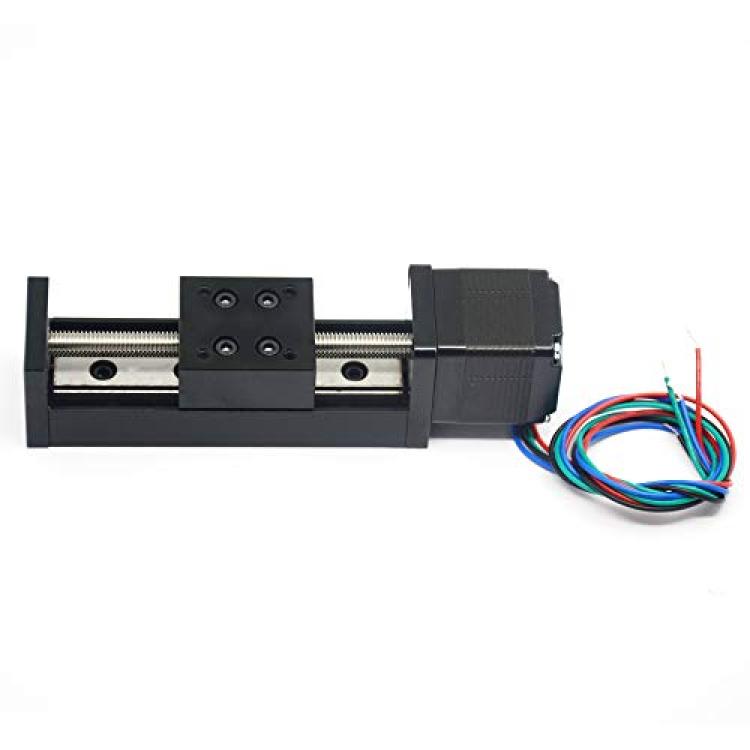

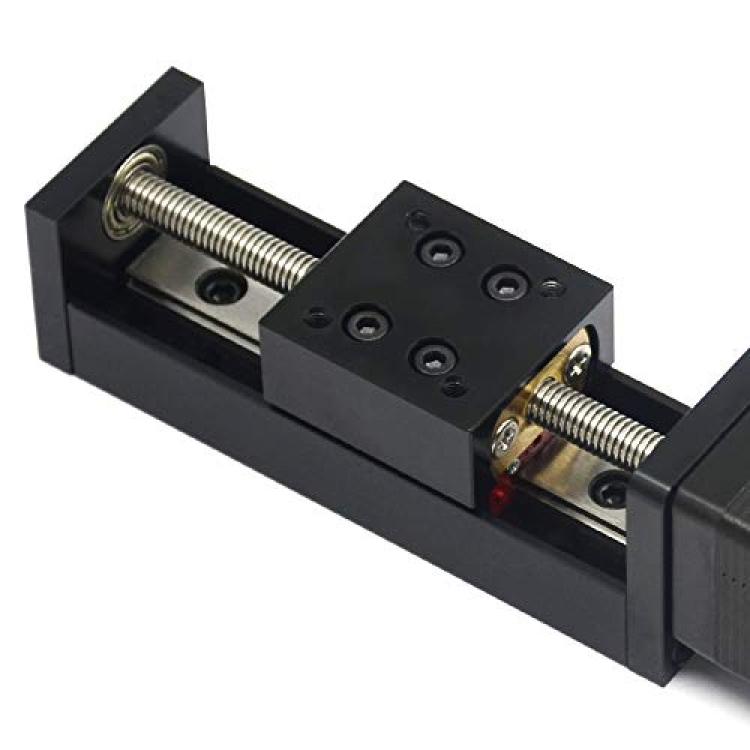

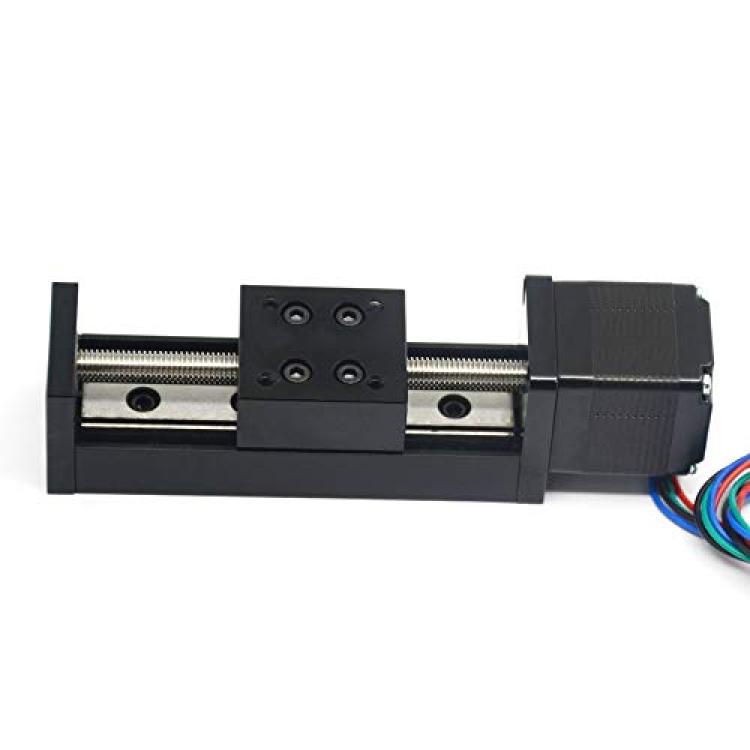

Zeberoxyz 1PCS Mini Linear Rail Guide Slide Actuator T6x1 Lead Screw with NEMA11 Stepper Motor,50mm Effective Stroke Length for DIY CNC Router Parts X Y Z Linear (Size:50mm)
Availability: Pre-Order, Inquiry Price
About this product
*★100% brand New and high qualtiy
*★Material: Made of high quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion
*★Accuracy: Repeat positioning accuracy is ±0.05mm Load:Maximum horizontal load capacity: 2.5kg; Maximum vertical load capacity: 1kg.Speed: 0-120mm/min
*★Effective stroke: 50mm effective stroke, T6x1:6mm diameter, 1mm lead 1mm pitch (lead screw can move 1mm in one turn)
*★Package Content:1PCS T6x1 Linear Stage Actuator with NEMA11 Stepper Motor
Description
Specifications:
Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 28mm
Motor length: 30mm
Holding torque: 6N.cm
Voltage: 24V
Current: 0.6A
Resistance: 5.5 ohm
Inductance: 3.2 mH
Rotor Inertia: 8g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Blue: A-
Green: B+
Black: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 50mm
Total length :125mm
Type: linear system moulde
Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm
Weight:about272g
Package Content:
1PCS T6x1 Linear Stage Actuator with NEMA11 Stepper Motor
PLEASE NOTE:
Please allow 0-3mm error due to manual measurement.
Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown on the picture.
Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.
