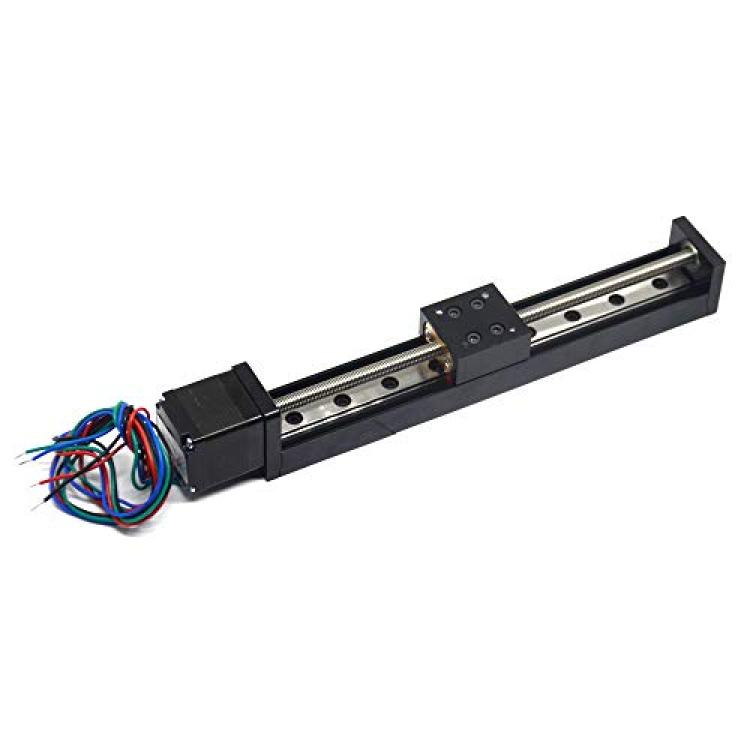

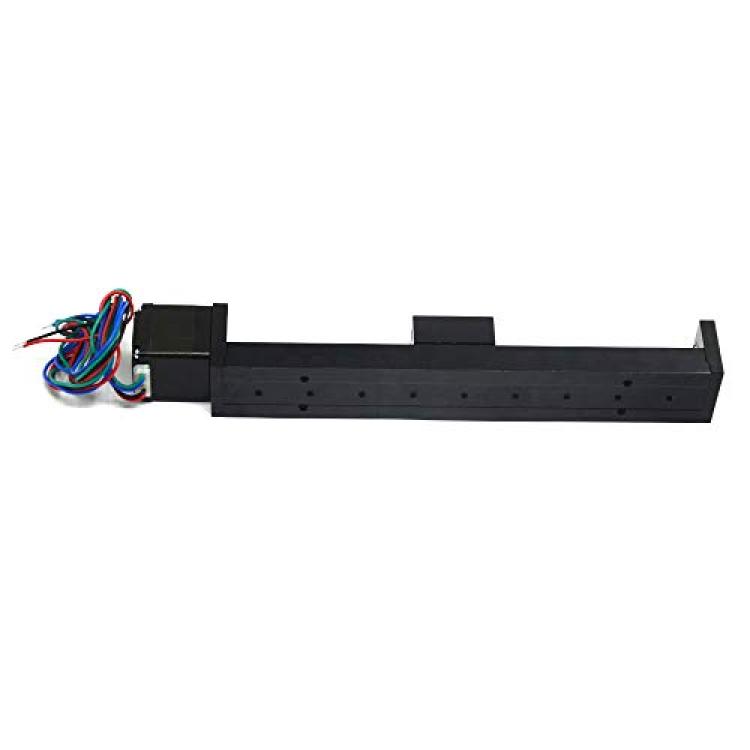

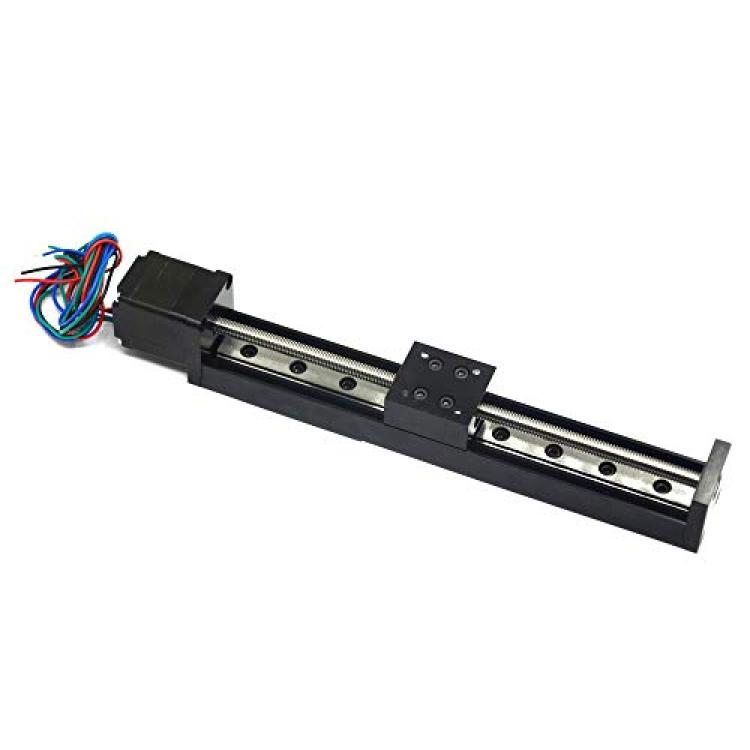

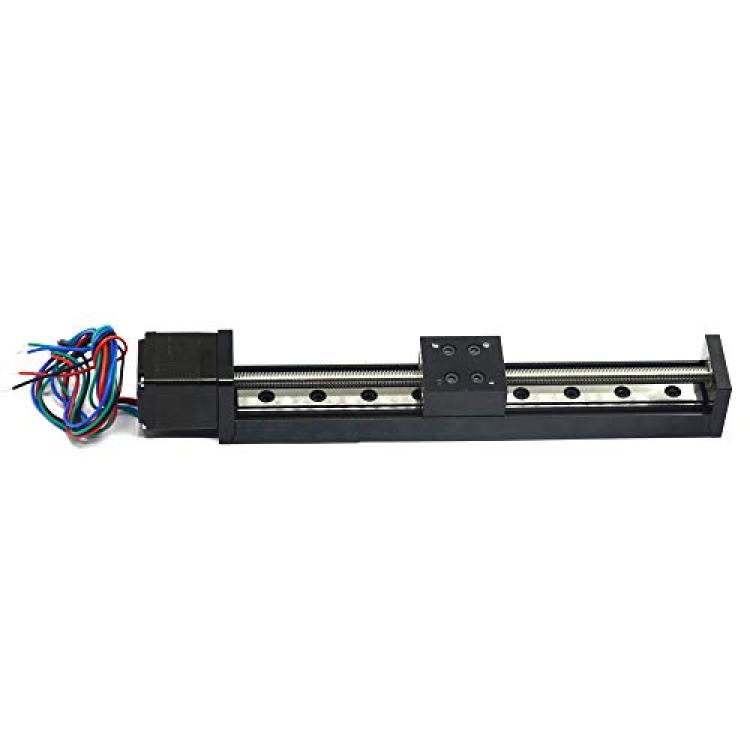

Befenybay 150mm Effective Travel Length Mini Linear Rail Guide Lead Screw T6x1 with NEMA11 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator
Availability: Pre-Order, Inquiry Price
About this product
*【Load】Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg
*【Accuracy】Repeat positioning accuracy of ± 0.05mm
*【Speed】Speed: 0-120mm/min
*【Motor】Motor size:28*28*30mm,Motor voltage:DC 24V,Step angle:1.8 degrees
*【Effective Travel】150mm Effective Travel,T6x1:diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn)
Description
Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 28mm
Motor length: 30mm
Holding torque: 6N.cm
Current: 0.6A
Resistance: 5.5 ohm
Inductance: 3.2 mH
Rotor Inertia: 8g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Blue: A-
Green: B+
Black: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 150mm
Total length :226mm
Type: linear system moulde
Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm
Weight: 380g
Package Content:
1pcs Linear Stage Actuator with NEMA11 Stepper Motor
