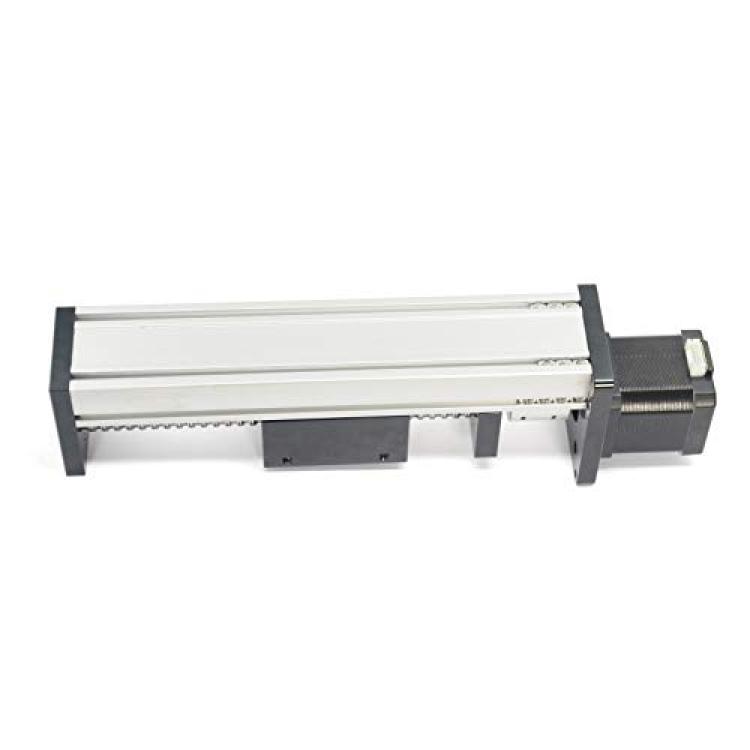

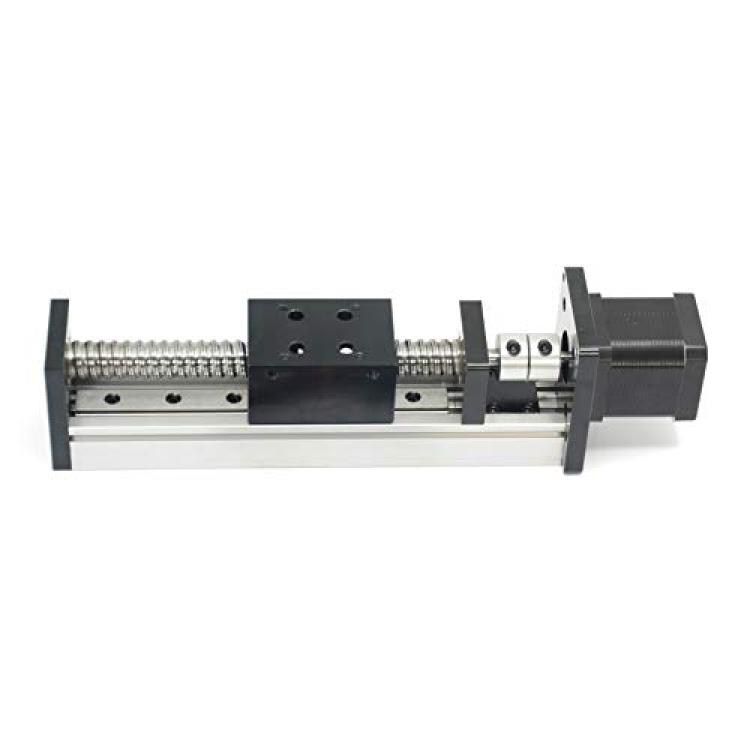

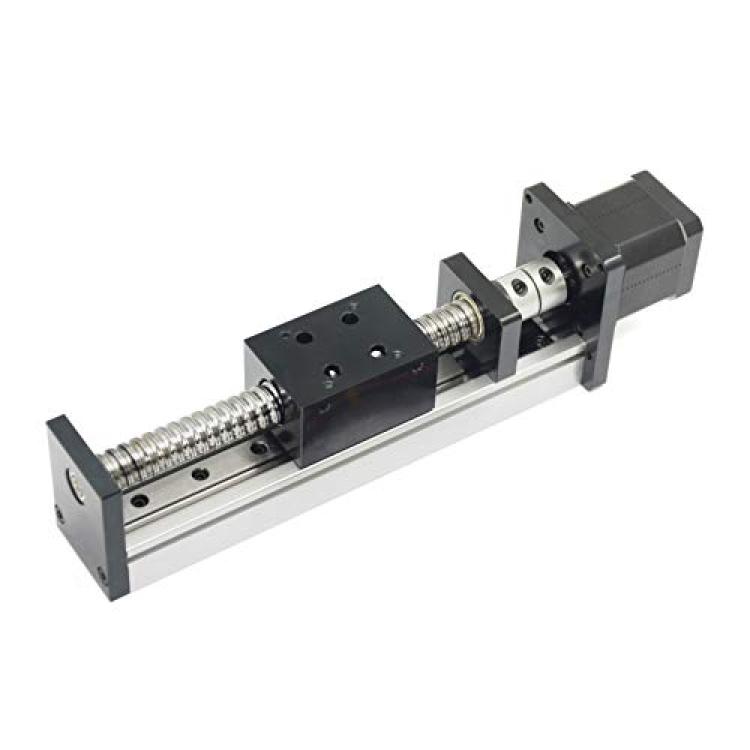

Befenybay 100mm Length Travel Linear Stage Actuator with Square Linear Rails Ballscrew SFU1605 with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Axis
Availability: Pre-Order, Inquiry Price
About this product
*High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
*Repeat positioning accuracy of ± 0.03mm
*Speed: 0-100mm/s
*4 pcs M4 threaded hole to fix the workpiece
*Effective stroke:100mm, Lead:5mm ( The lead screw moves 5mm in one turn)
Description
Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 42mm
Motor length: 47mm
Holding torque: 1.2N.m
Current: 1.5A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 87.3g.cm
Lead wire: 4pcs
Wiring:
Black: A+
Green: A-
Red: B+
Blue: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 100mm
Total length :265mm
Type: linear system moulde
Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level ballscrew: c7
Weight: 1415g

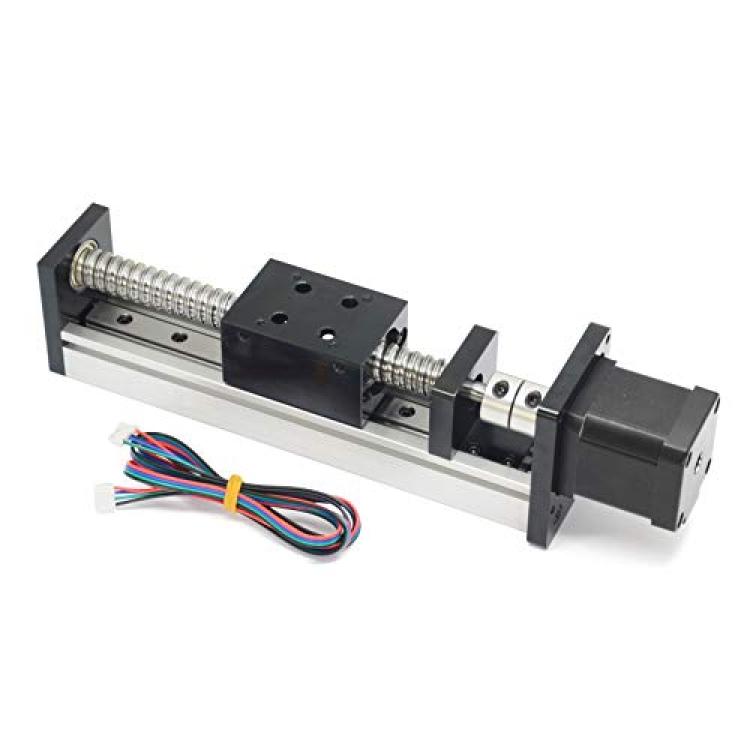

Package Content:
1pcs Linear Stage Actuator with NEMA17 Stepper Motor
1pcs stepper motor cable
