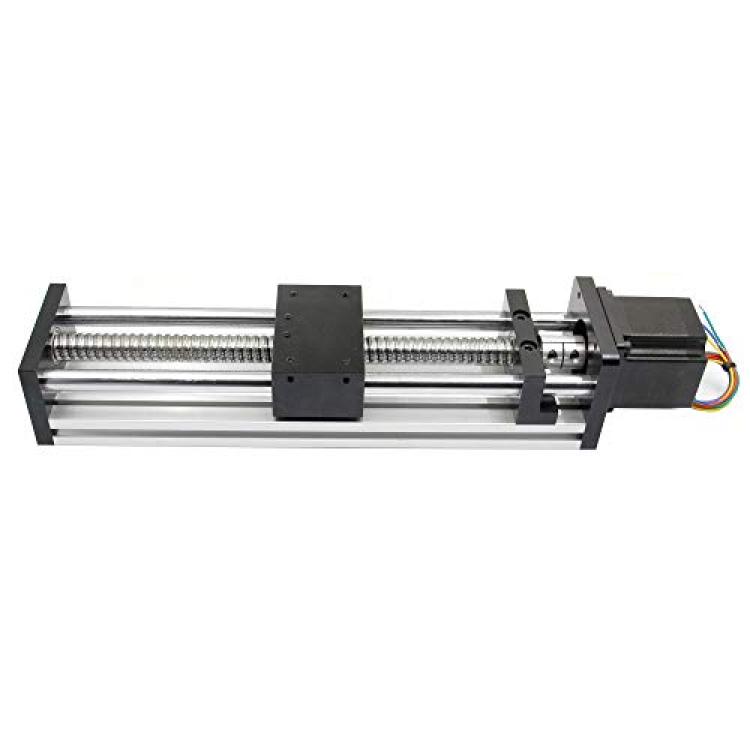

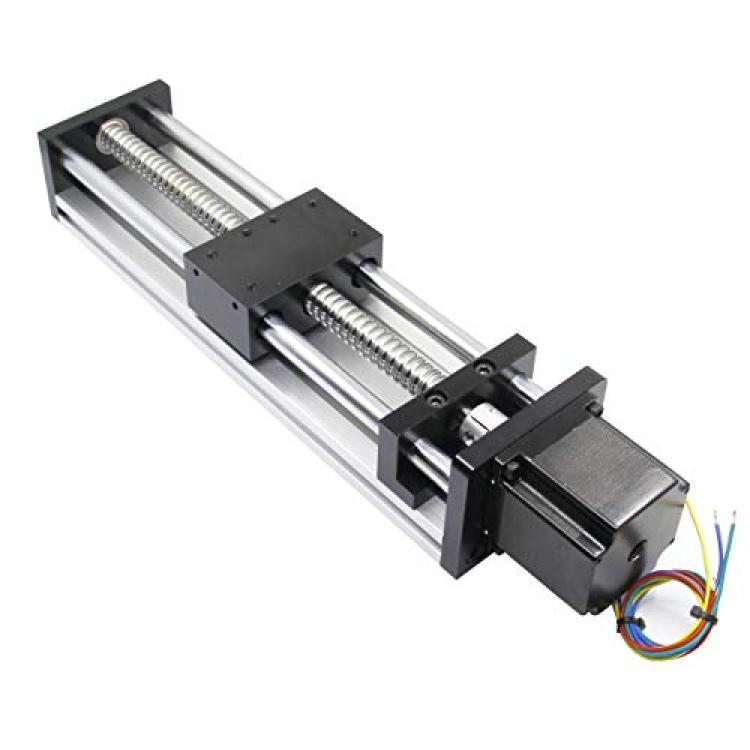

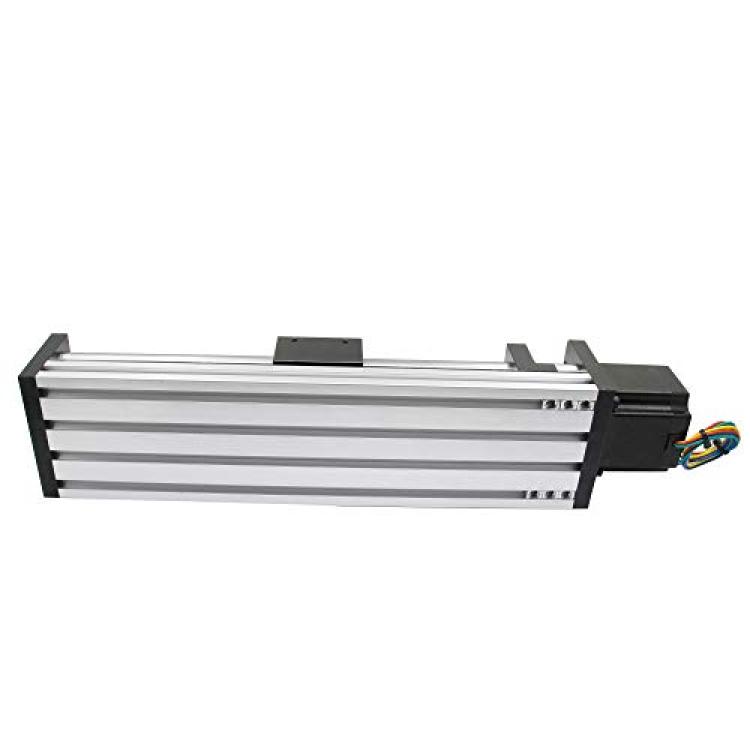

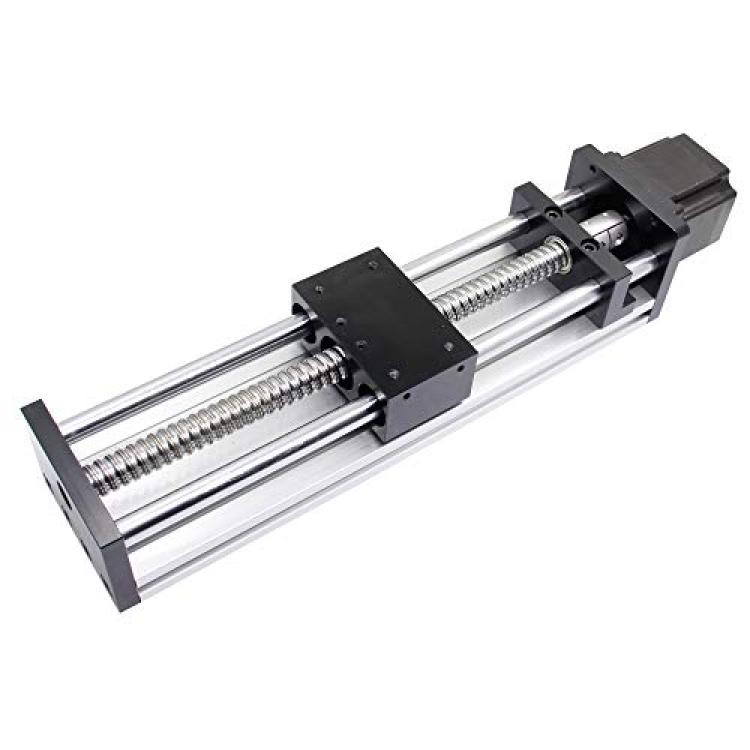

Befenybay 150mm Effective Travel Length Double Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator and 3D Printe
Availability: Pre-Order, Inquiry Price
About this product
*【Load】High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
*【Accuracy】Repeat positioning accuracy of ± 0.03mm
*【Speed】Speed: 0-100mm/s
*【Install】4pcs M5 threaded hole to fix the workpiece
*【Effective Travel】Effective stroke:150mm, Lead:5mm ( The lead screw moves 5mm in one turn)
Description
Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 150mm
Total length :326mm
Type: Optical axis system moulde
Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level ballscrew: c7
Weight: 2540g
Package Content:
1pcs Optical Axis Actuator with NEMA23 Stepper Motor
