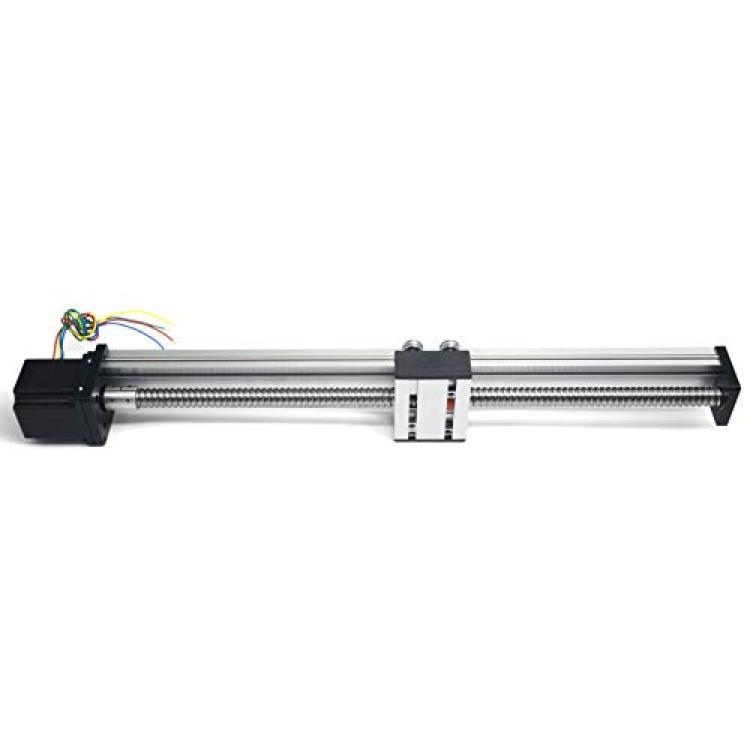

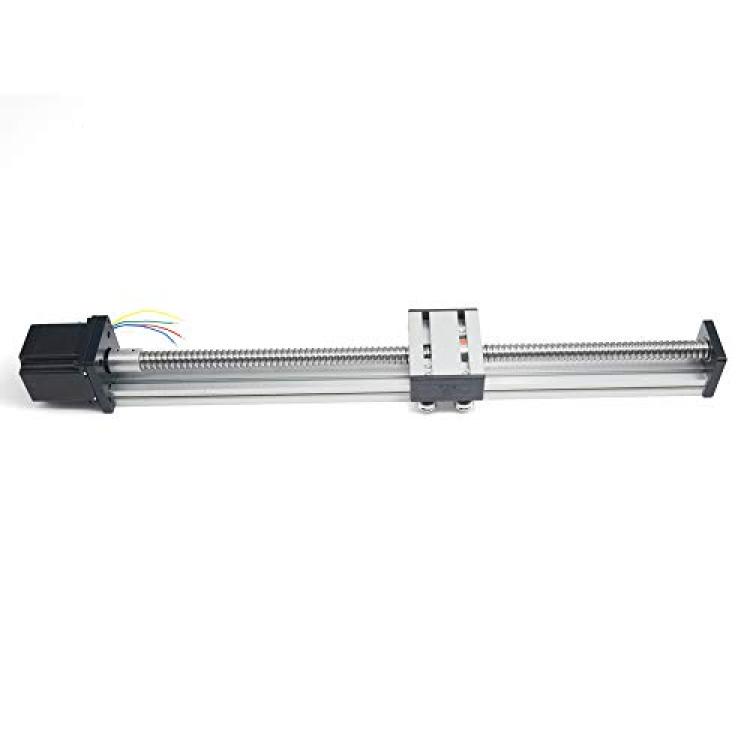

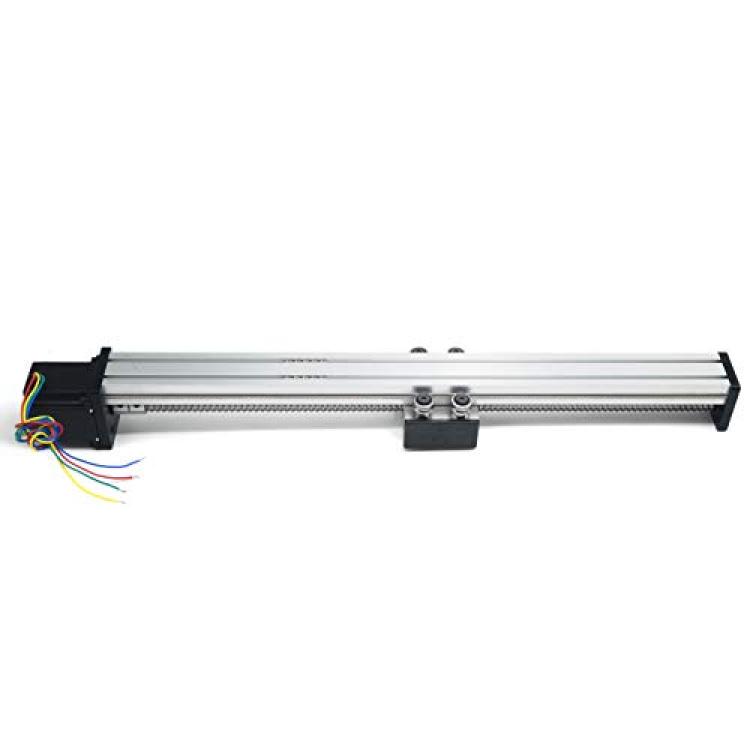

Befenybay 400mm Travel Length Linear Rail Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 24.25 x 4.57 x 2.76 inches; 5.26 Pounds
*Date First Available : March 30, 2020
*Manufacturer : Befenybay
Description
Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-

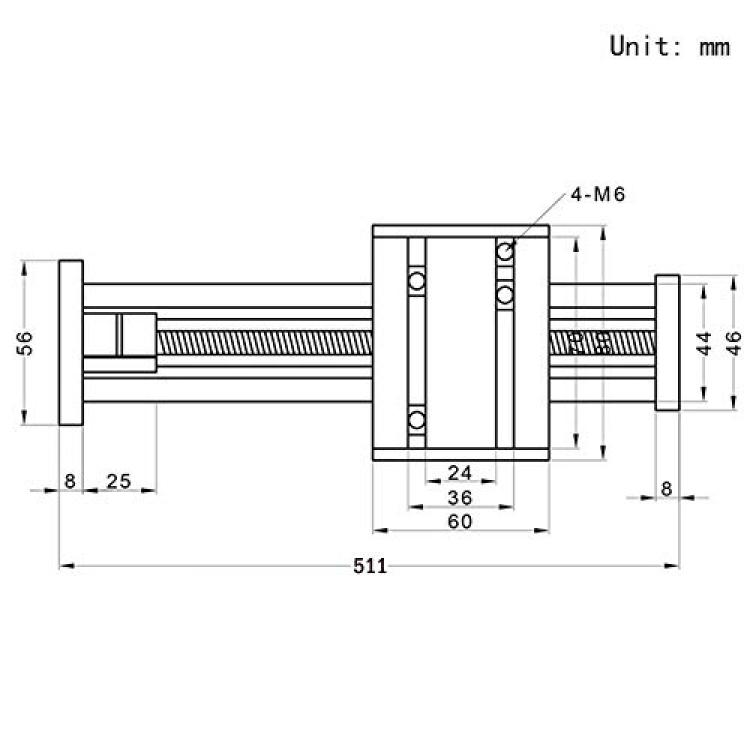

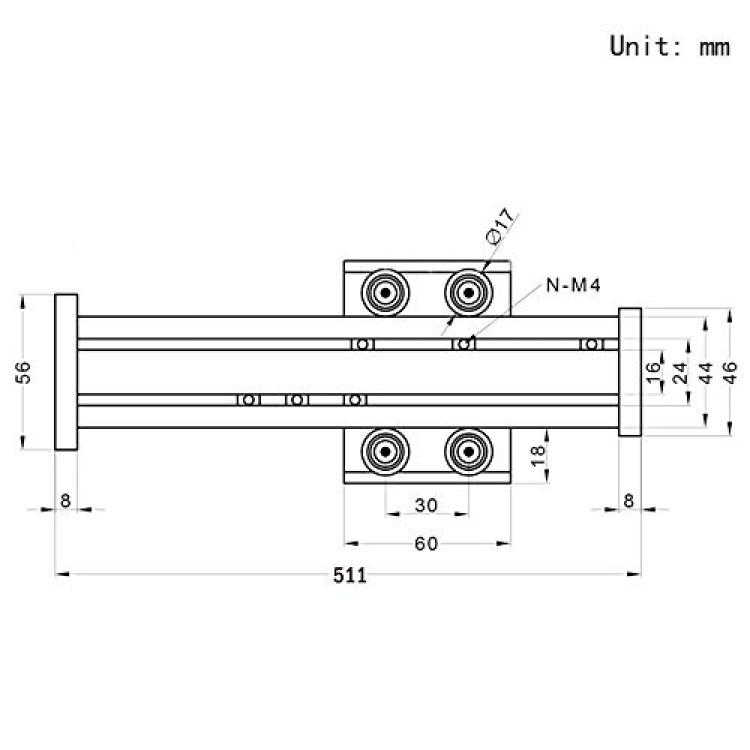

Linear Stage Actuator Parameter:
Effective Travel Length: 400mm
Total length :566mm
Type: linear system moulde
Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level ballscrew: c7
Weight: 2388g
Package Content:
1pcs Linear Stage Actuator with NEMA23 Stepper Motor
3pcs Allen wrench
