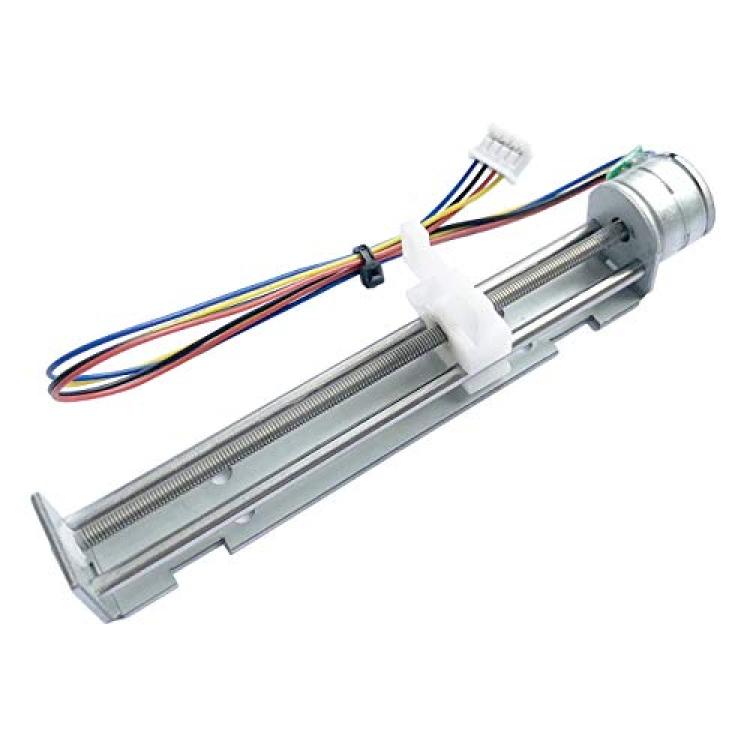

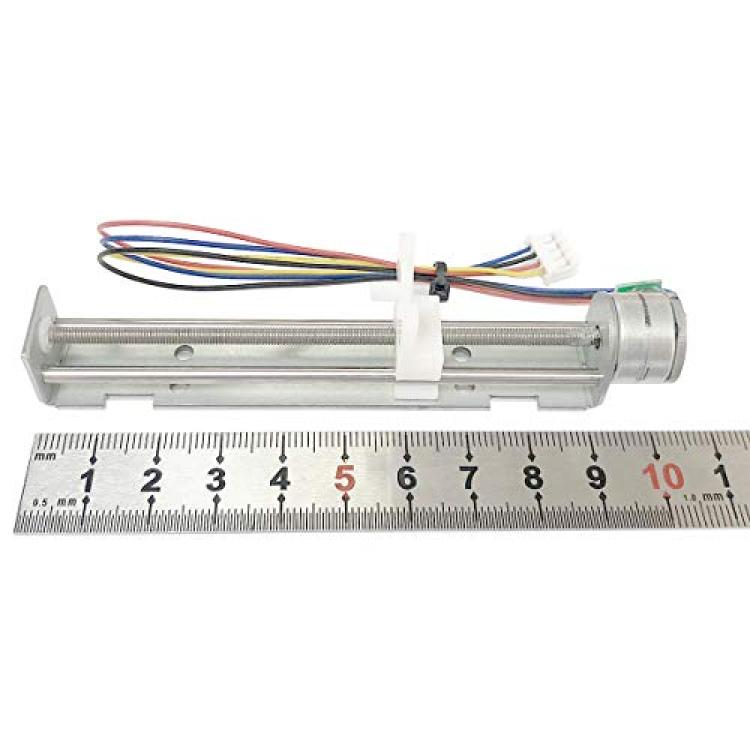

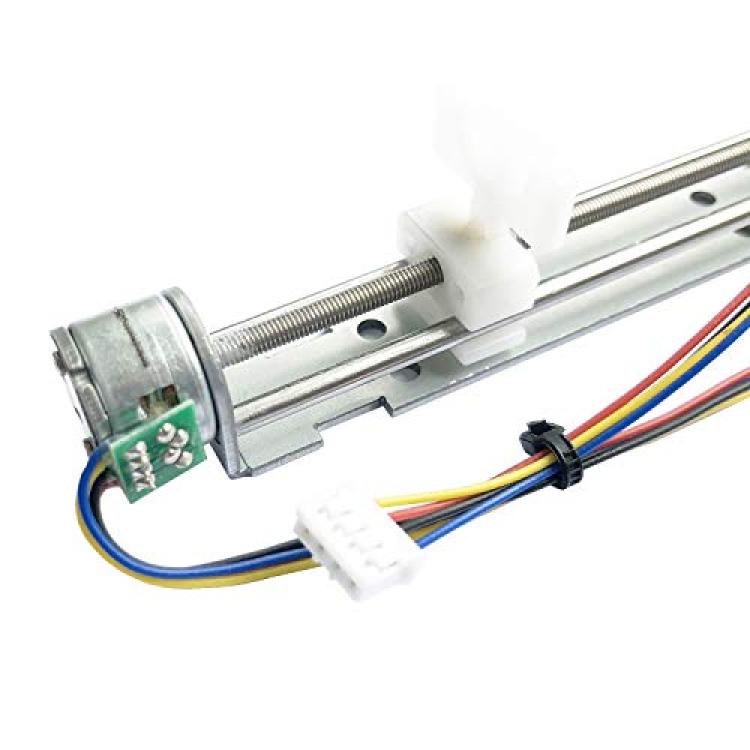

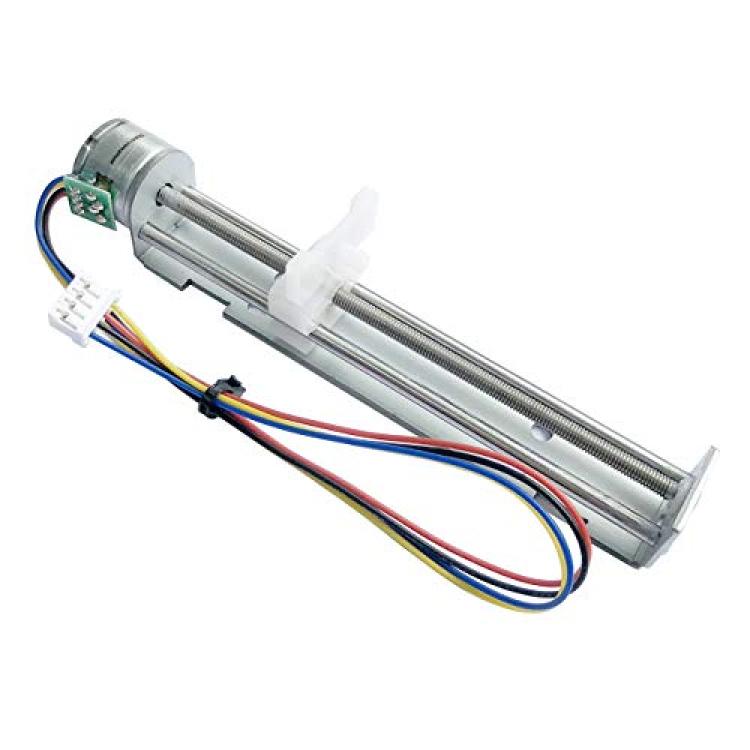

Sunhokey DC 4-9V Drive Stepper Motor Screw with Nut Slider 2 Phase 4 Wire for DIY Laser Engraving Machine
Availability: Pre-Order, Inquiry Price
About this product
*Working Voltage DC 4-9V
*The maximum linear speed is 25mm per second.
*Moving 0.025mm for one step, can use microstep driver if need smaller.
*Widely used for small devices such as medical equipment, laser engraving machine, etc.
*The motor need a A4988 driver(not included) to drive, can not directly connect to power.
Description
Description:
Motor Type?2 phase 4 wire
Driving Voltage: DC 4-9V/500mA
Screw Length: 90mm/3.5"
Screw Diameter: 3mm/0.1"
Slider Width: 15mm/0.6"
Effective Stroke: 80mm/3.1"
Screw Pitch: 0.5mm/0.02"
Step Angle: 18 °
Stage Size: 105X15mm/4.31" X 0.59"(L*W)
The speed of a straight line is the maximum 25mm/s

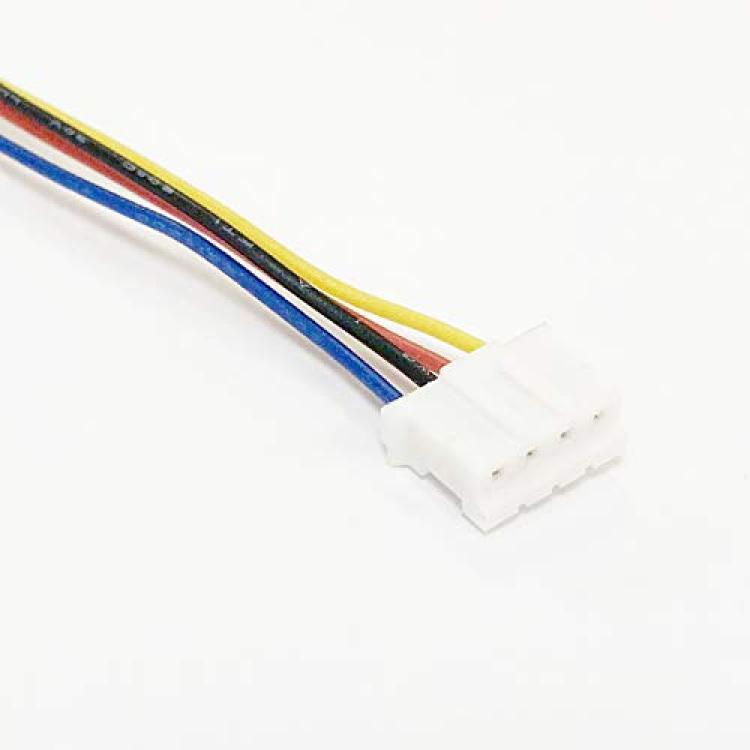

Blue A +, Black A-, Red B +, Yellow B-
Feature:
Micro Sliding table fit for DIY laser engraving machine as its XY axis
Note: The stepper motor is not rotating with power. Need stepper motor drive board and control panel.
Package Includes:
1X Drive Stepper Motor Screw With Nut Slider Small Stage
