Cloudray Leadshine 3 Phase Stepper Motor 573S09-L-18 Stepper Driver 3DM580 for CO2 Laser Engraving Cutting Machine
About this product

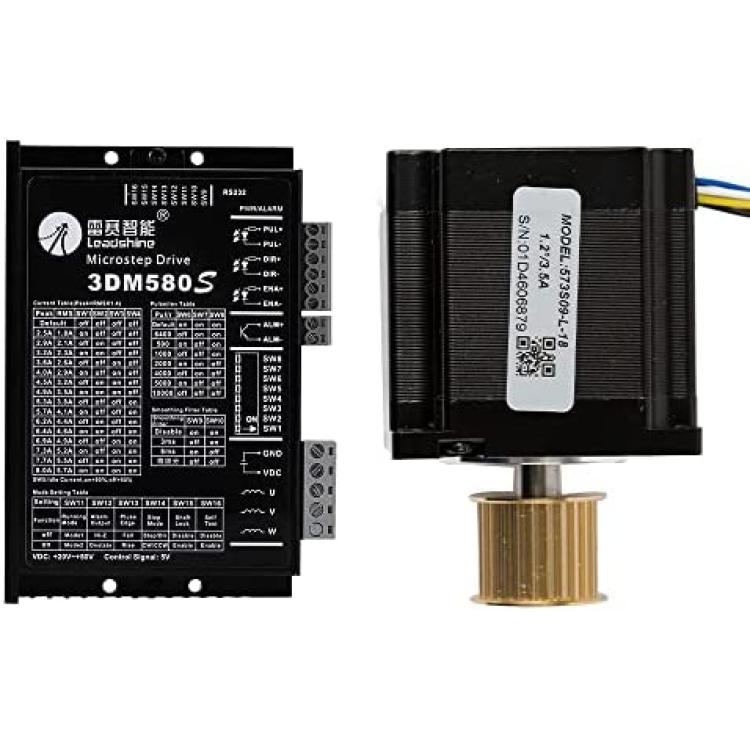

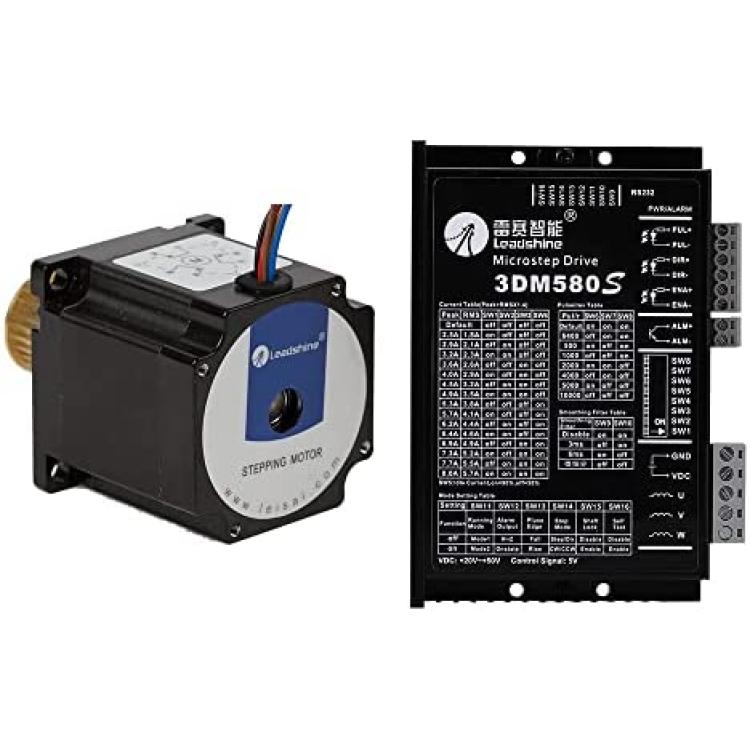

*This item include: 1PCS 3DM580,1 PCS 573S09-L-18 Stepper Motor

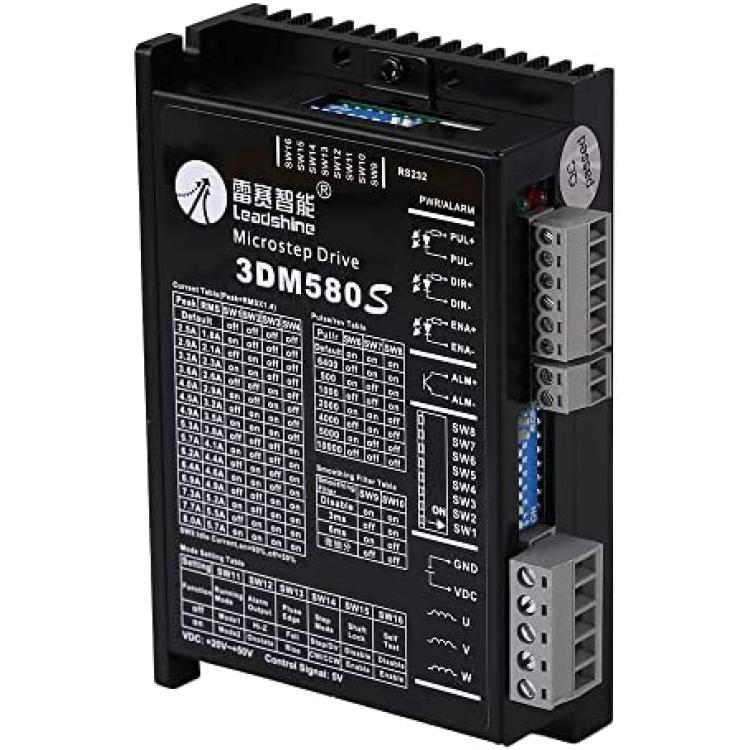

*3DM580(3 Phase Driver):Suitable Stepper Motors Nema23,34,42

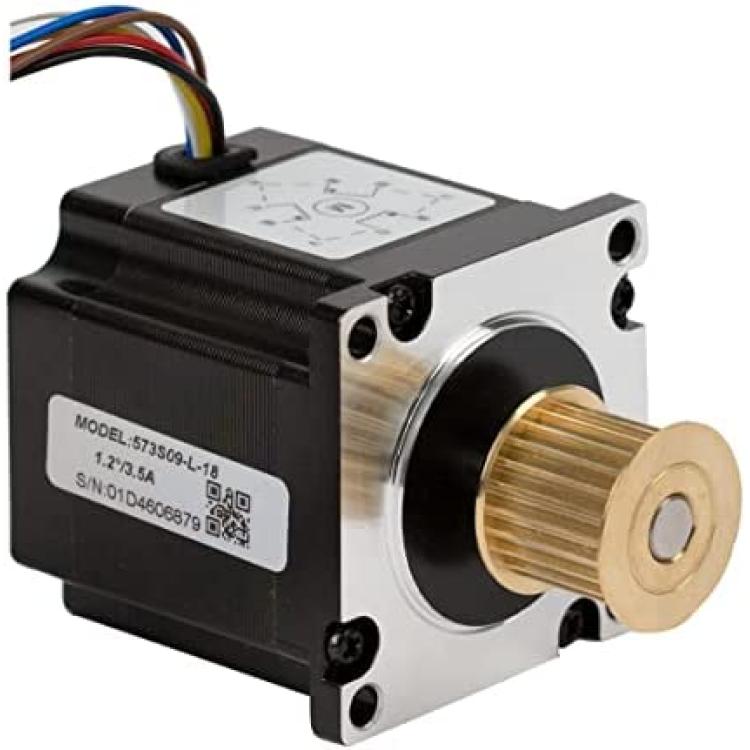

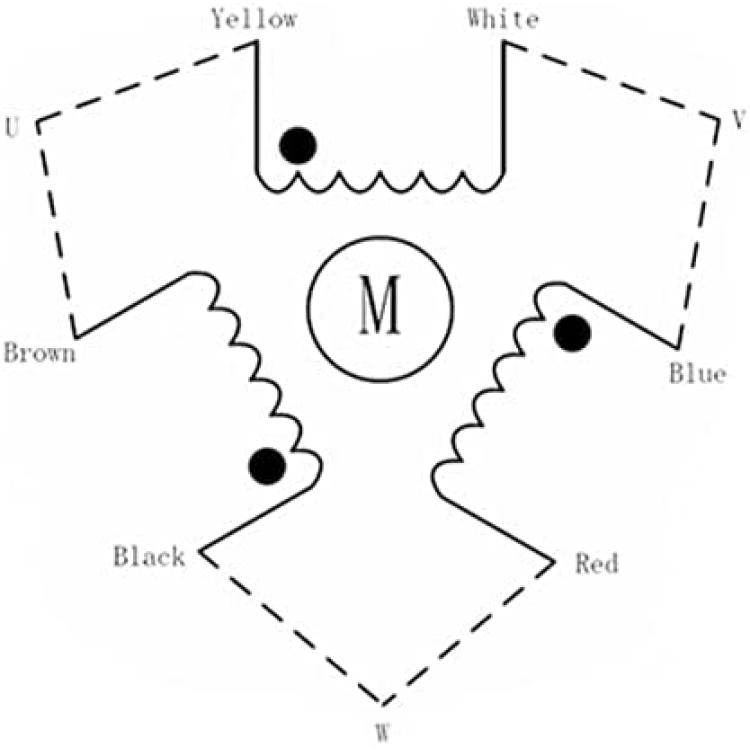

*573S09-L-18(3 Phase Stepper Motor-six wires): Step Angle 1.2°；Position Accuracy ±5%；Dielectrice Strength 500VAC 1Min
*573S09-L-18: Frame size Nema23 ,Holding Torque 0.9N.M; Current/phase 3.5A;Length 50mm(1.97);Shaft size 6.35mm(0.25)
*573S09-L-18 Match Drivers: 3DM580
Description
Phase : 3 phase Driver Supply Voltage: +18 ~ +50 VDC Suitable Stepper Motors: Nema 23,34,42 Suitable Stepper Motors: Nema 23,34,42573S09-L-18 Built with thigh quality materials including bearing and shaft made in JapaneseHigh precisiom ,low motor heating ,and low vibrationStandard Nema 23 Dimensions1PCS Driver 3DM5801PCS Stepper Motor 573S09-L-18
