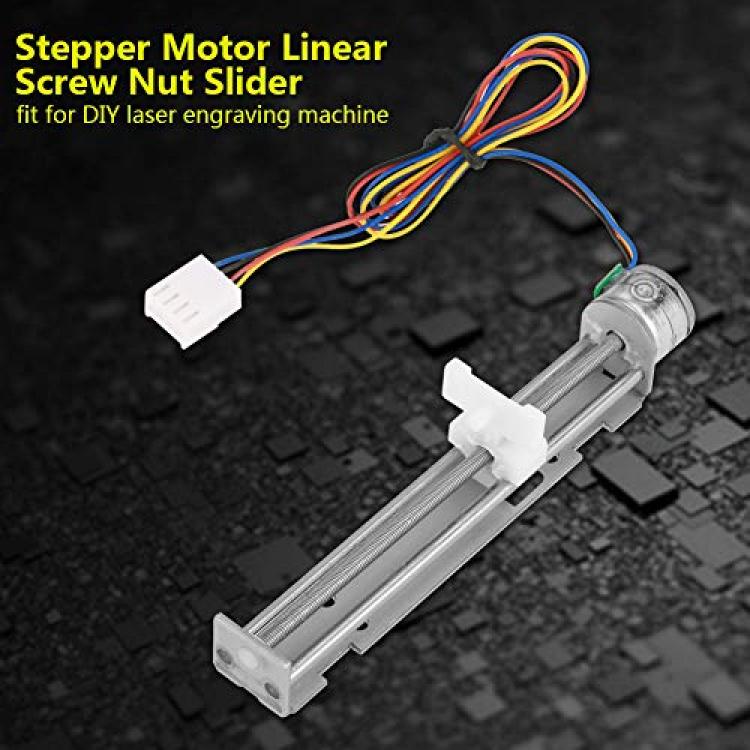

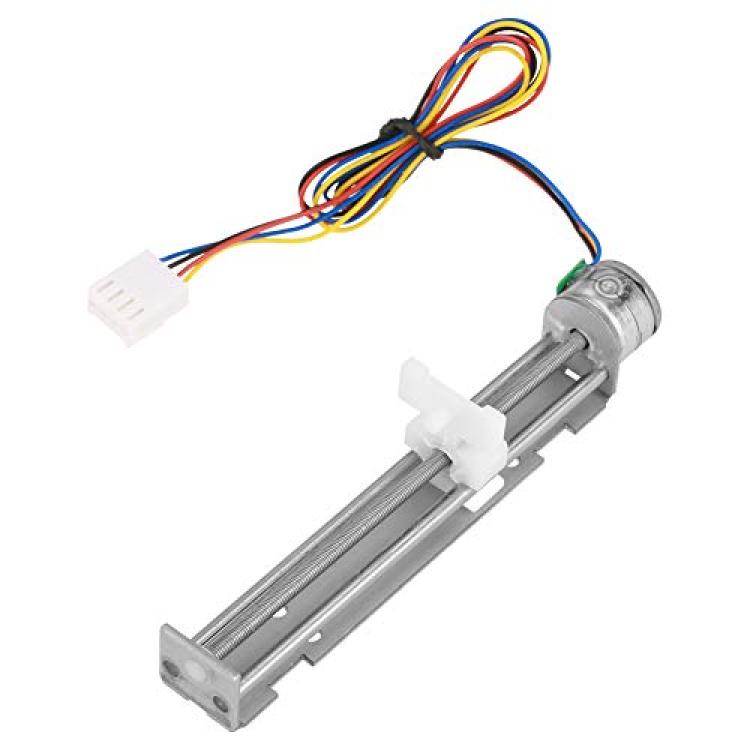

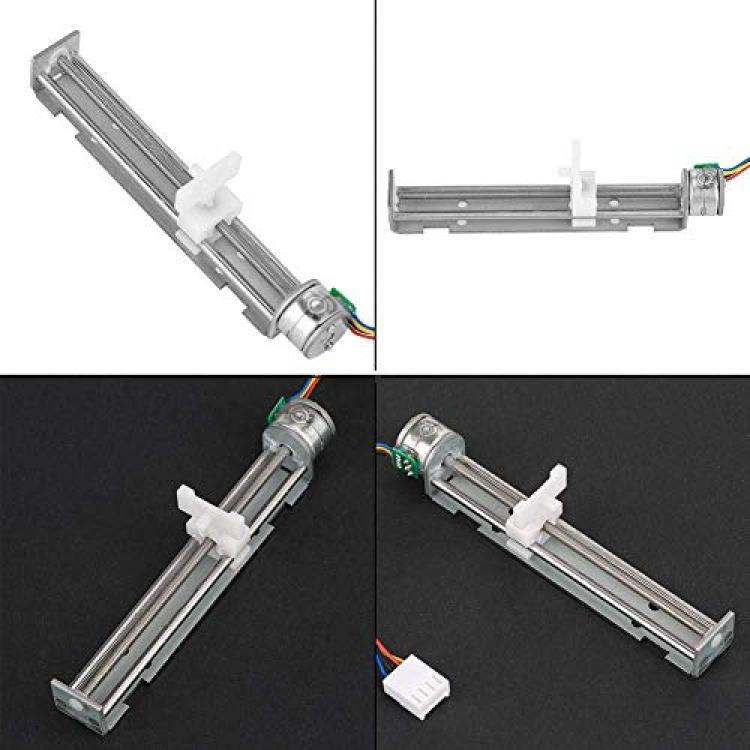

Stepper Motor, D8-MOTOR80 DC12V Moving 0.25mm One Step Stepper Motor with Linear Screw Nut Slider for DIY IR Engraving Machine,etc
Availability: Pre-Order, Inquiry Price
About this product
*♥ Fine design: This rail and linear block are small and light, especially suitable for small teams. The tool is simple and easy to use, strong and durable.
*♥ Microstep controller: The motor requires an A4988 controller (not included), it cannot be connected directly to the power supply. The maximum linear speed is 25 mm per second. Moving 0.25mm in one step allows you to use a microstep controller in case a smaller one is required.
*♥ Applications: widely used for automatic equipment, medical equipment, precision measuring instruments, engraving machines, other small linear slide devices, etc.
*♥ Technical data: line voltage 12V DC; Current per phase 800 ma / phase; Temperature 0 ~ + 55 ° C; 80mm block stroke.
*♥ Quality service: We attach great importance to our customers and make sure that customers get what they want. We love providing them with excellent customer service. If you have any questions, send us a message.
Description
Features:
100% brand new and high quality.
Moving 0.25mm for one step, can use microstep driver if need smaller.
The maximum linear speed is 25mm per second.
Widely used for small devices such as medical equipment, IR engraving machine, etc.
The motor need a A4988 driver(not included) to drive, can not directly connect to power.

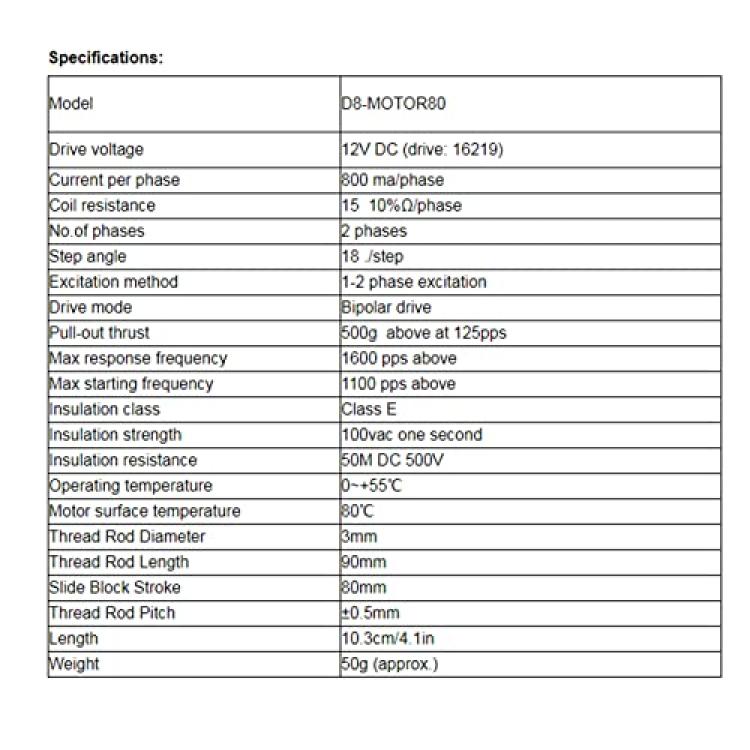

Specifications:

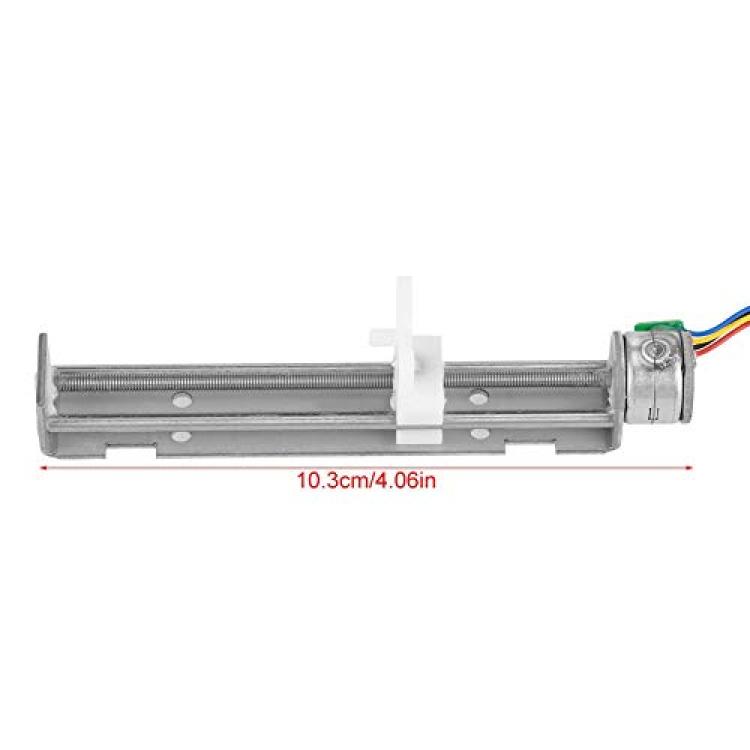

Model D8-MOTOR80 Drive voltage 12V DC (drive: 16219) Current per phase 800 ma/phase Coil resistance 15 10%?/phase No.of phases 2 phases Step angle 18 ./step Excitation method 1-2 phase excitation Drive mode Bipolar drive Pull-out thrust 500g  above at 125pps Max response frequency 1600 pps above Max starting frequency 1100 pps above Insulation class Class E Insulation strength 100vac one second Insulation resistance 50M DC 500V Operating temperature 0~+55 Motor surface temperature 80 Thread Rod Diameter 3mm Thread Rod Length 90mm Slide Block Stroke 80mm Thread Rod Pitch ±0.5mm Length 10.3cm/4.1in
Weight 50g (approx.)
Package Includes:
1 x Motor with Linear Slide
