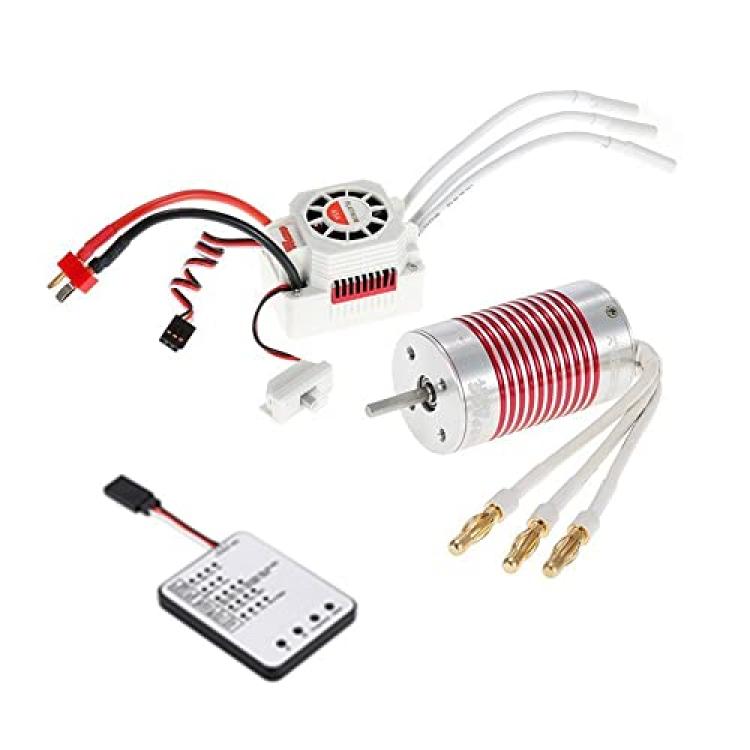

Surpass Hobby 2845 3800KV Waterproof Brushless Motor with 45A Brushless ESC and Program Card Combo for 1/14 1/12 RC Car

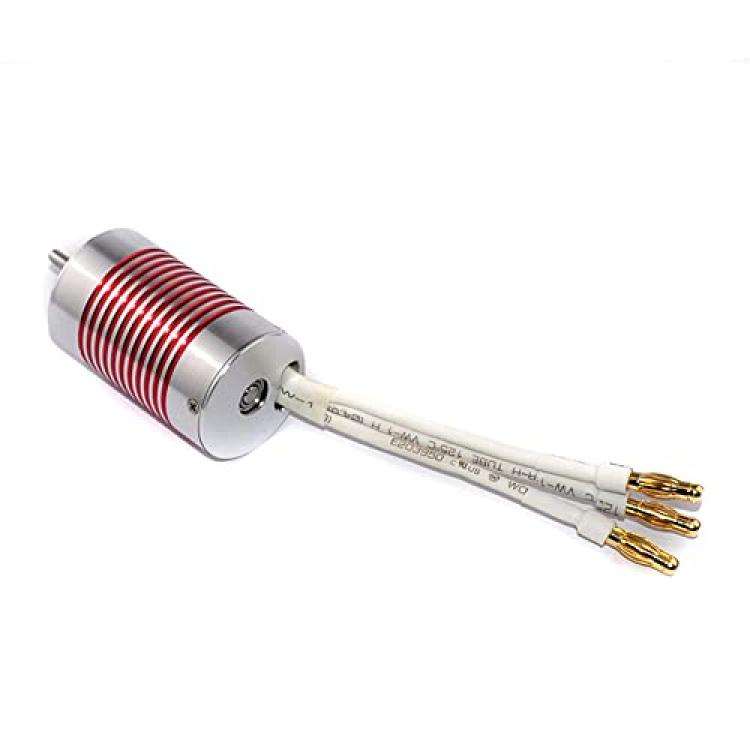

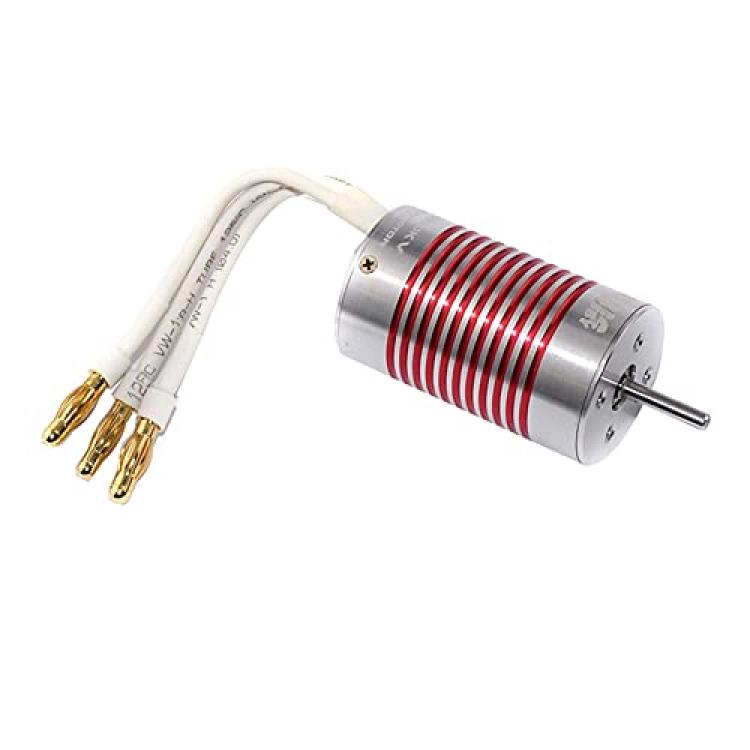

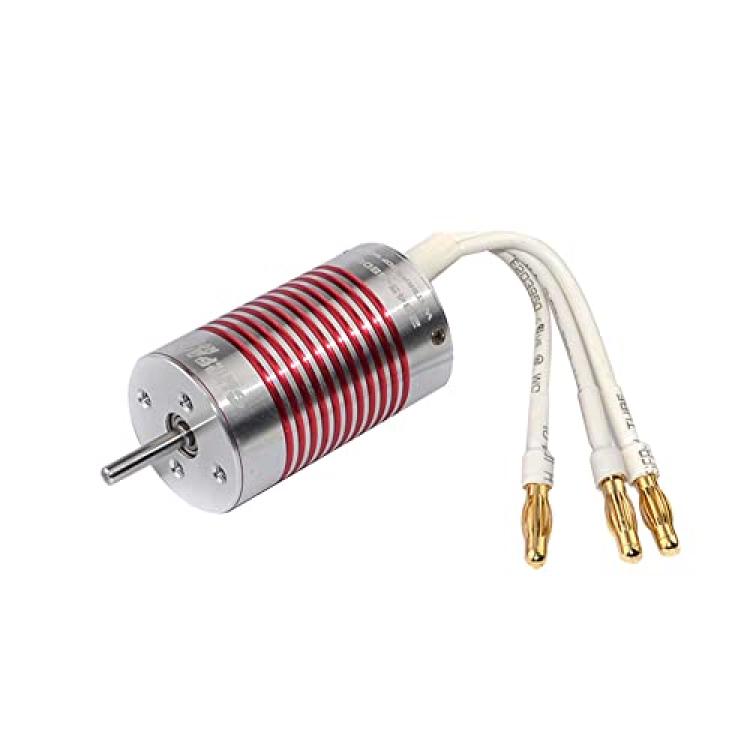

Motor Specifications:

Brand name: SURPASS HOBBY

Size: 2845

Watts: 800W

Max voltage: Max Amps: 57A

KV(RPM/Volt): 3800KV

Max RPM: 50000

Diameter: 28mm

Length: 47mm

Shaft length: 15mm

Shaft diameter: 3.175mm

Plug type: 4mm golden banana plug

Mounting Hole: M3

Weight: 117g

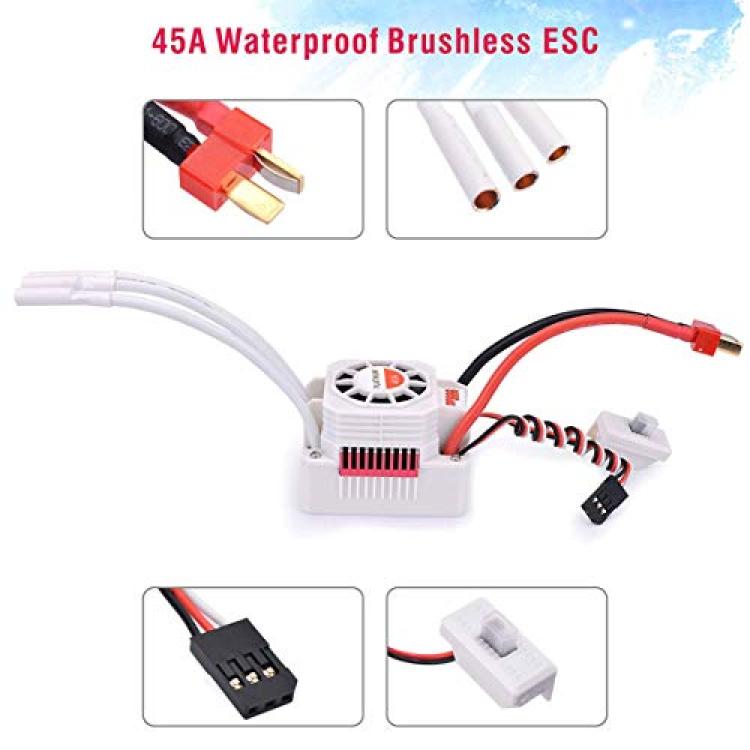

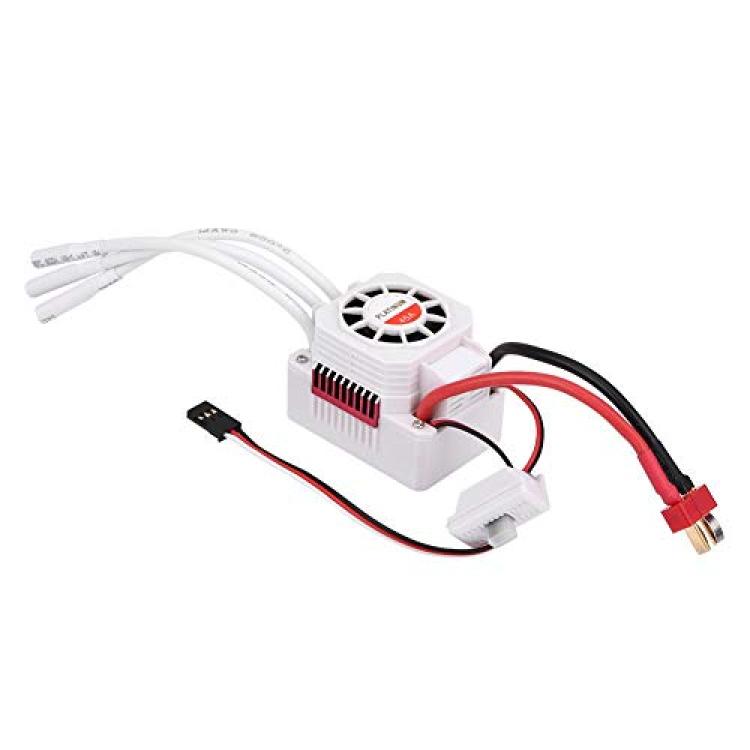

Electronic Speed Controller Specifications:

Cont. Current: 45A

Burst Current: 240A

Battery: 2-3 Cells Lipo / 4-9 Cells NiMh

BEC Output: 5.8V/3A (Switch Mode)

Power Supply Plugs: T Male

Motor Plugs: Female 4mm Bullet Connector

Motor Type

For 2s Lipo or 6 cells NiMH:

On-road: 3656-size or smaller motor with the KVOff-road / Buggy / Monster: 3656-size or smaller motor with the KVFor 3s Lipo or 9 cells NiMH:

On-road: 3656-size or smaller motor with the KVOff-road / Buggy / Monster: 3656-size or smaller motor with the

KVSize: 50.8 * 38.5 * 36.5mm

Weight: 91g / 3.2oz

Note:

1. Although this combo suitable for most 1/14 1/12 RC car/truck, please check the size especially the mounting holes of the motor before purchase.

2. The ESC is waterproof for slight water. Don't put the ESC into water for a long time which may cause the fan burns.

Package information:

Package size: 14 * 8.5 * 5cm/ 5.5 * 3.3 * 2.0in

Package weight: 255g/ 9.0oz

Program card Specifications:

Low voltadge cut off voltadge: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off

Start mode:Medium soft strong

Max brake force: 25%,50%,75%,100%,

Max reverse force: 25%,50%,75%,100%,

Neutral range: 6%,9%,12%,work state,

Weight:50g / 1.8oz

Package list:

1 * 2845 3800KV Waterproof Brushless Motor

1 * 45A Waterproof Brushless ESC

1 * Program card
