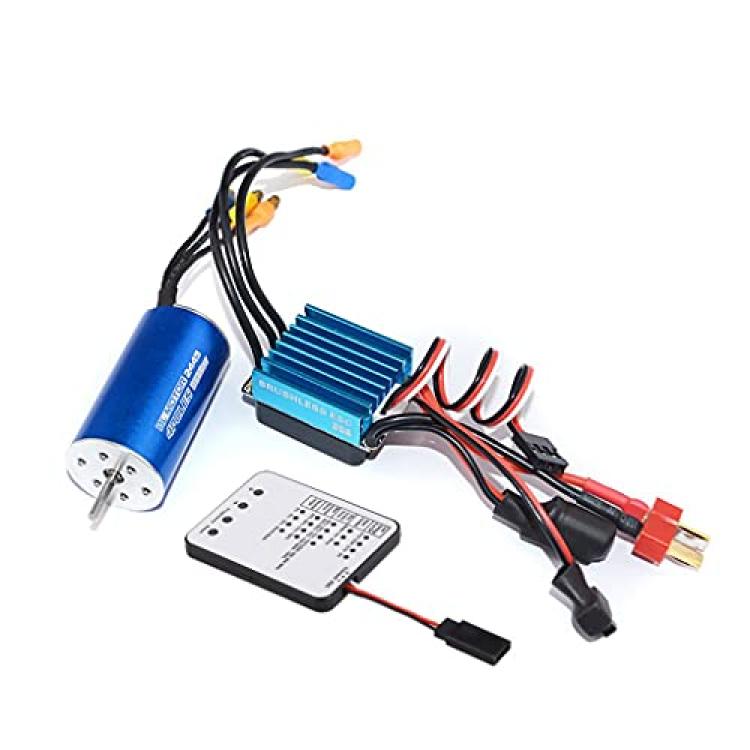

Surpass Hobby Blue 2445 3000KV Brushless Motor Shaft 2.3mm + Brushless 35A ESC + Programming Card for 1/16 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 12 Slot Hi-torque Motor Design ; CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency ; High RPM ABEC5 Oversized Bearings
*Universal fit,fits all 1/16th brushless cars-multi-mounting system for M2.5 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM ; Removable/Replaceable Rotor
*ESC: Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection
Description

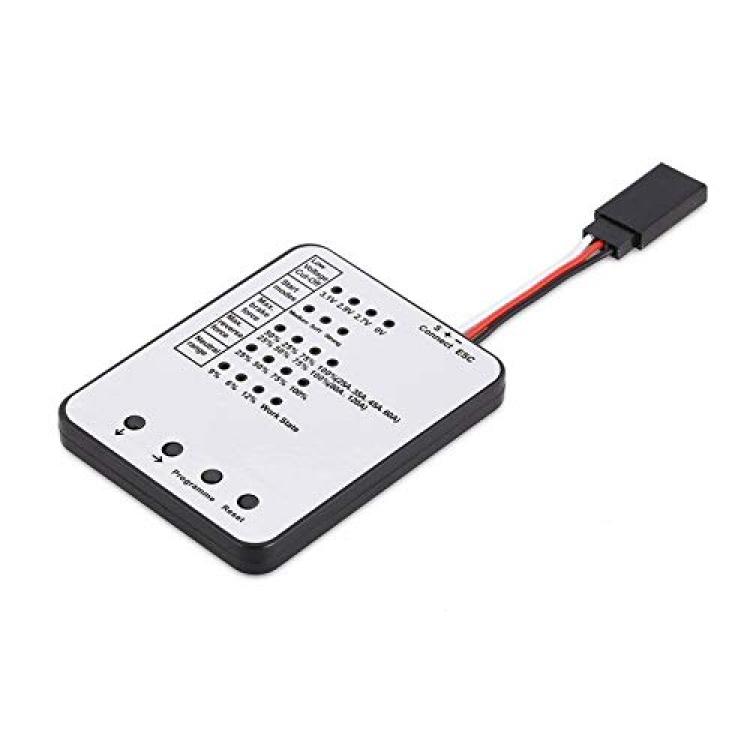

Motor Features: ? 4 Pole 12 Slot Hi-torque Motor Design ? CNC Machined 6061 T6 Billet Aluminum Heatsink Can ? High Purity Copper Windings Maximizes Efficiency ? High RPM ABEC5 Oversized Bearings ? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws ? Precision balanced rotor,smoothness for best reliability and maximum RPM ? Stator - Super Thin (0.35mm) Laminations ? Removable/Replaceable Rotor ? Precision Engineered for Maximum Energy Conversion Specifications: Brand:Surpass Hobby Model: 2445 Brushless Motor Watts:500 Rotor Poles:4 Max RPM:50000 Shaft:?2.3mm Length of extend shaft:12mm Connector:3.5mm gold Plated Motor Size:24*45mm N.W:72g Item: 2445 3000KV Max voltage:<14.8V Max Amps:32A IO:1.8A Resistance:0.0117 35A ESC: Constant current: 35A Burst current: 120A Power supply: 2-3S LiPo battery / 4-9S NiMh battery BEC: linear switch 5V 2A Suit for 1/14, 1/16, 1/18 RC Car Package List: 1 x 2445 Brushless Motor 1 x 35A Brushless ESC 1 x Programming Card 2 x User Manual
