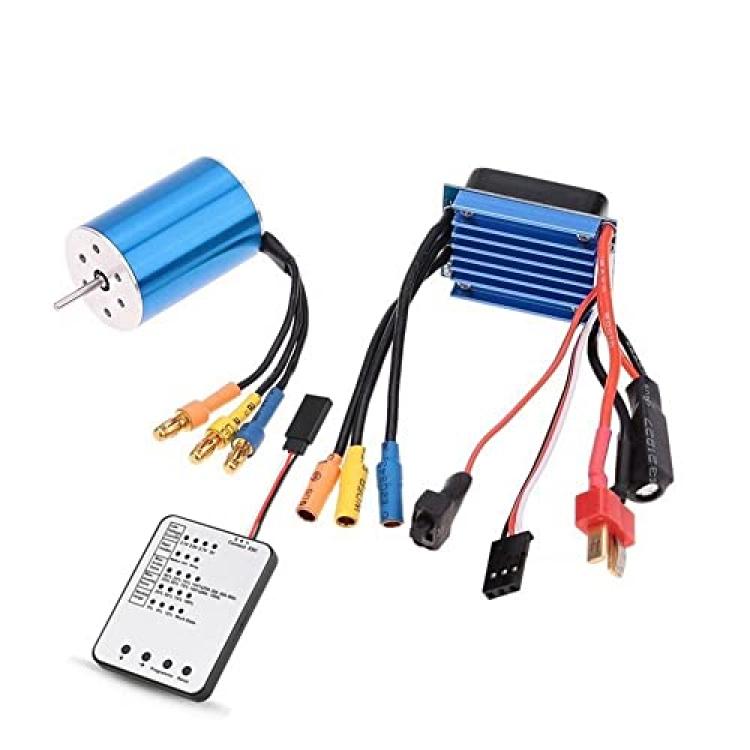

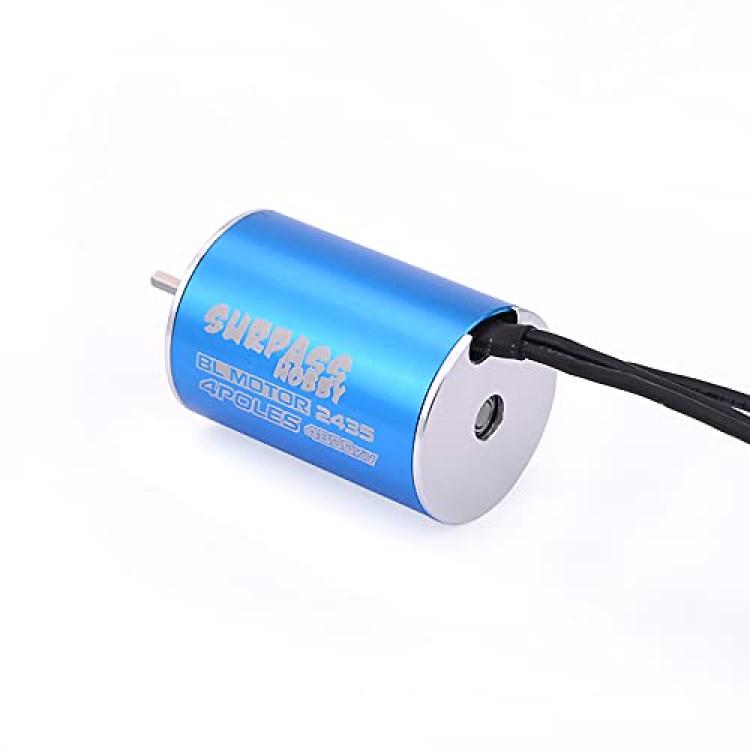

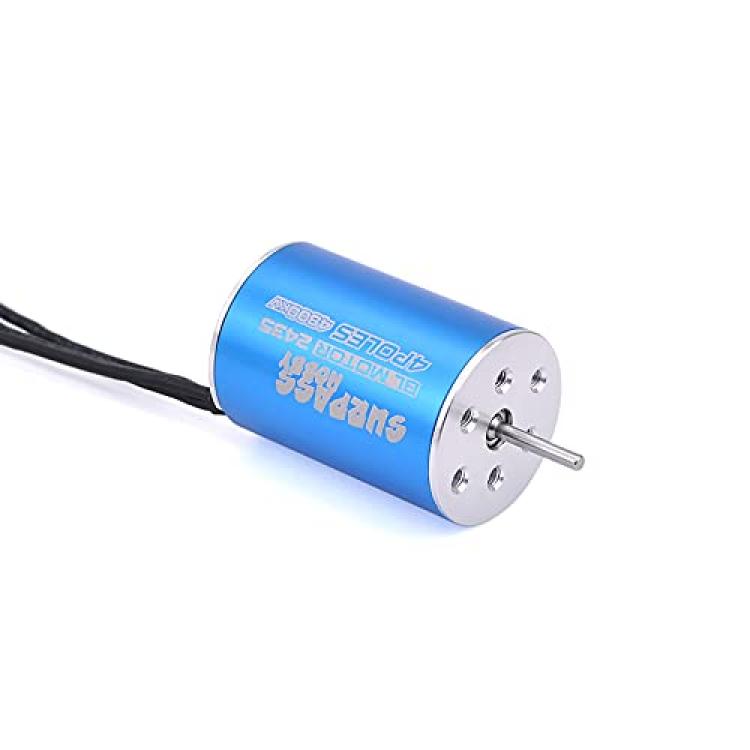

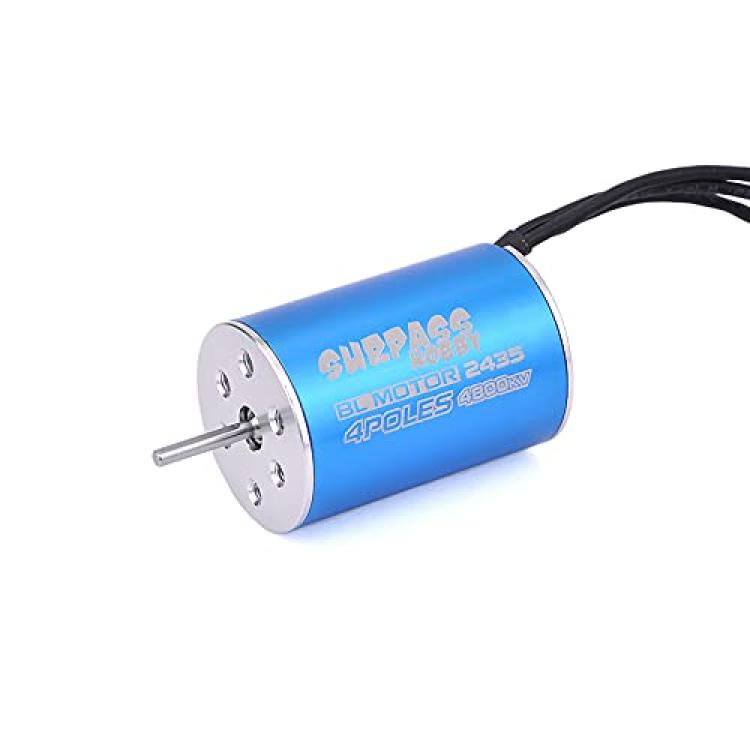

Surpass Hobby Blue 2435 4500KV Brushless Motor Shaft 2.0mm with Brushless 25A ESC and Program Card Combo for 1/16 1/18 RC Car

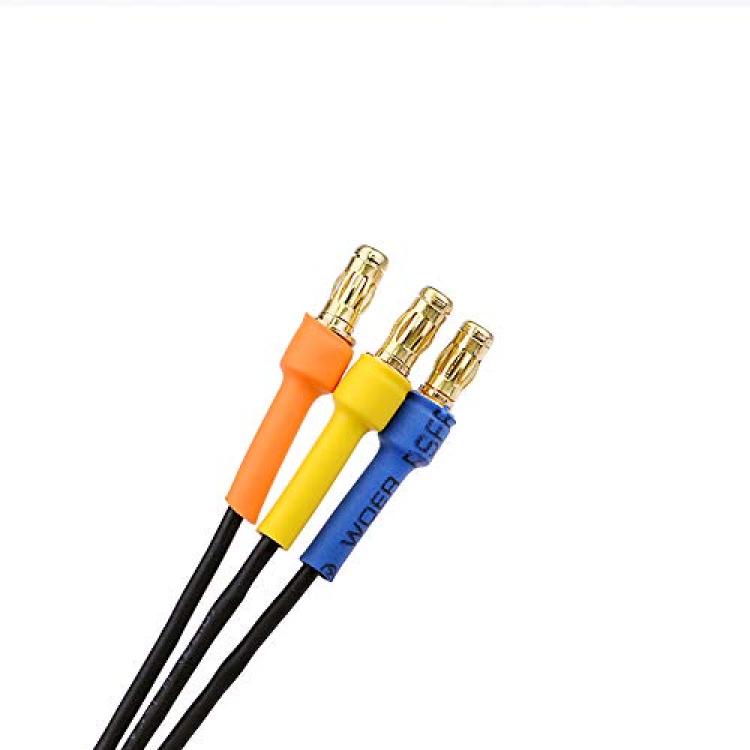

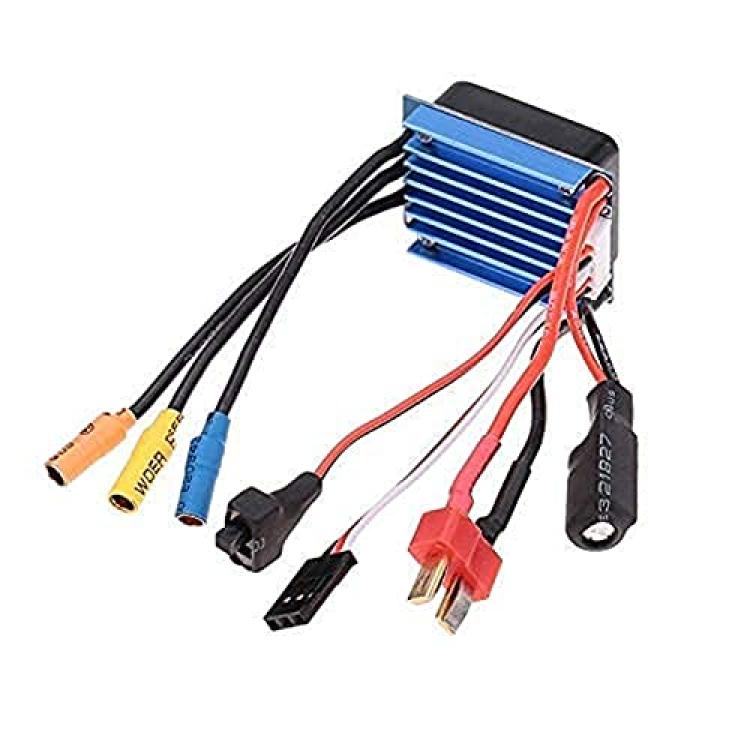

Features: ? 4 Pole 12 Slot Hi-torque Motor Design ? CNC Machined 6061 T6 Billet Aluminum Heatsink Can ? High Purity Copper Windings Maximizes Efficiency ? High RPM ABEC5 Oversized Bearings ? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws ? Precision balanced rotor,smoothness for best reliability and maximum RPM ? Stator - Super Thin (0.35mm) Laminations ? Removable/Replaceable Rotor ? Precision Engineered for Maximum Energy Conversion Motor Specification: Brand?SURPASS HOBBY Product: 2435-4500KV Watts: 300 Max voltage: <13.2V Max Amps: 22A Rotor Poles: 4 IO: 1.7A Resistance: 0.0122 KV(RPM/Volt): 4500 Max RPM: 60000 Length: 35mm Diameters: 24mm Weight: 63g Shaft: 2.0mm Length of extend shaft: 12mm Connector: 3.5mm gold Sensorless Brushless Speed Controller for Car ESC Specifications: Model: 25A Cont.Current/Burst Current: 25A/100A Motor Type: Sensorless Brushless Motor Suitable Car: 1/18, 1/16 car Suitable Brushless Motor: ?12T Resistance: 0.004ohm Battery: 2 cells Lipo,4-6 cells NiMH BEC Output: 5V/2A(analog mode) Dimension: 25*30*14.5mm Program Card: Low voltadge cut off voltadge: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off Start mode?Medium soft strong Max brake force: 25%,50%,75%,100%, Max reverse force: 25%,50%,75%,100%, Neutral range: 6%,9%,12%,work state, Package size: 10 * 8 * 8 cm / 4 * 3.2 * 3.2 in Package weight: 93 g / 3.3 oz Package List: 1 x Motor 1 x 25A ESC 1 x Program Card
